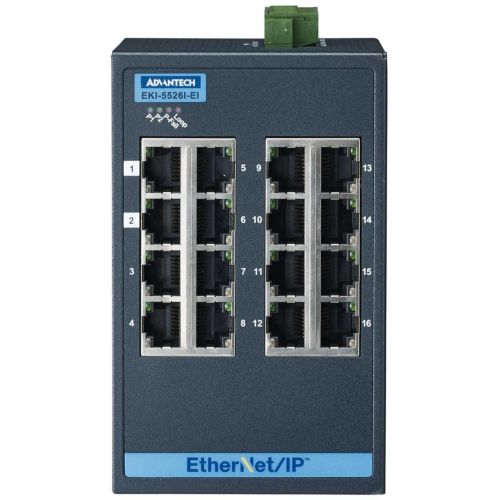

EKI-5526I-EI-AE
16-port 10/100Mbps Industrial Managed Ethernet Switch Supporting EtherNet/IP, -40 to 75°C operating temperature
Features
- 16 ports Fast Ethernet RJ-45 (EKI-5526/I-EI) & 8 ports Fast Ethernet RJ-45 (EKI-5528/I-EI)
- Entry-Level Managed Switch
- IXM function enables fast deployment
- Provides EtherNet/IP EDS (Electronic Data Sheet) file, AOI (Add-On Instructions) file, and FactoryTalk® View faceplate
- Management: SNMP v1/v2c/v3, WEB, Standard MIB, Private MIB
Introduction
The EKI-5526/I-EI and EKI-5528/I-EI are a new generation of entry-level managed switch products. They support the EtherNet/IP protocol to communicate with Ethernet/IP based
PLCs. Advantech also provides the FactoryTalk® View compliant faceplate, so users can easily integrate the switch with Allen-Bradley® PLCs. "Electronic Data Sheet" (EDS files) are
also available for users to customize faceplate. The devices come with a compact metal housing that is IP30 rated to protect against dusty industrial environments. The wide power
input power (8.4 to 52.8 VDC) is dedicated to operating in areas of unstable power and rugged environments.
Specifications
Communications
Standard:
IEEE 802.3, 802.3u, 802.3x, 802.1D,
802.1w,802.1p, 802.1Q, 802.1X,
802.3AD,802.3az
LAN: 10/100Base-T (X),
Transmission Distance: Ethernet: Up to 100 m
Transmission Speed: Ethernet 10/100 Mbps Auto-Negotiation
Interface
I/O Port: 16 x RJ-45
Power Connector 6-pin screw Terminal Block (including relay)
Physical
Enclosure: Metal Shell
Protection Class: IP 30
Installation: DIN-Rail
Dimensions (W x H x D): 74 x 120 x 84 mm
LED Display
System LED: PWR1, PWR2, P-Fail, Loop detection
Port LED: Link / Speed / Activity
Environment
Operating Temperature: -40 ~ 75°C (-40 ~ 167°F)
Storage Temperature: -40 ~ 85°C
Ambient Relative Humidity: 10 ~ 95% (non-condensing)
Humidity: 10 ~ 95% (non-condensing)
MTBF: 2,788,343 hours
Power
Power Consumption: Max. 8 W
Power Input: 12 ~ 48 VDC (8.4~52.8 VDC), redundant dual power input
Fault Output: 1 Relay Output
Certification
EMI: CE, FCC Class A
Safety: UL508, Class 1 Division 2, ATEX
EMC: EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-8
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
