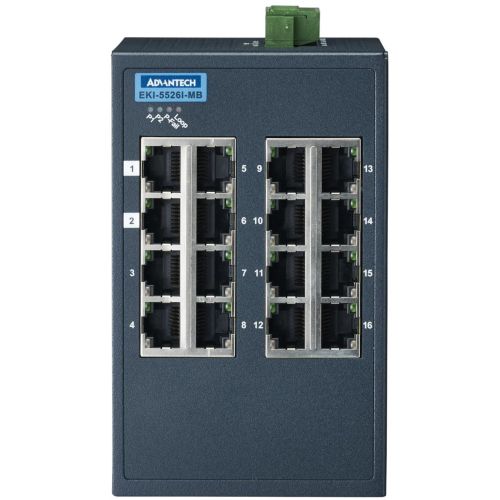

EKI-5526I-MB-AE
16-port 10/100Mbps Industrial Managed Ethernet Switch Supporting Modbus/TCP, -40 to 75°C operating temperature
Protocols
Features
- 16 ports Fast Ethernet RJ-45 (EKI-5526/I-MB) & 8 ports Fast Ethernet RJ-45 (EKI-5528/I-MB)
- Entry-Level Managed Switch
- IXM function enables fast deployment
- Management: SNMP v1/v2c/v3, WEB, Standard MIB, Private MIB
Introduction
The EKI-5526/I-MB and EKI-5528/I-MB are a new generation of entry-level managed switch products. They support basic Layer 2 managed function such as Ring, SNMP, IGMP
etc. Besides, they support Modbus/TCP and can easily integrate with SCADA. The devices come with a compact metal housing that is IP30 rated to protect against dusty industrial
environments. The wide power input power (8.4 to 52.8 VDC) is dedicated to operating in areas of unstable power and rugged environments.
Specifications
Communications
Standard:
IEEE 802.3, 802.3u, 802.3x, 802.1D,
802.1w,802.1p, 802.1Q, 802.1X,
802.3AD,802.3az
LAN: 10/100Base-T (X),
Transmission Distance: Ethernet: Up to 100 m
Transmission Speed: Ethernet 10/100 Mbps Auto-Negotiation
Interface
I/O Port: 16 x RJ-45
Power Connector 6-pin screw Terminal Block (including relay)
Physical
Enclosure Metal Shell
Protection Class IP 30
Installation DIN-Rail
Dimensions (W x H x D): 74 x 120 x 84 mm
LED Display
System LED PWR1, PWR2, P-Fail, Loop / Status
Port LED Link / Speed / Activity
Environment
Operating Temperature: -40 ~ 75°C (-40 ~ 167°F)
Storage Temperature: -40 ~ 85°C
Ambient: Relative Humidity 10 ~ 95% (non-condensing)
Humidity: 10 ~ 95% (non-condensing)
MTBF: 2,788,343 hours
Power
Power Consumption: Max. 8 W
Power Input 12 ~ 48 VDC (8.4~52.8 VDC), redundant dual power input
Fault Output 1 Relay Output
Certification
EMI: CE, FCC Class A
Safety: UL508, Class 1 Division 2, ATEX
EMC: EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-8
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
