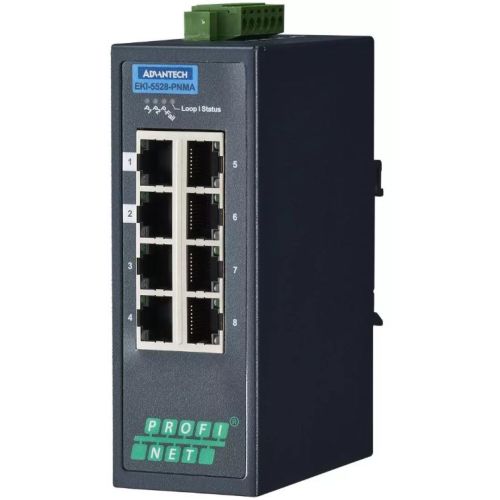

EKI-5528-PNMA-AE
8-port 10/100Mbps Industrial Managed Ethernet Switch Supporting PROFINET MRP Master, -10 to 60°C operating temperature
Protocols

Features
- 8 ports Fast Ethernet RJ-45
- Entry-Level Managed Switch
- IXM function enables fast deployment
- Provides GSDML files
- Management: SNMP v1/v2c/v3, WEB, Standard MIB, Private MIB
- Supports Media Redundancy Protocol (MRP Master)
Introduction
The EKI-5528-PNMA is a new generation of entry-level managed switch products. They support media redundancy protocol master and meet the PROFINET real time standard. The
devices come with a compact metal housing that is IP30 rated to protect against dusty industrial environments. The wide power input power (8.4 to 52.8 VDC) is dedicated to operating
in areas of unstable power and rugged environments.
Specifications
Communications
Standard:
IEEE 802.3, 802.3u, 802.3x, 802.1D,
802.1w,802.1p, 802.1Q, 802.1X,
802.3AD,802.3az
LAN 10/100Base-T (X),
Transmission Distance: Ethernet: Up to 100 m
Transmission Speed: Ethernet 10/100 Mbps Auto-Negotiation
Interface
I/O Port: 8 x RJ-45
Power Connector: 6-pin screw Terminal Block (including relay)
Physical
Enclosure: Metal Shell
Protection Class: IP 30
Installation: DIN-Rail
Dimensions (W x H x D): 43 x 120 x 84 mm
LED Display
System LED: PWR1, PWR2, P-Fail, Loop / Status
Port LED: Link / Speed / Activity
Environment
Operating Temperature: -10 ~ 60°C (14 ~ 140°F)
Storage Temperature: -40 ~ 85°C
Ambient Relative Humidity: 10 ~ 95% (non-condensing)
Humidity: 10 ~ 95% (non-condensing)
MTBF: 4,176,861 hours
Power
Power Consumption: Max. 5.2 W
Power Input: 12 ~ 48 VDC (8.4~52.8 VDC), redundant dual power input
Fault Output: 1 Relay Output
Certification
EMI: CE, FCC Class A
Safety: UL508, Class 1 Division 2, ATEX
EMC: EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-8
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
