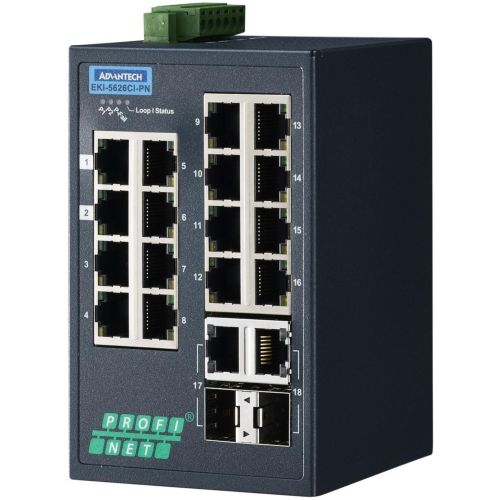

EKI-5626CI-PN-AE ADVANTECH DIN Rail managed switches

Features

• 16 Fast Ethernet ports + 2 Gigabit Copper/SFP combo ports Entry-Level Managed Switch
• Provides wide operating voltage 8.4~52.8 VDC
• C1D2 and ATEX certified for horizontal area
• IXM function enables fast deployment
• PROFINET or EtherNet/IP or Modbus/TCP Enabled by default
• Supports X-Ring for ultra high-speed recovery time less than 20ms

Introduction

Advantech's Entry Level Managed Switches Series are the best deal offer for your Ethernet connections. Advantech's Entry Level Managed Switches Series support the most useful
management functions, such as IEEE 802.1Q VLAN, port mirroring, Redundancy, Storm Control, IP Multicast, and provide SNMP v1/v2c, WEB GUI, Standard MIB, Private MIB for
access. Advantech's Entry Level Managed Switches Series are also easy and fast deployment from Advantech IXM technology and is compatible with EKI-7700 managed switch
series. Advantech's Entry Level Managed Switches Series allow users to expand their industrial network quickly and efficiently, while their rugged industrial-grade design assures
reliability and stability.

Specifications

Communications

Standard: IEEE 802.3, 802.3u, 802.3x, 802.1D, 802.1w,802.1p, 802.1Q, 802.1X, 802.3AD,802.3az
LAN: 10/100Base-T (X), 10/100/1000Base-T(X)
Transmission Distance: Ethernet: Up to 100 m
Transmission Speed Ethernet: 10/100 Mbps Auto-Negotiation

Interface

I/O Port: 16 x RJ-45 + 2 x RJ-45/SFP combo ports
Power Connector: 6-pin screw Terminal Block (including relay)

LED Indicators

System LED: PWR1, PWR2, P-Fail, Loop detection
Port LED: Link / Speed / Activity

Switch Properties

MAC Table Size: 8K
Packet Buffer Size: TBD
Switch Capacity: 7.2Gbps
Jumbo Frame: 9216 Bytes

Physical

Enclosure: Metal Shell
Protection Class: IP 30
Installation: DIN-Rail
Dimensions (W x H x D): 74 x 120 x 84 mm
Weight: 0.8kg

Environment

Operating Temperature: -40 ~ 75°C (-40 ~ 167°F)
Storage Temperature: -40 ~ 85°C
Humidity: 10 ~ 95% (non-condensing)
MTBF: 2,825,281 hours

Power

Power Consumption: 8.2W
Power Input: 12 ~ 48 VDC, redundant dual power input
Operating Voltage: 8.4~52.8VDC
Overload Current Protection: Present
Revise Polarity Protection: Present

Certification

EMI: CE, FCC Class A
Safety: UL508
EMC: EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-8
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Hazardous Location: Class 1 Division 2, ATEX
