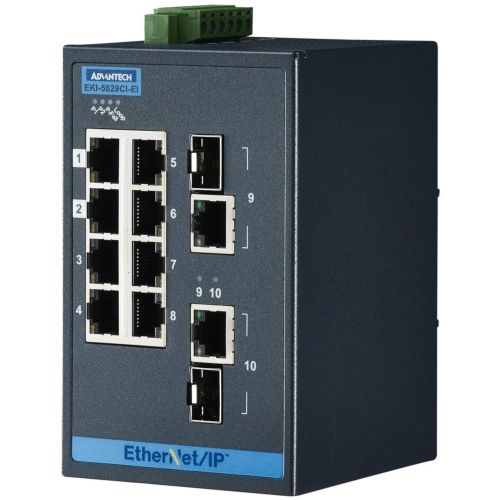

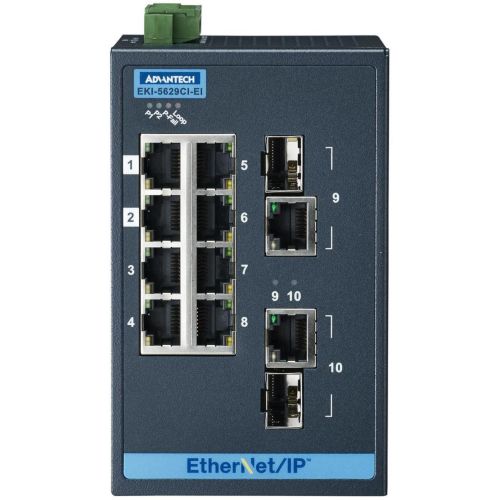

EKI-5629CI-EI-AE ADVANTECH DIN Rail managed switches



8 Fast Ethernet ports + 2 Gigabit combo ports Industrial Managed Ethernet Swicth support EtherNet/IP, -40 ~ 75 °C Operating Temperature


Prezzo per pezzo

€ 695,75

(IVA esclusa)

€ 848,82 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 848,82

Disponibilità: 10 gg lav


SKU: 117245

Model: EKI-5629CI-EI-AE

Line: 1G

Bisogno di aiuto?


  • 8 Fast Ethernet ports + 2 Gigabit Copper/SFP combo ports Entry-Level Managed Switch
  • Provides wide operating voltage 8.4~52.8 VDC
  • C1D2 and ATEX certified for horizontal area
  • IXM function enables fast deployment
  • PROFINET or EtherNet/IP or Modbus/TCP Enabled by default
  • Supports X-Ring for ultra high-speed recovery time less than 20ms


Advantech's Entry Level Managed Switches Series are the best deal offer for your Ethernet connections. Advantech's Entry Level Managed Switches Series support the most useful
management functions, such as IEEE 802.1Q VLAN, port mirroring, Redundancy, Storm Control, IP Multicast, and provide SNMP v1/v2c, WEB GUI, Standard MIB, Private MIB for
access. Advantech's Entry Level Managed Switches Series are also easy and fast deployment from Advantech IXM technology and is compatible with EKI-7700 managed switch
series. Advantech's Entry Level Managed Switches Series allow users to expand their industrial network quickly and efficiently, while their rugged industrial-grade design assures
reliability and stability.



Standard: IEEE 802.3, 802.3u, 802.3x, 802.1D, 802.1w,802.1p, 802.1Q, 802.1X, 802.3AD,802.3az
LAN: 10/100Base-T (X), 10/100/1000Base-T(X)
Transmission Distance: Ethernet: Up to 100 m
Transmission Speed Ethernet: 10/100 Mbps Auto-Negotiation


I/O Port: 8 x RJ-45 + 2 x RJ-45/SFP combo ports
Power Connector: 6-pin screw Terminal Block (including relay)

LED Indicators

System LED: PWR1, PWR2, P-Fail, Loop detection
Port LED: Link / Speed / Activity

Switch Properties

MAC Table Size: 8K
Packet Buffer Size: TBD
Switch Capacity:5.6Gbps
Jumbo Frame: 9216 Bytes


Enclosure: Metal Shell
Protection Class: IP 30
Installation: DIN-Rail
Dimensions (W x H x D): 74 x 120 x 84 mm:
Weight: 0.8kg


Operating Temperature: -40 ~ 75°C (-40 ~ 167°F)
Storage Temperature: -40 ~ 85°C
Humidity: 10 ~ 95% (non-condensing)
MTBF: 3,183,604 hours


Power Consumption: 5.8W
Power Input: 12 ~ 48 VDC, redundant dual power input
Operating Voltage: 8.4~52.8VDC
Overload Current Protection: Present
Revise Polarity Protection: Present


EMI: CE, FCC Class A
Safety: UL508
EMC: EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-8
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Hazardous Location: Class 1 Division 2, ATEX
