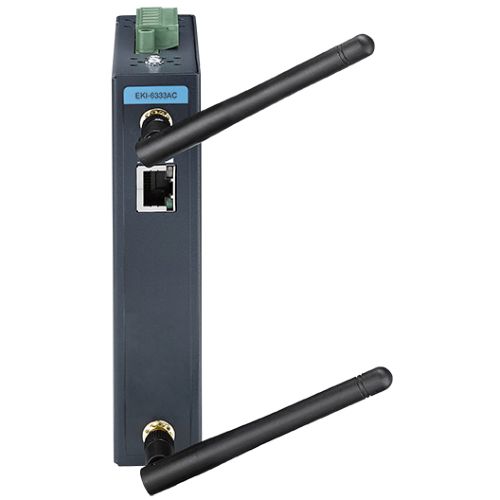

EKI-6333AC-EU-A ADVANTECH Industrial wireless ap



IEEE 802.11 a/b/g/n/ac Wi-Fi AP EU


Prezzo per pezzo

€ 423,35

(IVA esclusa)

€ 516,49 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 516,49

Disponibilità: 10 gg lav


SKU: 117303

Model: EKI-6333AC-EU-A

Bisogno di aiuto?


  • Support 802.11n MIMO 2T2R
  • WLAN transmission rate up to 867 Mbps
  • Supports secure access with WEP, 802.1x, WPA/WPA2-Personal, WPA/WPA2-Enterprise
  • Provides Web-based configuration
  • Support Dual band 2.4G/5G selective


The EKI-6333AC is a feature rich wireless AP with din-rail type design which provides a reliable wireless connectivity for industrial environments. As an 802.11n compliant device,
EKI-6333AC provides 6 times higher data rates than legacy 802.11g devices.
With the support of WMM, EKI-6333AC effectively improves the reliability of wireless connectivity, especially in applications that need high reliability and high throughput data
transmission. To secure wireless connections, EKI-6333AC implements the latest encryption technologies including WPA2/WPA/802.1x for powerful security authentication.


Ethernet Communications

Port Type: RJ45
No. of Ports: 1
Speed: 10/100/1000 Mbps

Wireless LAN Communications

Compatibility: IEEE 802.11a/b/g/n/ac
Speed: Up to 867Mbps
Network Mode: Infrastructure
Antenna Connector: Reverse SMA
No. of Antenna: 2 (supports 2T2R)
Free Space Range: Open space 100 m
Wireless Security: WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise


OS Support: 32-bit/64-bit Windows XP/Vista/7/8/8.1/10, Windows Server 2003/2008/2008 R2/2012/2012 R2 and Linux
Operation Modes: Access Point mode
Configuration: Web Browser
Protocol: ARP, ICMP, IPv4, TCP, UDP, DHCP Client, DNS, HTTP, NTP


Enclosure: Metal shell with solid mounting kits
Mounting: DIN-rail, Wall
Dimensions (W x H x D): 30 x 140 x 95 mm (1.18" x 5.51" x 3.74")
Weight: 0.5 Kg


LED Indicators:
System: Power, System Status
WLAN: Quality, Link/Active
LAN: Link/Active
Reboot Trigger: Built-in WDT (watchdog timer)

Power Requirements

Power Input: 12 ~ 48 VDC, redundant dual inputs
Power Connector: Terminal block
Power Consumption: 8W


Operating Temperature: -40 ~ 75°C (-40 ~ 166°F)
Storage Temperature: -40 ~ 80°C (-40 ~ 176°F)
Operating Humidity: 10 ~ 95% RH
