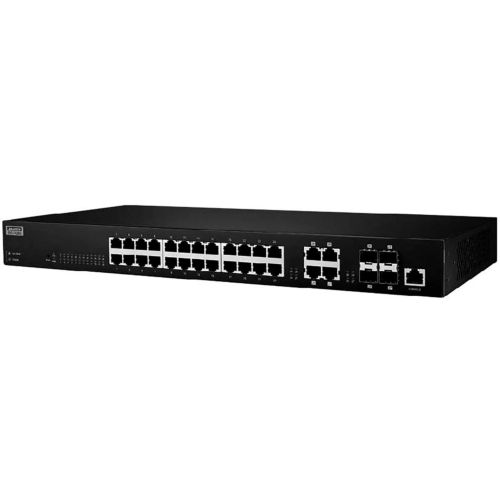

EKI-7428G-4CA-AE ADVANTECH Rackmount Ethernet Switches

Features

• 24 x Gigabit ports + 4 x Gigabit Copper/SFP combo ports
• SFP socket for Easy and Flexible Fiber Expansion
• Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
• IXM function enables fast deployment
• Security:802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption),HTTPS,SSHand SNMPv3
• Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D),MSTP
• Support Security Pack to against internal and external cyber threats

Introduction

The EKI-7428G-4CA is an layer 2 full managed switch including 24 Gigabit ports and 4 Gigabit combo ports. It is designed for rack-mount installation with 1U 19" design and suitable
for edge to core networks. It integrates Layer 2 switching software, which is optimized for scale and performance, delivering wire speed across all ports up to 56 Gbps for layer 2
traffic forwarding. It is also embedded with Advantech exclusive features like IXM and Security Pack, which benefits users by giving them fast deployment and protect their network
and network nods, and can dramatically save engineer's time and costs.

Specifications

Communications

Standard: IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1X, 802.3ad, 802.3ab
LAN: 10/100/1000Base-T (X), Optional 100Base-FX, 1000Base-SX/LX/LHX/XD/ZX/EZX
Transmission Distance:
Ethernet: Up to 100 m (4- wire Cat.5e, Cat.6 RJ45 cable suggested for Gigabit port)
SFP: Up to 110 km (depends on SFP)

Transmission Speed:
Gigabit Copper: 10/100/1000 Mbps, Auto-Negotiation
Gigabit Fiber: Up to 1000 Mbps

Interface

Connectors:
24 x RJ45 (Ethernet)
4 x RJ45/SFP (mini-GBIC) combo ports

LED Indicators:
Powre/System
1 ~ 24 RJ45 Ports: Link/Activity
25 ~ 28 Combo Ports: Link/Activity

Console: RS-232 (RJ45)

Network Management

Configuration: Web browser, Telnet, Serial console, TFTP, SNMPv1/ v2c/v3, Port Speed/Duplex Configuration, IPv6
VLAN: IEEE 802.1Q, GVRP, Port-based VLAN
Redundancy: Advantech X-Ring, 802.1w/1D/1s RSTP/STP/MSTP
Security: IP Security, SSH, SSL, SNMPV3, HTTPS, IP Source Guard, DHCP Snooping, ARP Spoofing Prevention, 802.1X, TACACS+, Access Control List
Traffic Control: IGMP Snooping/Query for multicast group management, Port Trunking, Static/802.3ad, LACP Rate limit and storm control, IEEE 802.1p QoS CoS/TOS/ DSCP priority queuing, IEEE 802.3x flow control
Diagnostics: Port Mirroring, Real-time traffic statistic, MAC Address Table, SNTP, Syslog, E-Mail Alert, SNMP Trap, RMON

Mechanism

Enclosure: IP30, metal shell with solid mounting kits
Dimensions (W x H x D): 441x 44 x 196 mm(17.36" x 1.73" x 7.72")
Mounting: 1U 19" Rack mount

Power

Power Input 100 ~ 240VAC, 50/60Hz, 3A

Environment

Operating Temperature: 0 ~ 60°C ( 32 ~ 140°F )
Storage Temperature: -40 ~ 70°C ( -40 ~ 158°F )
Operating Humidity: 10 ~ 90% (non-condensing)
Storage Humidity: 5 ~ 90% (non-condensing)

Certification

Safety: LVD EN 62368-1:2014 + A11:2017
EMI: CE FCC EN55032 Class A
EMS: EN 61000-3-2
EN 61000-3-3
EN 55024
