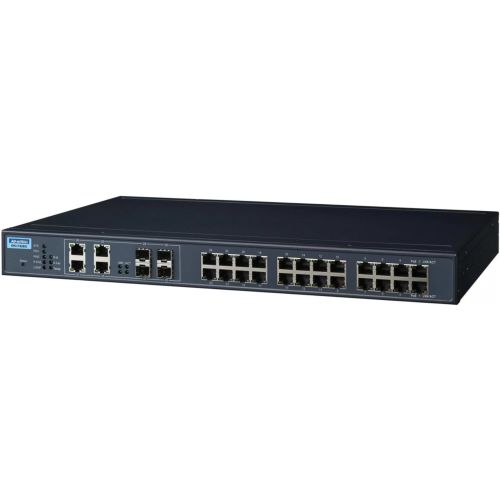

EKI-7428G-4CPI-AE ADVANTECH Rackmount Ethernet Switches

Features

• 24 x IEEE 802.3 af/at PoE Gigabit ports + 4 x Gigabit Copper/SFP combo ports, provide up to 30Watts per port
• SFP socket for Easy and Flexible Fiber Expansion
• Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
• IXM function enables fast deployment
• Security:802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption),HTTPS,SSH and SNMPv3
• Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D),MSTP
• 48VDC power input (46-57 VDC for POE af , 53 -57 VDC is recommended for at) and 2 relay output
• -40 ~ 70°C wide-range operating temperature
• Support Security Pack to against internal and external cyber threats

Introduction

The EKI-7428G is an industrial-class layer 2 full managed switch including 24 Gigabit ports and 4 Gigabit combo ports. It is designed for rack-mount installation, and can be deployed
in demanding industrial environments. It is suitable for edge to core industrial networks. It integrates Layer 2 switching software, which is optimized for scale and performance,
delivering wire speed across all ports up to 56 Gbps for layer 2 traffic forwarding. In addition, the PoE design provides up to 30 watts per port to fulfill high power consumption device,
moreover, it supports high reliability with -40 ~ 70°C operating temperatures, and dual 48 VDC input power design ensure vital network capabilities with minimum downtime. It is also
embedded with Advantech IXM, which benefits users by giving them fast deployment and can dramatically save engineer's time and costs

Specifications

Communications

Standard: IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1X, 802.3ad, 802.3ab
LAN: 10/100/1000Base-T (X), Optional 100Base-FX, 1000Base-SX/LX/LHX/XD/ZX/EZX
Transmission Distance:
Ethernet: Up to 100 m (4- wire Cat.5e, Cat.6 RJ45 cable suggested for Gigabit port)
SFP: Up to 110 km (depends on SFP)

Transmission Speed:
Gigabit Copper: 10/100/1000 Mbps, Auto-Negotiation
Gigabit Fiber: Up to 1000 Mbps

Interface

Connectors:
24 x RJ45 (Ethernet)
4 x RJ45/SFP (mini-GBIC) combo ports
4-pin removable screw terminal (Power)
3-pin removable screw terminal (Relay)

LED Indicators:
10/100T (X): Link/Activity, Duplex/Collision
Gigabit Copper: Link/Activity, Speed (1000 Mbps)
SFP: Link/Activity

Console: RS-232 (RJ45)

Network Management

Configuration: Web browser, Telnet, Serial console, TFTP, SNMPv1/ v2c/v3, Port Speed/Duplex Configuration, IPv6
Switching:
Switching Capacity 56 Gbps
Forwarding Rate 41.6 Mpps
MAC Address 8K
Jumbo Frame 9K
VLAN Group 256 (VLAN ID 1 ~ 4094)
Packet Buffer 4.1 Mbit

VLAN: IEEE 802.1Q, GVRP, Port-based VLAN
Redundancy: Advantech X-Ring, 802.1w/1D/1s RSTP/STP/MSTP
Security: IP Security, SSH, SSL, SNMPV3, HTTPS, IP Source Guard, DHCP Snooping, ARP Spoofing Prevention, 802.1X, TACACS+, Access Control List

Traffic Control: IGMP Snooping/Query for multicast group management, Port Trunking, Static/802.3ad, LACP Rate limit and storm control, IEEE 802.1p QoS CoS/TOS/ DSCP priority queuing, IEEE 802.3x flow control
Diagnostics: Port Mirroring, Real-time traffic statistic, MAC Address Table, SNTP, Syslog, E-Mail Alert, SNMP Trap, RMON

Mechanism

Enclosure: IP30, metal shell with solid mounting kits
Dimensions (W x H x D): 438 x 43.6 x 259.20 mm (17.24" x 1.72" x 10.2")
Mounting: 1U 19" Rack mount

Power

Power Consumption: 20W @ 48V
Power Budget: 685W
Power Input: 48 VDC (46 to 57 VDC), 53 -57 VDC is recommended for 802.3at
Fault Output: 2 Relay Outputs

Protection

Power Reverse: Present
Overload Current: Present

Environment

Operating Temperature: -40 ~ 70°C (-40 ~ 158°F)
Storage Temperature: -40 ~ 85°C (-40 ~ 185°F)
Operating Humidity: 10 ~ 95% (non-condensing)
Storage Humidity: 10 ~ 95% (non-condensing)
MTBF: 424,517 hours

Certification

Safety: UL 61010-2-201
EMI: CE FCC EN55022 Class A
EMS:
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8

Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Railway Track Side: EN 50121-4
