EKI-7559MI-AE ADVANTECH DIN Rail managed switches

EKI-7559MI-AE ADVANTECH

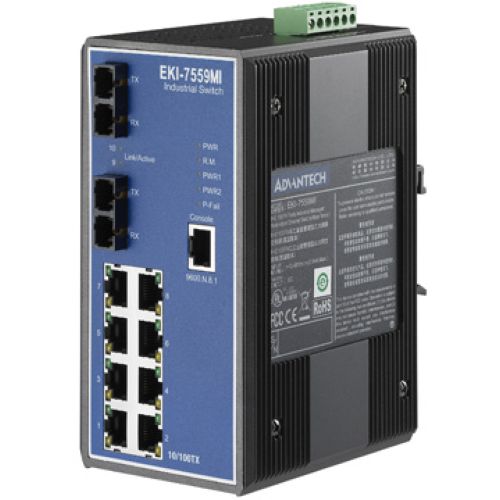

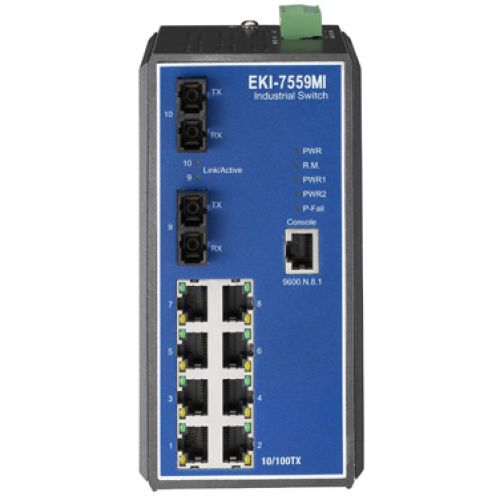

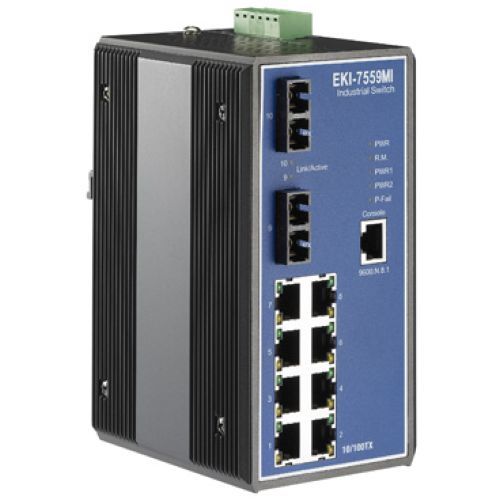

EKI-7559MI-AE

Industrial Managed Ethernet Swicth with 8 Ports 10/100Base-T(X) + 2-port 100 Mbps Multi-mode SC fiber optic, -40 ~ 75 °C Operating Temperature

Clicca per maggiori dettagli

Q.tà':

Articoli Prezzo (IVA esc.)
1+ pz.€ 1.195,63

Prezzo di 1 pz. iva (22%) inclusa: € 1.458,67

Disponibilità: 15 gg lav

  >> I tempi protrebbero essere piĆ¹ lunghi da quelli indicati <<

Brand: ADVANTECH

SKU: 117209

Model: EKI-7559MI-AE

Line: 100M

Features

  • 2 x SC type fiber ports, plus 4 Fast Ethernet ports. (EKI-7554SI/MI)
  • 2 x SC type fiber ports, plus 8 Fast Ethernet ports. (EKI-7559SI/MI)
  • Redundancy: X-Ring Pro (high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
  • Management: Web, Telnet, Serial Console, SNMP
  • Control: VLAN/GVRP, QoS, IGMP Snooping/Query, LACP, Rate Limit
  • Security: IP/MAC, port binding, DHCP Server, IP access list, 802.1X, SSL, SNMPv3
  • Diagnostic: Port Statistic, Port Mirroring, RMON, Trap, Email Alert, Syslog
  • Dual 12 ~ 48 VDC power input and 1 relay output
  • Supports wide operating temperature -40 ~ 75°C

Introduction

Both the EKI-7554SI/MI and EKI-7559SI/MI support two SC type Fiber ports, EKI-7554SI/MI four Fast Ethernet ports and EKI-7559SI/MI can support up to eight Fast Ethernet ports.To create reliability in your network, the EKI-7554SI/MI come equipped with a proprietary redundant network protocol -- X-Ring Pro that was developed by Advantech, which providesusers with an easy way to establish a redundant Ethernet network with ultra high-speed recovery time less than 20 ms. Furthermore, EKI-7554SI/MI also supports many advancednetwork standards to optimize network performance, ease maintenance issues, and secure network safety.

Specifications

Communications

Standard: IEEE 802.3, 802.3u, 802.3x, 802.3ad, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1X
LAN: 10/100Base-T (X), 100Base-FX
Transmission Distance Ethernet:
Up to 100 m
Multi-mode Fiber: Up to 2 km
Transmission Speed: Up to 100 Mbps

Interface

Connectors:
8 x RJ45 ports
2 x SC type fiber optic connectors
LED Indicators System:
PWR, PWR1, PWR2, R.M., P-Fail
10/100T (X): Link/Activity, Duplex/Collision
Console: RS-232 (RJ45)

Network Management

Configuration: Web browser, Telnet, Serial console, TFTP, SNMPv1/ v2c/v3, Port Speed/Duplex Configuration, IPv6
VLAN: IEEE 802.1Q, GVRP, Port-based VLAN
Redundancy: Advantech X-Ring Pro (Recovery time < 20 ms at 250 pcs full loading ring structure), Dual Homing, Dual Ring, Couple Ring, 802.1w/D RSTP/STP
Security: IP Access security, port security, DHCP Server, Port and IP Binding, 802.1X Port Access Control, SSL
Traffic Control: IGMP Snooping/Query for multicast group management, Port Trunking, Static/802.3ad, LACP Rate limit and storm control, IEEE 802.1p QoS CoS/TOS/ DSCP priority queuing, IEEE 802.3x flow control
Diagnostics: Port Mirroring, Real-time traffic statistic, MAC Address Table, SNTP, Syslog, Email Alert, SNMP Trap, RMON

Mechanism

Enclosure: IP30, metal shell with solid mounting kits
Dimensions (W x H x D): 79 x 152 x 105 mm (3.11" x 5.98" x 4.13")
Mounting: DIN-rail, Wall

Power

Power Consumption: Max. 8.4 W
Power:. 12 ~ 48 VDC, redundant dual inputs
Fault Output: 1 Relay Output

Protection

Power Reverse: Present
Overload Current:. Present

Environment

Operating Temperature: -40 ~ 75°C (-40 ~ 167°F)
Storage Temperature: -40 ~ 85°C (-40 ~ 185°F)
Operating Humidity: 5 ~ 95% (non-condensing)
Storage Humidity: 0 ~ 95% (non-condensing)
MTBF: 264,964 hours

Certification

Safety: UL 60950-1, CAN/CSA-C22.2 No.60950 Class I, Division 2 (EKI-7559MI/SI)
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS: EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
