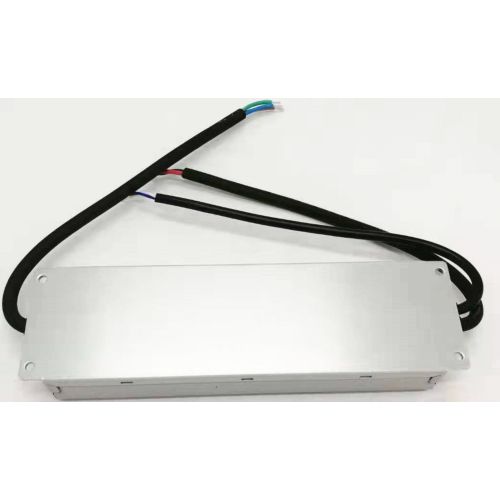

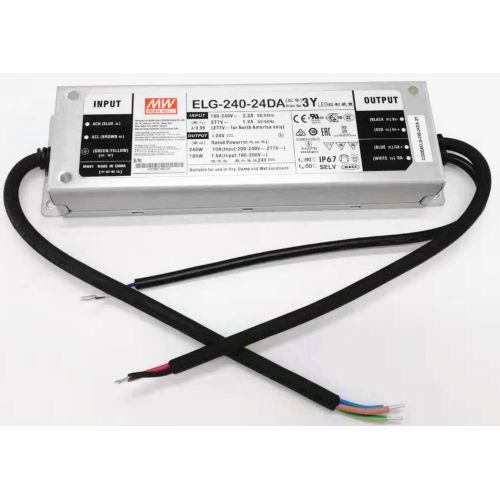

ELG-240-24DA-3Y
AC/DC Driver LED constant voltage 240W 100-305Vac 24Vdc 10A IP67 Dali Function
Features
- Constant Voltage + Constant Current mode output
- Metal housing design with functional Ground
- Built-in active PFC function
- No load / Standby power consumption <O.5W
- lP67/ IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smarttimer dimming; DALI
- Typical lifetime>5000O hours
- 5 years warranty
Applications
- LED street lighting
- LED architectural lighting
- LED bay lighting
- LED floodlighting
- Type “HL” for use in Class I, Division 2 hazardous (Classified) location.
Description
ELG-240 series is a 240W AC/DC LED driver featuring the dual mode constant voltage and
constant current output. ELG-240 operates from 100~305VAC and offers models with different
rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 93%, with the
fanless design, the entire series is able to operate for -40°C ~ +90°C case temperature under free
air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series
to fit both indoor and outdoor applications. ELG-240 is equipped with various function options, such as
dimming methodologies, so as to provide the optimal design flexibility for LED lighting system
Specifications
OUTPUT
DC VOLTAGE: 24V
CONSTANT CURRENT REGION: 12~24V
RATED CURRENT: 10A
RATED POWER: 240W
RIPPLE & NOISE (max.): 200mVp-p
VOLTAGE TOLERANCE: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 500ms, 100ms/230VAC, 1000ms, 100ms/1 1 5VAC
HOLD UP TIME (Typ.): 10ms/230VAC 10ms/115VAC
INPUT
VOLTAGE RANGE: 100 ~ 305VAC
FREQUENCY RANGE: 47 ~ 63HZ
EFFICIENCY (Typ.): 92%
AC CURRENT: 2.2A/115VAC 1.5A/230VAC 1.2A/277VAC
