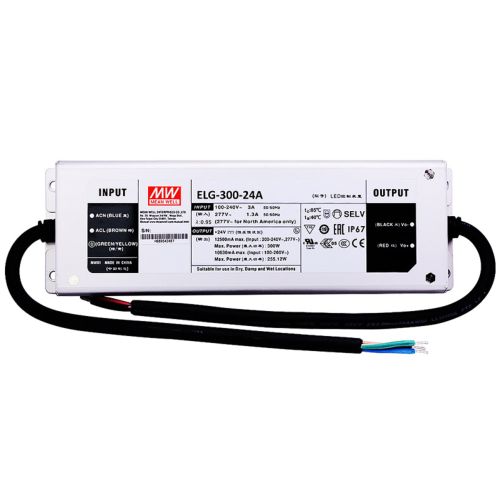

ELG-300-24A Mean Well AC DC Driver Led

 Features

• Constant Voltage + Constant Current mode output
• Protection Functions: OCP,SCP,OVP,OTP
• IP67 rating for indoor or outdoor installations

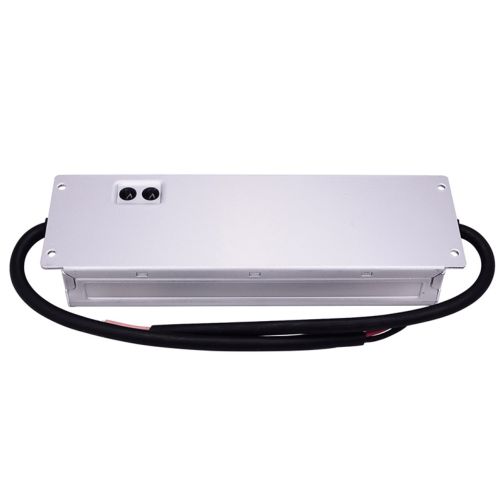

• Output adjustable via potentiometer
• Typical lifetime>5000O hours
• 5 years warranty

Applications

LED bay lighting
LED Stage fighting
LED flood fighting
LED Strip fighting
DMX C0ntro| System

Description

ELG-300 series is a 300W LED driver featuring with constant current and Constant voltage mode design.
ELG-300 operates from 100~305VAC and offers CV mode or CC mode applications. Thanks to the high
efficiency up to 94%, with the fanless design, the ambient temperature can be operated for -40°C~+85°C
case temperature under free air convection. The design of metal housing and IP67 ingress protection
level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-
adaptive capability allows this series to reliably light on the LEDs for all kinds of application
environments in almost any spots that may install LED luminaires in the world ,as to provide the optimal
design flexibility for LED lighting system.

Specifications

OUTPUT

DC VOLTAGE: 24V
CONSTANT CURRENT REGION: 14.4 ~ 24V
RATED CURRENT:
 200VAC ~ 305VAC: 12.5A
 100VAC ~180VAC: 10.63A
RATED POWER:
 200VAC ~ 305VAC: 300W
 100VAC ~180VAC: 255W
RIPPLE & NOISE (max.: 240mVp-p
VOLTAGE ADJ. RANGE: 22.4 ~25.6V
CURRENT ADJ. RANGE: 6.25~12.5A
VOLTAGE TOLERANCE: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 500ms, 100ms/230VAC,      500ms, 100ms/115VAC
HOLD UP TIME (Typ.): 10ms/ 230VAC 10ms/115VAC

INPUT

VOLTAGE RANGE: 100 ~ 305VAC
FREQUENCY RANGE: 47 ~ 63HZ
EFFICIENCY (Typ.): 94%
AC CURRENT: 3A/ 115VAC       1.6A/ 23OVAC         1.3A/277VAC
