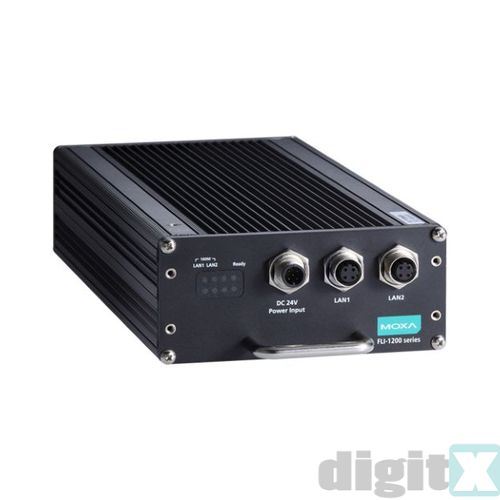

FLI-1260-T MOXA rugged din rail

Features

• Marvell 1.0 GHz processor
• 512 MB of DDRII memory built in
• 2 10/100 Mbps Ethernet ports for network redundancy
• Compliant with essential sections of EN 50155*
• IEC 61373 certified for shock and vibration resistance

Introduction

Moxa’s FLI-1200 is an industrial auto-configuration server appliance designed to automatically configure and monitor various Moxa products in harsh industrial environments. The FLI-1200 has a fanless, thermally efficient, dust- and waterprotected IP54-rated chassis. The sealed enclosure protects the  internal components from dust and splashed water, and is compliant with the EN 50155 standard, covering operating temperature, power input voltage, power surges, ESD, and vibration, ensuring that the FLI-1200 can operate reliably under extreme environments for rolling stock applications. The FLI-1200 comes with Moxa’s FLI technology, which ensures that the replacement or deployment of any Moxa device will not affect the existing architecture, and eliminates the need to perform manual reentry or reconfiguration. With its web-based interface, users can easily manage the system and monitor the status of any device being controlled by the FLI-1200. In addition, its reliable and robust design ensures that when the primary FLI server is offline, the backup server will take over to keep the auto-configuration functionality up and running. With the FLI-1200, users can maintain Moxa’s products more efficiently, and realize a considerable reduction in maintenance costs and human error.

Computer

CPU: Onboard Marvell 1.0 GHz 88F6281
DRAM: 512 MB DDRII
Flash Memory: Onboard 2 GB USB DOM to store OS

Digital Input

Input Channels: 1, source type
Input Voltage: 0 to 30 VDC at 25 Hz
Digital Input Levels for Dry Contacts:
     Logic level 0: Close to GND
     Logic level 1: Open
Digital Input Levels for Wet Contacts
Connector Type: M12 A-coded female
Isolation: 3 kV optical isolation

Ethernet Interface

LAN: 2 auto-sensing 10/100 Mbps ports (M12 D-coded)

LEDs

System: LAN1, LAN2, Act, Ready
LAN: 100M/Link x 2

Physical Characteristics

Housing: Aluminum
Weight: 1.98 kg
Dimensions: 252 x 130 x 57 mm (9.92 x 5.12 x 2.24 in)
Mounting: Wall
IP Rating: IP54

Environmental Limits

Operating Temperature: -40 to 70°C (-40 to 158°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Anti-vibration: EN 50155
Anti-shock: EN 50155
Conformal Coating: Available on request

Power Requirements

Input: PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), or 24 VDC
Power Consumption: 25.5 W

Standards and Certifications

Safety: UL 60950-1
EMC: EN 55022 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024
Rail Traffic: EN 50155, EN 50121-3-2, IEC 61373
Green Product: RoHS, CRoHS, WEEE
EMI: FCC Part 15 Subpart B Class A, CISPR 22:2008

Warranty

Warranty Period: 5 years (storage drive not included)
