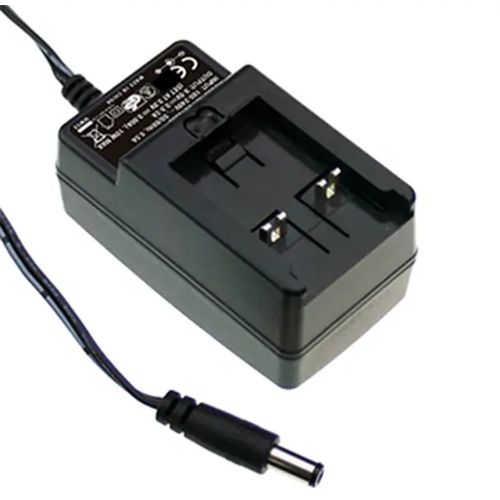

GE12I12-P1J-AC PLUG-EU Mean Well Alimentatori a Muro

Features

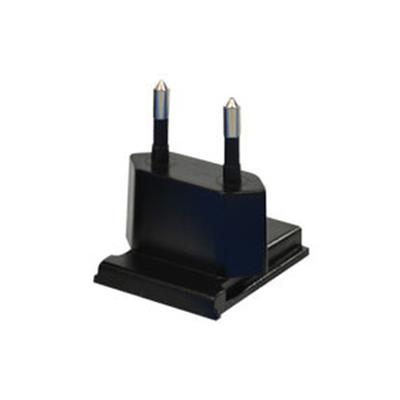

• Interchangeable AC plugs (plug kit sold separately)
• Universal AC input / Full range
• No load power consumption< 0.075W
• Energy efficiency Level VI
• Comply with EISA 2007/DoE and EU ErP
• Class H power (without earth pin)
• Protections: Short circuit / Overload / Over voltage
• Pass LPS
• Fully enclosed plastic case
• LED indicator for power on
• 2 years warranty

Specifications

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 1.0A
CURRENT RANGE: 0~1.0A
RATED POWER: 12W
RIPPLE & NOISE (maX.): 120mVp-p
VOLTAGE ±3.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±3.0%
SETUP, RISE, HOLD UP TIME: 4000ms, 100ms, 30ms /230VAC 4000ms, 100ms, 10ms/115VAC at full load

INPUT

VOLTAGE RANGE:  90 ~ 264VAC
FREQUENCY RANGE: 47 ~ 63HZ
EFFICIENCY (Typ.): 84%
AC CURRENT: 0.4A/100VAC 0.25A/230VAC
INRUSH CURRENT (maX.): COLD START 40A/ 100VAC  8OA/ 23OVAC
LEAKAGE CURRENT (maX.): 0.25mA/ 240VAC
