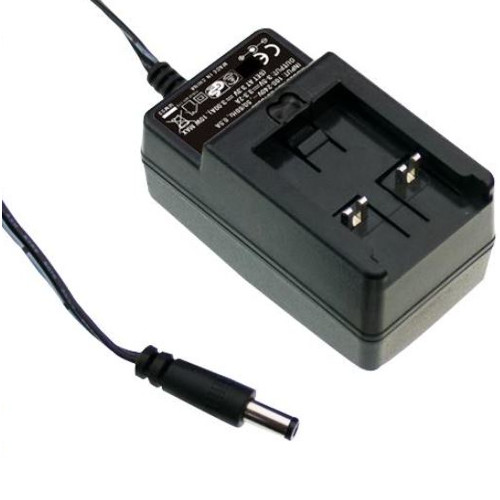

GE18I48-P1J-AC plug-EU, AC/DC Wall mount adaptor Single output 18W 48Vdc 0.375A Interchangeable AC Plug
GE18I48-P1J-AC plug-EU
AC/DC Wall mount adaptor Single output 18W 48Vdc 0.375A Interchangeable AC Plug
Feature
- Interchangeable AC plugs (plug kit sold separately)
- Universal AC input / Full range
- No load power consumption< 0.075W
- Energy efficiency Level VI
- Comply with EISA 2007/DoE and EU ErP
- Class H power (without earth pin)
- Protections: Short circuit / Overload / Over voltage
- Pass LPS
- Fully enclosed plastic case
- LED indicator for power on
- 2 years warranty
Specifications
OUTPUT
DC VOLTAGE: 48V
RATED CURRENT: 0.375A
CURRENT RANGE: 0 ~ 0.375A
RATED POWER: 18W
RIPPLE & NOISE (maX.): 300mVp-p
VOLTAGE ±3.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±3.0%
SETUP, RISE, HOLD UP TIME: 4000ms, 100ms, 30ms /230VAC 4000ms, 100ms, 10ms/115VAC at full load
INPUT
VOLTAGE RANGE: 90 ~ 264VAC
FREQUENCY RANGE: 47 ~ 63HZ
EFFICIENCY (Typ.): 87%
AC CURRENT: 0.7A/100VAC 0.4A/230VAC
INRUSH CURRENT (maX.): COLD START 40A/ 100VAC 8OA/ 23OVAC
LEAKAGE CURRENT (maX.): 0.25mA/ 240VAC
