GPL-GSFP-C++ Planet GPON OLT SFP

 PLANET GPON OLT SFP Quad (small form factor pluggable) Transceiver (GPL-GSFP) is specifically designed for high-performance integrated duplex data link over single mode optical fiber, and its single fiber bi-directional data links with symmetric 2.488Gbps Tx and 1.244Gbps Rx. It is compliant with ITU-T G.984.2 and hot pluggable.
The GPON OLT SFP Transceiver also supports SFP-DDM (digital diagnostic monitor) function that greatly helps network administrators to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Applications

The GPL-GSFP can be connected to PLANET GPL-8000’s GPON SFP interface. With that, the deployment distance can be extended up to 20 kilometers (single-mode, SC). The GPL-GSFP is hot-pluggable and hot-swappable. You can plug in and pull out the transceiver to/from any GPON SFP port without having to power off the switch.

Features and Benefits

• Supports ITU-T G.984.2 GPON OLT C+/C++application
• TX:1490nm, RX:1310nm
• Single SC (WDM) interface connector
• Single fiber bi-directional data links with symmetric 2.488Gbps Tx and 1.244Gbps Rx
• Distance up to 20km over 9/125µm fiber cable
• Plug and Play installation
• 2-wire interface for integrated digital diagnostic monitoring
• Receiver Reset, Signal Detect, RSSI function indication (RESET, RX_SD, RSSI)

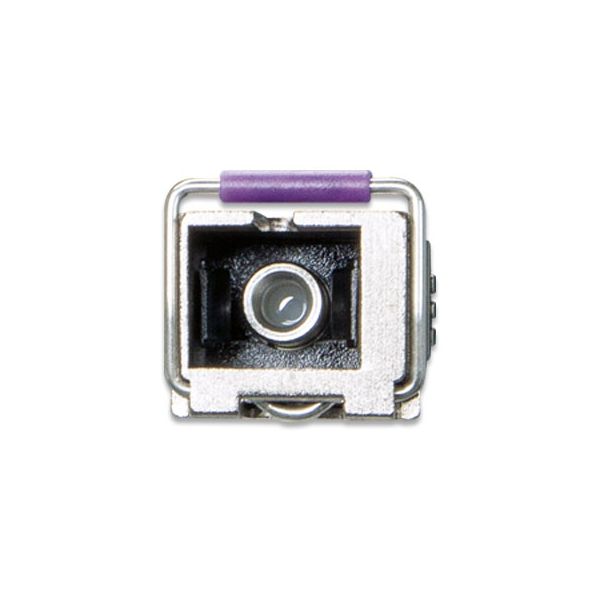

• SFP package with SC/UPC receptacle optical interface
• Single +3.3V power supply
• 0 to 70 degrees C operating tem

Specifications

Fiber Type: Single-mode
Connector: SC (WDM)
Optical Power: 4.5dBm~10dBm
Wavelength: TX: 1490nm，RX: 1310nm
Maximum Distance: 20m
Operating Temperature: 0~70 degrees C
