GS-5220-24UPL4XR Planet Managed POE

GS-5220-24UPL4XR Planet

GS-5220-24UPL4XR Planet

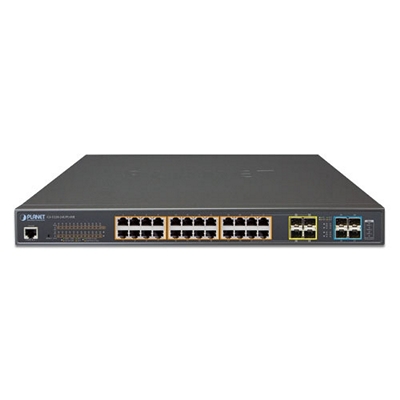

GS-5220-24UPL4XR

L3 24-Port 10/100/1000T Ultra PoE + 4-Port 10G SFP+ Managed Switch with System Redundant Power (600W)

Clicca per maggiori dettagli

Q.tà':

Articoli Prezzo (IVA esc.)
1+ pz.€ 1.104,33

Prezzo di 1 pz. iva (22%) inclusa: € 1.347,28

Disponibilità: 10 gg lav

  >> I tempi protrebbero essere piĆ¹ lunghi da quelli indicati <<

Brand: PLANET

SKU: 115261

Model: GS-5220-24UPL4XR

Prodotti Correlati

Planet

Industrial 1-Port Ultra PoE to 4-Port ...

1+ pezzi:  € 172,60

Planet

SFP-Port 1000BASE-BX (WDM, TX:1550nm) ...

1+ pezzi:  € 23,43

Planet

16-Port Gigabit 802.3bt PoE++ Managed ...

1+ pezzi:  € 816,93

Planet

8-Port Gigabit 802.3bt PoE++ Managed ...

1+ pezzi:  € 610,74

 Amazing Ultra PoE Managed Switches with Layer 3 Switching and Security

PLANET GS-5220-24UP(L)4X(R) PoE Series of cost-optimized, 1U, Gigabit PoE Managed Switch featuring PLANET intelligent PoE functions to improve the availability of critical business applications. They provide IPv6/IPv4 dual stack management and built-in Layer 3 OSPF/static routing Gigabit switching along with 24 10/100/1000BASE-T ports featuring 75-watt Ultra PoE and 4 additional 10Gigabit SFP+ ports. With a total power budget of up to 400/600 watts for different kinds of PoE applications, the GS-5220-24UP(L)4X(R) PoE Series provides a quick, safe and cost-effective PoE network solution for small businesses and enterprises.

Convenient and Smart ONVIF Devices with Detection Feature

PLANET has newly developed an awesome feature -- ONVIF Support -- which is specifically designed for co-operating with Video IP Surveillances. From the GS-5220-24UP(L)4X(R) PoE Series GUI, clients just need one click to search and show all of the ONVIF devices via network application. In addition, clients can upload floor images to the switch series, making the deployments of surveillance and other devices easy for planning and inspection purposes. Moreover, clients can get real-time surveillance’s information and online/offline status. They allow PoE reboot control from the GUI.

75 Watts of Power over 4-pair UTP

The GS-5220-24UP(L)4X(R) PoE Series ultra PoE solution adopts the IEEE 802.3at/af standard. Instead of delivering power over 2-pair twisted UTP – be it end-span (Pins 1,2,3 and 6) or mid-span (Pins 4,5,7 and 8), they provide the capability to source up to 75 watts of power by using all the four pairs of standard Cat.5e/6 Ethernet cabling. In the new 4-pair system, two PSE controllers will be used to power both the data pairs and the spare pairs. They can offer more PoE applications, such as:

  • PoE PTZ speed dome
  • Any network device that needs higher PoE power to work normally
  • Thin-client
  • AIO (All-in-One) touch PC
  • Remote digital signage display

Built-in Unique PoE Functions for Powered Devices Management

Being the managed PoE switches for surveillance, wireless and VoIP networks, the GS-5220-24UP(L)4X(R) PoE Series features the following special PoE management functions:

  • PD alive check
  • Scheduled power recycling
  • PoE schedule
  • PoE usage monitoring

Intelligent Powered Device Alive Check

The GS-5220-24UP(L)4X(R) PoE Series can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the GS-5220-24UP(L)4X(R) PoE Series will resume the PoE port power and bring the PD back to work. They will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.

Scheduled Power Recycling

The GS-5220-24UP(L)4X(R) PoE Series allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, they will reduce the chance of IP camera or AP crash resulting from buffer overflow.

PoE Schedule for Energy Saving

Under the trend of energy saving worldwide and contributing to environmental protection, the GS-5220-24UP(L)4X(R) PoE Series can effectively control the power supply besides their capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours.

PoE Usage Monitoring

Via the power usage chart in the web management interface, the GS-5220-24UP(L)4X(R) PoE Series enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, they greatly enhance the management efficiency of the facilities.

Layer 3 Routing Support

The GS-5220-24UP(L)4X(R) PoE Series enables the administrator to conveniently boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually, and the OSPFv2 (Open Shortest Path First) settings automatically. The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.

Cost-effective 10Gbps Uplink Capacity

10G Ethernet is a big leap in the evolution of Ethernet. The four 10G SFP+ slots of the GS-5220-24UP(L)4X(R) PoE Series support dual-speed 10GBASE-SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. They greatly support SMB network to achieve the maximum performance of 10Gbps in a cost-effective way.

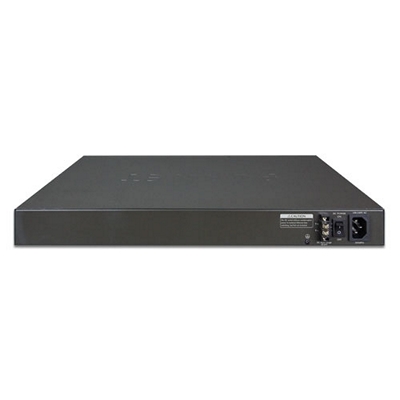

Redundant AC/DC Power Supply to Ensure Continuous Operation

The GS-5220-24UP(L)4XR are particularly equipped with one 100~240V AC power supply unit and one 36~60V DC power supply unit to provide an enhanced reliable and scalable redundant power supply. The continuous power system is specifically designed to fulfill the demands of high-tech facilities requiring the highest power integrity. With the 36~60V DC power supply, the GS-5220-24UP(L)4XR are able to act as a telecom-level device that can be located in the electronic room.

Environment-friendly, Smart Fan Design for Silent Operation

The GS-5220-24UP(L)4X(R) PoE Series features a 19-inch metal housing, a low noise design and an effective ventilation system. They support the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the PoE switch for optimal power output capability. The GS-5220-24UP(L)4X(R) PoE Series is able to operate reliably, stably and quietly in any environment without affecting its performance.

Solution for IPv6 Networking

By supporting IPv6/IPv4 dual stack and plenty of management functions with easy and friendly user interfaces, the GS-5220-24UP(L)4X(R) PoE Series is the best choice for IP surveillance, VoIP and wireless service providers to deploy the IPv6 network. They also help the SMBs to step in the IPv6 era with the lowest investment and without having to replace the network facilities while the ISPs construct the IPv6 FTTx edge network.

Robust Layer 2 Feature

The GS-5220-24UP(L)4X(R) PoE Series can be programmed for advanced switch management functions, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2/4 QoS, bandwidth control and IGMP/MLD snooping. The GS-5220-24UP(L)4X(R) PoE Series allows the operation of a high-speed trunk combining with multiple ports.

Powerful Security

The GS-5220-24UP(L)4X(R) PoE Series offers a comprehensive Layer 2 to Layer 4 access control list (ACL) for enforcing security to the edge. It can be used to restrict to network access by denying packets based on source and destination IP address, TCP/UDP port number or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.

Enhanced Security and Traffic Control

The GS-5220-24UP(L)4X(R) PoE Series also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.

User-friendly Secure Management

For efficient management, the GS-5220-24UP(L)4X(R) PoE Series is equipped with console, web and SNMP management interfaces. With the built-in web-based management interface, it offers an easy-to-use, platform independent management and configuration facility. The GS-5220-24UP(L)4X(R) PoE Series supports SNMP and it can be managed via any management software based on the standard SNMP v1 or v2 Protocol. For reducing product learning time, the GS-5220-24UP(L)4X(R) PoE Series offers Cisco-like command via Telnet or console port and customer doesn’t need to learn new command from these switches. Moreover, the GS-5220-24UP(L)4X(R) PoE Series offers the remotely secure management by supporting SSH, SSL and SNMP v3 connection where the packet content can be encrypted at each session.

Flexible and Extendable Solution

The 4 mini-GBIC SFP slots built in the GS-5220-24UP(L)4X(R) PoE Series support dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules. Now the administrator can flexibly choose the suitable SFP transceiver according to not only the transmission distance, but also the transmission speed required. The distance can be extended from 550 m to 2 km (multi-mode fiber) and to 10/20/30/40/50/70/120 km (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

Intelligent SFP/SFP+ Diagnosis Mechanism

The GS-5220-24UP(L)4X(R) PoE Series supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Applications

Ultra PoE Networking Solution

PLANET GS-5220-24UP(L)4X(R) PoE Series can easily build an ultra PoE networking solution on the cybersecurity system for the enterprises.  For instance, it can work with the POS system and thin client to perform comprehensive security protection for today’s businesses. The GS-5220-24UP(L)4X(R) PoE Series and POE-171S/IPOE-171S Ultra PoE Splitter operate as a pair to provide the easiest way to power your Ethernet devices which need high power input. Receiving data and power from the GS-5220-24UP(L)4X(R) PoE Series, the POE-171S/IPOE-171S separates digital data and power into several optional outputs (12V, 19V or 24V DC) to non-PoE devices such as laptops, thin client, POS system, PTZ network cameras, PTZ speed dome cameras, color touch-screen IP phones, multi-channel wireless LAN access points and other network devices at distance up to 100 meters.

Optimal Redundant Ring for Faster Recovery of Managed Network

The GS-5220-24UP(L)4X(R) PoE Series supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, and Spanning Tree Protocol (802.1w RSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple ring network, the recovery time could be less than 50ms to quickly bring the network back, thus enabling the management network to keep on operating.

Features and Benefits

Physical Port

  • 24 10/100/1000BASE-T Gigabit RJ45 copper ports with 24-port IEEE 802.3af/at/bt Ultra PoE injector
  • 4 100/1000BASE-X mini-GBIC/SFP slots, shared with port-21 to port-24 compatible with 100BASE-FX SFP
  • 4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
  • RJ45 console interface for switch basic management and setup

802.3bt Ultra Power over Ethernet

  • Complies with IEEE 802.3at Power over Ethernet Plus, end-span/mid-span PSE
  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Up to 24 ports of IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt ultra PoE devices powered
  • Supports PoE power up to 75 watts for each ultra PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100 meters
  • PoE management
  • - Total PoE power budget control
  • - Per port PoE function enable/disable
  • - PoE admin-mode control
  • - PoE port power feeding priority
  • - Per PoE port power limitation
  • - PD classification detection
  • - Temperature threshold control
  • - PD alive check
  • - PoE schedule

Layer 2 Features

  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Storm Control support
  • - Broadcast/Multicast/Unknown unicast
  • Supports VLAN
  • - IEEE 802.1Q tagged VLAN
  • - Up to 255 VLANs groups, out of 4094 VLAN IDs
  • - Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
  • - Private VLAN Edge (PVE)
  • - Protocol-based VLAN
  • - MAC-based VLAN
  • - Voice VLAN
  • Supports Spanning Tree Protocol
  • - IEEE 802.1D Spanning Tree Protocol
  • - IEEE 802.1w Rapid Spanning Tree Protocol
  • - IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
  • -BPDU Guard
  • Supports Link Aggregation
  • - 802.3ad Link Aggregation Control Protocol (LACP)
  • - Cisco ether-channel (static trunk)
  • - Maximum 14 trunk groups, up to 8 ports per trunk group
  • Provides port mirror (many-to-1)
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops
  • Supports E.R.P.S. (Ethernet Ring Protection Switching)

Layer 3 Features

  • Supports maximum 128 static routes and route summarization
  • IP dynamic routing protocol supports  OSPFv2
  • Routing interface provides per VLAN routing mode

Quality of Service

  • Ingress Shaper and Egress Rate Limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification
  • - IEEE 802.1p CoS
  • - TOS/DSCP/IP precedence of IPv4/IPv6 packets
  • - IP TCP/UDP port number
  • - Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Supports QoS and In/Out bandwidth control on each port
  • Traffic-policing on the switch port
  • DSCP remarking

Multicast

  • Supports IGMP snooping v1, v2 and v3
  • Supports MLD snooping v1 and v2
  • Querier mode support
  • IGMP snooping port filtering
  • MLD snooping port filtering
  • Multicast VLAN Registration (MVR) support

Security

  • Authentication
  • - IEEE 802.1x port-based/MAC-based network access authentication
  • - Built-in RADIUS client to cooperate with the RADIUS servers
  • - TACACS+ login users access authentication
  • - RADIUS/TACACS+ users access authentication
  • Access Control List
  • - IP-based Access Control List (ACL)
  • - MAC-based Access Control List
  • Source MAC/IP address binding
  • DHCP Snooping to filter untrusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • IP address access management to prevent unauthorized intruder

Management

  • IPv4 and IPv6 dual stack management
  • Switch Management Interfaces
  • - Console/Telnet Command Line Interface
  • - Web switch management
  • - SNMP v1, v2c, and v3 switch management
  • - SSH/SSL secure access
  • IPv6 IP Address/NTP/DNS management
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System Maintenance
  • - Firmware upload/download via HTTP/TFTP
  • - Reset button for system reboot or reset to factory default
  • - Dual images
  • DHCP Relay
  • DHCP Option 82
  • User Privilege levels control
  • NTP (Network Time Protocol)
  • Link Layer Discovery Protocol (LLDP) and LLDP-MED
  • Network Diagnostic
  • - ICMPv6/ICMPv4 remote ping
  • - Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
  • SMTP/Syslog remote alarm
  • Four RMON groups (history, statistics, alarms and events)
  • SNMP trap for interface Link Up and Link Down notification
  • System Log
  • PLANET Smart Discovery Utility for deployment management
  • Smart fan with speed control

Redundant Power System (GS-5220-24UP(L)4XR)

  • Redundant 100~240V AC/36-60V DC dual power
  • Active-active redundant power failure protection
  • Backup of catastrophic power failure on one supply
  • Fault tolerance and resilience

Specifications

Hardware Specifications

Hardware Version: 2
Copper Ports: 24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots: 4 100/1000BASE-X SFP interfaces, shared with Port-21 to Port-24
Compatible with 100BASE-FX SFP transceiver
SFP+ Slots: 4 10GBASE-SR/LR SFP+ interfaces (Port-25 to Port-28)
Compatible with 1000BASE-SX/LX/BX SFP transceiver
Console: 1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
Switch Architecture: Store-and-Forward
Switch Fabric: 128Gbps/non-blocking
Throughput: 95.23Mpps@64Bytes
Address Table: 16K entries, automatic source address learning and aging
Shared Data Buffer: 32M bits
Flow Control: IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame: 10K bytes
Reset Button: < 5 sec: System reboot
> 5 sec: Factory default
Dimensions (W x D x H): 440 x 300 x 44.5 mm, 1U height
Weight: 5119g
Power Consumption: AC: Max.659.9 watts/2249.2 BTU
                                           DC: Max. 35.1 watts/119.7 BTU
Power Requirements – AC: AC 100~240V, 50/60Hz, 10A
Power Requirements – DC: DC 36~60V, 2A
ESD Protection: 6KV DC
Fan: 3 smart fans
LED: System:
 SYS (Green)
 AC/PWR (Green)
 DC (Green) (GS-5220-24UP(L)4XR Only)
 Ring (Green)
 Fan1/2/3 Alert (Red)
 PoE PWR Alert (Red)
PoE Ethernet Interfaces (Port-1 to Port-24):
 bt PoE (Green) , af/at PoE (Orange)
Ethernet Interfaces (Port-1 to Port-24):
 1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange)
100/1000Mbps SFP Combo Interfaces (Port 21 to Port 24):
 1000 (Green), 100 (Orange)
1/10G SFP+ Interfaces (Port-25 to Port-28):
 1G (Green), 10G (Orange)

Power over Ethernet

PoE Standard: IEEE 802.3af/802.3at/802.3bt Ultra PoE PSE
PoE Power Supply Type: End-span/Mid-span/UPoE
PoE Power Output: Per port 52V DC, 75 watts (max.)
Power Pin Assignment: End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
UPoE: 1/2(-), 3/6(+),4/5(+), 7/8(-)
PoE Power Budget: 600 watts (max.)
PoE Ability PD @ 15 watts: 24 units
PoE Ability PD @ 30 watts: 20 units
PoE Ability PD @ 60 watts: 10 units

Layer 2 Management Functions

Port Configuration: Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port Status: Display each port’s speed duplex mode, link status, flow control status,
auto-negotiation status, trunk status
Port Mirroring: TX/RX/Both
Many-to-1 monitor
VLAN: 802.1Q tagged based VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN registration)
Up to 255 VLAN groups, out of 4095 VLAN IDs
Link Aggregation: IEEE 802.3ad LACP/static trunk
14 groups with 8 port per trunk
Spanning Tree Protocol: IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
QoS: Traffic classification based, strict priority and WRR
8-level priority for switching:
 - Port number
 - 802.1p priority
 - 802.1Q VLAN tag
 - DSCP/ToS field in IP packet
IGMP Snooping: IGMP (v1/v2/v3) snooping, up to 255 multicast groups
IGMP querier mode support
MLD Snooping: MLD (v1/v2) snooping, up to 255 multicast groups
MLD querier mode support
Access Control List: IP-based ACL/MAC-based ACL
Up to 256 entries
Bandwidth Control: Per port bandwidth control
 Ingress: 100Kbps~1000Mbps
 Egress: 100Kbps~1000Mbps

Layer 3 Functions

IP Interfaces: Max. 128 VLAN interfaces
Routing Table: Max. 128 routing entries
Routing Protocols: IPv4 OSPFv2
IPv4 hardware static routing
IPv6 hardware static routing

Management

Basic Management Interfaces: Console; Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces: SSH, SSL, SNMP v3
SNMP MIBs: RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP

Standards Conformance

Regulatory Compliance: FCC Part 15 Class A, CE
Standards Compliance:
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt 4-pair Power over Ethernet
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2

Environment

Operating: Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage. Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)

Le immagini e le caratteristiche dei prodotti presenti sul sito sono di proprietà di Planet Inc. E' espressamente vietata la riproduzione dei contenuti del sito in qualsiasi modo ed a qualsiasi scopo senza la preventiva autorizzazione scritta da parte di Lastella Trade o Planet Inc. Le immagini presenti sono a puro titolo esplicativo, in alcuni casi sono foto di gruppo e potrebbero subire variazioni senza preavviso, per le caratteristiche del prodotto fa fede la descrizione prodotto.





Sei interessato a un Preventivo ?

Hai una azienda e sei interessato ad un grosso acquisto di merce?
Contattaci per avere una offerta Personalizzata

Clicca qui

Distribuiamo Moxa
Distribuiamo Takachi
Distribuiamo Planet
Distribuiamo Advantech
Distribuiamo Digitus
Distribuiamo Mean Well
Distribuiamo 3onedata
Distribuiamo Sirio Antenne

Resta collegato... iscriviti alla Newsletter
