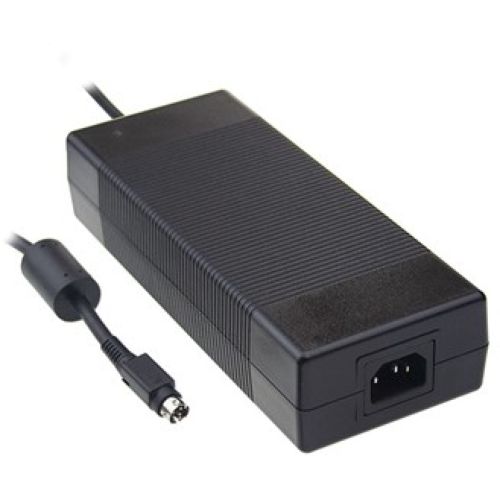

GST220A24-R7B, AC/DC Desktop Adaptor 220W 85-264Vac 24Vdc 9.2A Ac Plug IEC320-C14 Dc PLug DIN 4P PFC Function Class I Level VI
GST220A24-R7B
AC/DC Desktop Adaptor 220W 85-264Vac 24Vdc 9.2A Ac Plug IEC320-C14 Dc PLug DIN 4P PFC Function Class I Level VI
SPEDIZIONE GRATUITA
Features
- Global certificates
- Universal AC input/ Full range
- 3 pole AC inlet lEC320-C14,Class I power unit
- Built-in active PFC function
- N0 load power consumption<O.15W
- Energy efficiency Level VI
- Comply with EISA 2007/DoE,NRCan,Korea K-MEPS, AU/NZ MEPS,EU ErP and COC Version 5
- Protections: Short circuit / Overload / Over voltage
- /Over temperature
- Fanless design with -30~+70°C working temperature
- Fully enclosed plastic case
- LED indicator for power on
- 3 years warranty
Specifications
OUTPUT
DC VOLTAGE: 24V
RATED CURRENT: 9.2A
CURRENT RANGE: 0 ~ 9.2A
RATED POWER: 221W
RIPPLE & NOISE (maX.): 150mVp-p
VOLTAGE TOLERANCE. ±3.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±3.0%
SETUP, RISE, HOLD UP TIME: 2000ms, 50ms / 23OVAC 2000ms,50ms/115VAC at full load
INPUT
VOLTAGE RANGE: 85 ~ 264VAC
FREQUENCY RANGE: 47 ~ 63HZ
POWER FACTOR (Typ.): PF>0.91 /23OVAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 93.5%
AC CURRENT: 4A/115VAC 2A/ 230VAC
INRUSH CURRENT (maX.): Cold start 60A/ 115VAC 120A/ 230VAC
LEAKAGE CURRENT (maX.): 0.75mA/ 240VAC
