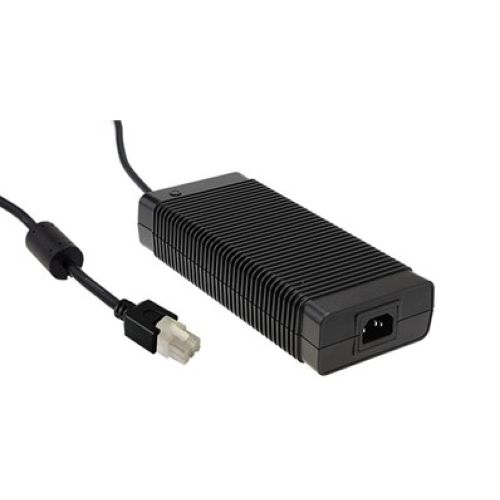

GST280A24-C6P, AC/DC Desktop Adaptor 280W 85-264Vac 24Vdc 0-11,67A IEC320-C14 6P/4,2mm PFC Function
GST280A24-C6P
AC/DC Desktop Adaptor 280W 85-264Vac 24Vdc 0-11,67A IEC320-C14 6P/4,2mm PFC Function
SPEDIZIONE GRATUITA
Features
- Global certificates
- Universal AC input/ Full range
- 3 pole AC inlet lEC320-C14,Class I power unit
- Built-in active PFC function
- No load power consumption<0.5W
- Energy efficiency Level VI
- Comply with EISA 2007/DoE,NRCan,Korea K-MEPS, AU/NZ MEPS,EU ErP
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Fanless design with -30~+70°C working temperature
- Fully enclosed plastic case
- LED indicatorfor poweron
- 3 years warranty
Specifications
OUTPUT
DC VOLTAGE: 24V
RATED CURRENT: 11.67A
CURRENT RANGE: 0 ~ 11.67A
RATED POWER: 280.08W
RIPPLE & NOISE (maX.): 200mVp-p
VOLTAGE TOLERANCE. ±3.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±3.0%
SETUP, RISE TIME: 2000ms, 20ms / 230VAC 2000ms,20ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load
INPUT
VOLTAGE RANGE: 85 ~ 264VAC
FREQUENCY RANGE: 47 ~ 63HZ
POWER FACTOR (Typ.): PF>0.95 / 230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 93%
AC CURRENT: 3A/115VAC 1.5A/ 230VAC
INRUSH CURRENT (maX.): Cold start 60/ 115AC 120A / 230VAC
LEAKAGE CURRENT (maX.): 1.5mA/ 240VAC
