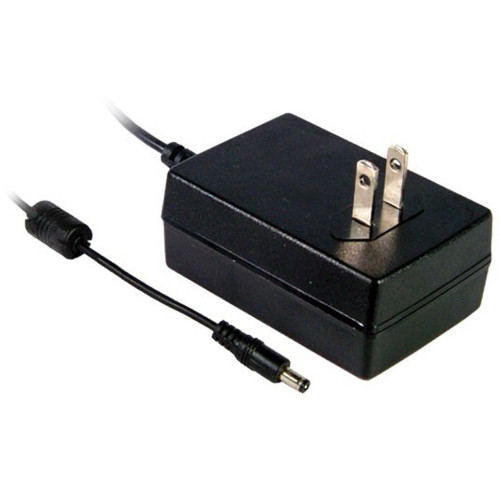

GST36U24-P1J, AC/DC Wall Mount Green Adaptor 36W American 2P 24Vdc 1.5A Class II Level VI
GST36U24-P1J
AC/DC Wall Mount Green Adaptor 36W American 2P 24Vdc 1.5A Class II Level VI
Features
- Global certificates
- Universal AC input/ Full range
- 2 pole EURO plug, Class II power unit
- No load power consumption< 0.075W
- Energy efficiency Level VI
- Comply with EISA 2007/DoE and NRCan
- Protections: Short circuit / Overload / Over voltage
- Fully enclosed plastic case
- Pass LPS
- -30~+70°C wide range working temperature
- LED indicator for power on
- 3 years warranty
Specifications
OUTPUT
DC VOLTAGE: 24V
RATED CURRENT: 1.5A
CURRENT RANGE: 0 ~ 1.5A
RATED POWER: 36W
RIPPLE & NOISE (maX.): 150mVp-p
VOLTAGE TOLERANCE. ±2.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±2.0%
SETUP, RISE, HOLD UP TIME: 1000ms, 30ms, 50ms /230VAC 1500ms, 30ms, 15ms/115VAC at full load
INPUT
VOLTAGE RANGE: 85 ~ 264VAC
FREQUENCY RANGE: 47 ~ 63HZ
EFFICIENCY (Typ.): 88.5%
AC CURRENT: 0.8A/115VAC 0.45A/230VAC
INRUSH CURRENT (maX.): COLD START 35A/ 115VAC 70A/ 23OVAC
LEAKAGE CURRENT (maX.): 0.25mA/ 240VAC
