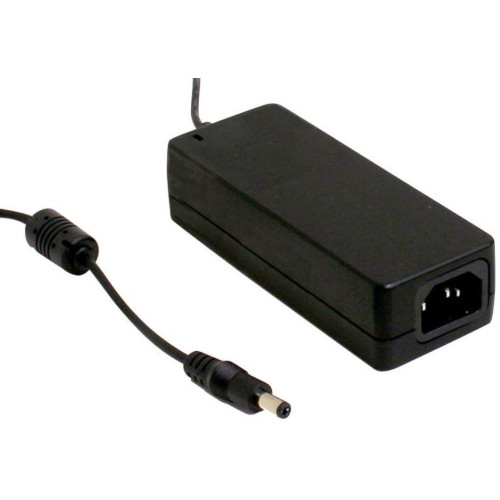

GST60A12-P1J, AC/DC Desktop Adaptor no load cons <0.075W 60W 12Vdc 5A Class I Level VI
GST60A12-P1J
AC/DC Desktop Adaptor no load cons <0.075W 60W 12Vdc 5A Class I Level VI
Features
- Globa| certificates
- Universal AC input / Full range
- 3 pole AC inlet lEC320-C14,Class I power unit
- No load power consumption< 0.075W
- Energy efficiency Level VI
- Comply with EISA 2007/DoE,NRCan,Korea K-MEPS, AU/NZ MEPS,EU ErP and C0C Version 5
- Protections: Short circuit / Overload / Over voltage
- Fully enclosed plastic case
- Pass LPS
- -30~+70°C wide range working temperature
- LED indicator for power on
- 3 years warranty
Specifications
OUTPUT
DC VOLTAGE: 12V
RATED CURRENT: 5A
CURRENT RANGE: 0 ~ 5A
RATED POWER: 60W
RIPPLE & NOISE (maX.): 120mVp-p
VOLTAGE TOLERANCE. ±3.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±3.0%
SETUP, RISE TIME: 1000ms, 50ms / 230VAC 1000ms,50ms/115VAC at full load
HOLD UP TIME (Typ.): 50ms / 230VAC 15ms / 115VAC at full load
INPUT
VOLTAGE RANGE: 90 ~ 264VAC
FREQUENCY RANGE: 47 ~ 63HZ
EFFICIENCY (Typ.): 89.5%
AC CURRENT: 1.4A/115VAC 1A/ 230VAC
INRUSH CURRENT (maX.): Cold start 35A/115AC 65A/ 230VAC
LEAKAGE CURRENT (maX.): 0.75mA/ 240VAC
