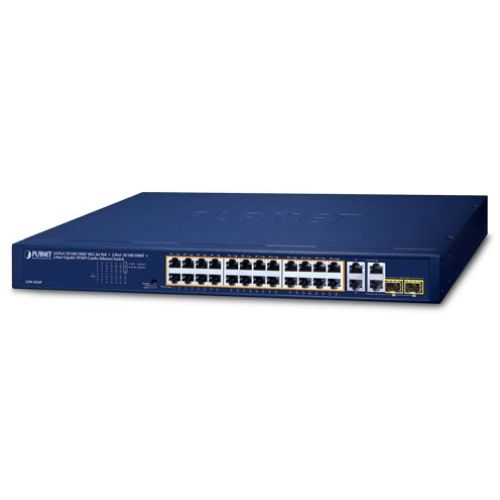

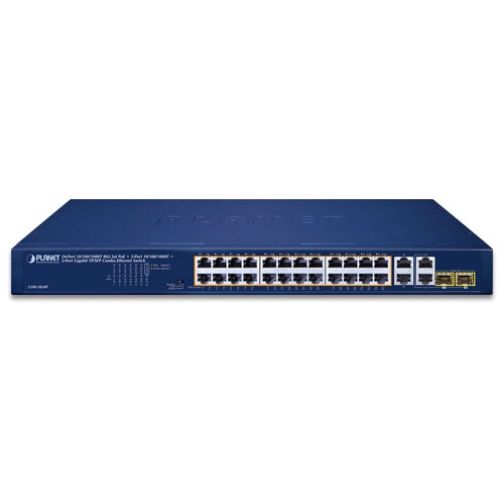

GSW-2824P, 24-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-Port Gigabit TP/SFP Combo Ethernet Switch (250W PoE Budget, Standard/VLAN/Extend mode, supports PD alive check)
GSW-2824P
24-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-Port Gigabit TP/SFP Combo Ethernet Switch (250W PoE Budget, Standard/VLAN/Extend mode, supports PD alive check)
SPEDIZIONE GRATUITA
Bisogno di aiuto?
Centralized Power Management for Gigabit Ethernet PoE Networking
To facilitate 32W PoE power network applications with Gigabit speed transmission, PLANET GSW-2824P is equipped with 24 10/100/1000BASE-T Gigabit Ethernet ports, 2 extra Gigabit TP ports and 2 1000BASE-X SFP combo interfaces with the inner power system. With a total of 250 watts of PoE budget, it features high-performance Gigabit IEEE 802.3af PoE (up to 15.4W) and IEEE 802.3at PoE+ (up to 32W) capabilities on all ports.
By offering reliable switching technology and advanced networking features, the GSW-2824P optimizes the installation and power management of network devices such as wireless access points, VoIP phones, and security cameras. It also eliminates time and cost of deployment by integrating power and data switching into one unit and freeing network devices from restrictions of power outlet locations and the additional AC wiring.
Applications
Perfectly Integrated Solution for IP PoE Camera and NVR System
Particularly designed for the growing popular IP Surveillance applications, the GSW-2824P 802.3at PoE Switch is positioned as a Surveillance Switch for quick and easy PoE IP camera deployment with power feeding. The GSW-2824P provides both 802.3at and 802.3af PoE functions along with 24 10/100/1000BASE-TX ports featuring 32-watt 802.3at PoE in RJ45 interface, 2 extra Gigabit copper ports and 2 Gigabit SFP combo interfaces supporting high-speed transmission of surveillance images and videos.
Department / Workgroup PoE Network
Providing 24 PoE in-line power interfaces, the GSW-2824P can easily build a power that can centrally control IP phone system, IP camera system and wireless AP group for the enterprise. Cameras can be installed around the corner in the company or campus for surveillance demands. Without the power-socket limitation, the GSW-2824P makes the installation of cameras easier and more efficient.
Features
Physical Port
24-port 10/100/1000BASE-T RJ45 copper with PoE injector function
4 10/100/1000BASE-T RJ45 copper interfaces
2 1000BASE-X SFP combo interfaces, shared with Ports 27~28
Power over Ethernet
Complies with IEEE 802.3at Power over Ethernet Plus end-span PSE
Up to 24 ports of IEEE 802.3af / 802.3at devices powered (ports 1~24)
Supports PoE power up to 32 watts for each PoE port, with a total PoE budget of 250W.
Each port supports 54V DC power to PoE powered device.
Auto detects powered device (PD)
Supports PD alive function.
Circuit protection prevents power interference between ports.
Remote power feeding up to 100m in standard mode with 250m in extend mode
Hardware Specifications
10/100/1000BASE-T Copper Ports: 28 auto MDI/MDIX
1000BASE-X SFP/mini-GBIC Slots: 2
DIP Switch:
Selectable operation mode
- Standard
- VLAN
- Extend
Dimensions (W x D x H): 441.5 x 207.3 x 44 mm (1U height)
Enclosure: Metal
Weight: 3022g

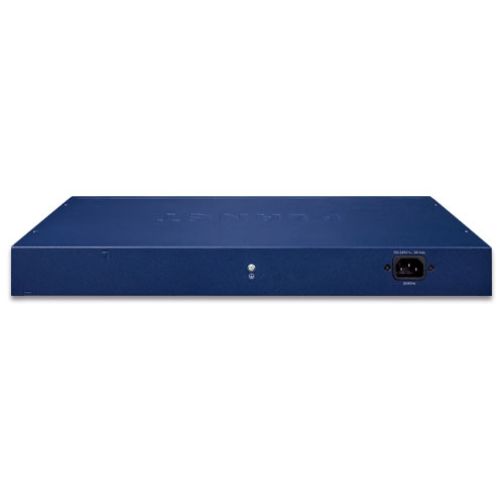

Power Requirements: 100~240V AC, 50/60Hz, 5A max.
Power Consumption/Dissipation: Max. 278 watts/948 BTU
Thermal Fan: 2
ESD Protection:
Contact discharge of ±6KV DC,
Air discharge of ±8KV DC
Surge Protection: ±6KV
Installation: Desktop or rack-mount installation
LED Indicators:
System
Power (Green)
10/100/1000T RJ45 Interfaces
10/100 LNK / ACT(Amber)
1000 LNK / ACT (Green)
PoE-in-Use(Amber)
1000X SFP Interfaces
1000 LNK / ACT (Green)
