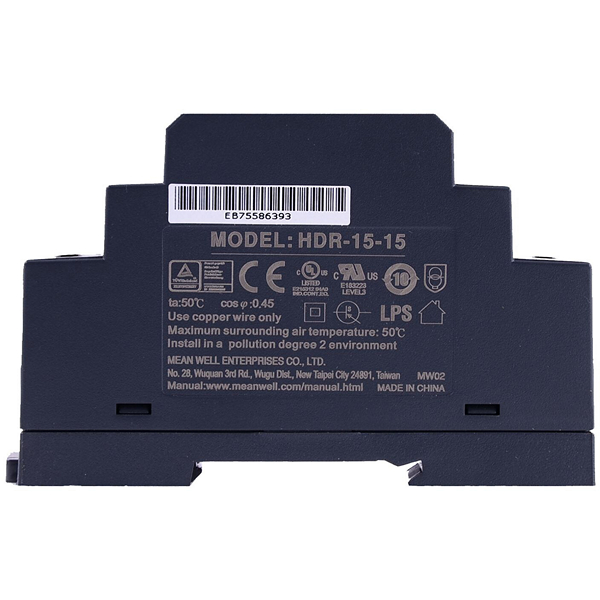

HDR-15-15

AC-DC DIN rail power supply 15W, input voltage range 85-264VAC, output 15VDC 1A, pass LPS, Ultra slim design with 17.5mm(1SU) width

Quantità':

Prezzo per pezzo

€ 17,40

(IVA esclusa)

€ 21,23 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 21,23

Disponibilità: 10 gg lav

Brand: MEAN WELL

SKU: 115968

Model: HDR-15-15

Line: Input Voltage Range 85-264VAC

Bisogno di aiuto?


HDR-15 is one economical ultra slim 15W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 17.5mm(1SU) in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC(277VAC operational) and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current.
HDR-15 is designed with plastic housing that it can effectively prevent user from electric hazards. With working efficiency up to 87%, the entire series can operate at the ambient temperature between -30℃ and 70℃ under air convection. It is equipped with constant current mode for overload protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for home automations and industrial control apparatus (IEC60950-1, UL508, UL60950-1, EN61558-2-16) make HDR-15 a very competitive power supply solution for household and industrial applications.

Applications

  • Household control system
  • Building automation
  • Industrial control system
  • Factory automation
  • Electro-mechanical apparatus

Features and Benefits

  • Ultra slim design with 17.5mm(1SU) width
  • Universal input 85~264VAC(277VAC operational)
  • No load power consumption<0.3W
  • Isolation class II
  • Pass LPS  (Limited power source)
  • DC output voltage adjustable
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection (working temperature:-30~+70°C)
  • DIN rail TS-35/7.5 or 15 mountable
  • Over voltage category Ⅲ
  • LED indicator for power on
  • 3 years warranty

Specifications

OUTPUT

DC VOLTAGE: 15V
RATED CURRENT: 1A
CURRENT RANGE: 0 ~ 1A
RATED POWER: 15W
RIPPLE & NOISE (max.): 120mVp-p
VOLTAGE ADJUSTMENT RANGE: 13.5 ~ 18V
VOLTAGE TOLERANCE: ±1.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 2000ms, 80ms/230VAC    2000ms, 80ms/115VAC at full load
HOLD UP TIME (Typ.): 30ms/230VAC          12ms/115VAC at full load

INPUT

VOLTAGE RANGE: 85 ~ 264VAC  (277VAC operational )
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 85.5%
AC CURRENT (Typ.): 0.5A/115VAC          0.25A/230VAC
INRUSH CURRENT (Typ.): COLD START 25A/115VAC         45A/230VAC

PROTECTION

OVERLOAD: 110 ~ 145% rated output power
Protection type: Constant current limiting, recovers automatically after fault condition is removed

OVER VOLTAGE: 18.8 ~ 22.5V
Protection type: Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.: -30 ~ +70°C (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing


STORAGE TEMP., HUMIDITY: -40 ~ +85°C, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/°C (0 ~ 50°C) RH non-condensing
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
OPERATING ALTITUDE: 2000 meters
OVER VOLTAGE CATEGORY:  Ⅲ;According to EN61558, EN50178,EN60664-1, EN62477-1;altitude up to 2000 meters

SAFETY & EMC

SAFETY STANDARDS: UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1 approved; Design refer to TUV EN60950-1
WITHSTAND VOLTAGE: I/P-O/P:4KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION:
EN55032(CISPR32) Conducted: Class B
EN55032(CISPR32) Radiated: Class B
EN61000-3-2 Harmonic Current: Class A
EN61000-3-3 Voltage Flicker

EMC IMMUNITY:
EN55024, EN55035,  EN61000-6-2, EN61204-3
EN61000-4-2 ESD: Level 3, 8KV air; Level 2, 4KV contact, criteria A
EN61000-4-3 Radiated Susceptibility: Level 3, criteria A
EN61000-4-4 EFT/Burest: Level 3, criteria A
EN61000-4-5 Surge: Level 4,2KV/L-N, criteria A
EN61000-4-6 Conducted: Level 3, criteria A
EN61000-4-8 Magnetic Field: Level 4, criteria A
EN61000-4-11 Voltage Dips and interruptions: >95% dip 0.5 periods, 30% dip 25 periods,
                                                                           >95% interruptions 250 periods

MTBF: 1166K hrs min.      MIL-HDBK-217F (25℃)
DIMENSIONS: (WxHxD) 17.5 x 90 x 54.5 mm
