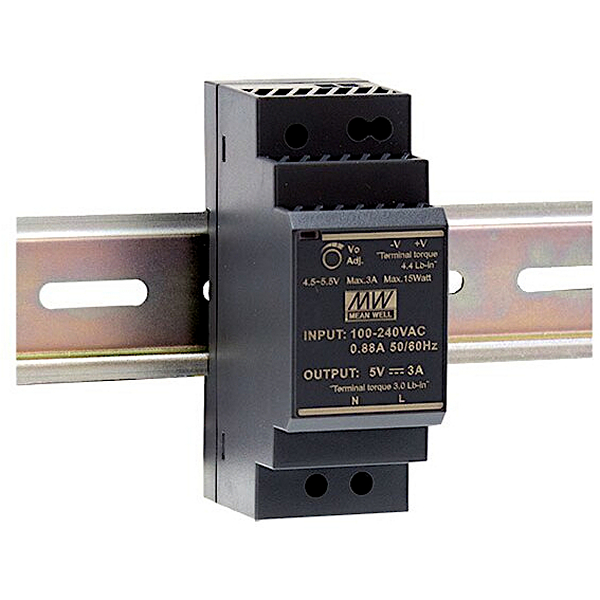

HDR-30-5 Mean Well Alimentatori Guida DIN

HDR-30 is one economical ultra slim 30W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 35mm(2SU) in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC(277VAC operational) and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current.
HDR-30 is designed with plastic housing that it can effectively prevent user from electric hazards. With working efficiency up to 90%, the entire series can operate at the ambient temperature between -30℃ and 70℃ under air convection. The complete protection functions and relevant certificates for home automations and industrial control apparatus (IEC62368-1, UL508, UL62368-1, EN61558-2-16) make HDR-30 a very competitive power supply solution for household and industrial applications.

Applications

• Household control system
• Building automation
• Industrial control system
• Factory automation
• Electro-mechanical apparatus

Features

• Ultra slim design with 35mm(2SU) width
• Universal input 85~264VAC(277VAC operational)
• No load power consumption<0.3W
• Isolation class II
• Pass LPS  (Limited power source)
• DC output voltage adjustable
• Protections: Short circuit / Overload / Over voltage
• Cooling by free air convection (working temperature:-30~+70°C)
• DIN rail TS-35/7.5 or 15 mountable
• Over voltage category Ⅲ
• LED indicator for power on
• 3 years warranty

Specifications

OUTPUT

DC VOLTAGE: 5V
RATED CURRENT: 3A
CURRENT RANGE: 0 ~ 3A
RATED POWER: 15W
RIPPLE & NOISE (max.): 80mVp-p
VOLTAGE ADJUSTMENT RANGE: 4.5 ~ 5.5V
VOLTAGE TOLERANCE: ±2.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 500ms, 50ms/230VAC    500ms, 50ms/230VAC at full load
HOLD UP TIME (Typ.): 30ms/230VAC          12ms/115VAC at full load

INPUT

VOLTAGE RANGE: 85 ~ 264VAC  (277VAC operational )
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 82%
AC CURRENT (Typ.): 0.88A/115VAC          0.48A/230VAC
INRUSH CURRENT (Typ.): COLD START 25A/115VAC         45A/230VAC

PROTECTION

OVERLOAD: 105 ~ 160% rated output power
Hiccup mode when output voltage <50%, recovers automatically after fault conditions is removed
Constant current limiting within 50% ~ 100% rated output voltage, recovers automatically after fault condition is removed

OVER VOLTAGE: 5.75 ~ 7.5V
Protection type: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70°C (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85°C, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/°C (0 ~ 50°C) RH non-condensing
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
OPERATING ALTITUDE: 2000 meters
OVER VOLTAGE CATEGORY:  Ⅲ;According to EN61558, EN50178,EN60664-1, EN62477-1;altitude up to 2000 meters

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, U 508, TUV EN61558-2-16 IEC62368-1, EAC TP TC 004, BSMI CNS14336-1 approved; Design refer to TUV EN62368-1
WITHSTAND VOLTAGE: I/P-O/P:4KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION:
EN55032(CISPR32), CNS13438 Conducted: Class B
EN55032(CISPR32), CNS13438 Radiated: Class B
EN61000-3-2 Harmonic Current: Class A
EN61000-3-3 Voltage Flicker

EMC IMMUNITY:
EN55024, EN55035,  EN61000-6-2, EN61204-3
EN61000-4-2 ESD: Level 3, 8KV air; Level 2, 4KV contact, criteria A
EN61000-4-3 Radiated Susceptibility: Level 3, criteria A
EN61000-4-4 EFT/Burest: Level 3, criteria A
EN61000-4-5 Surge: Level 4,2KV/L-N, criteria A
EN61000-4-6 Conducted: Level 3, criteria A
EN61000-4-8 Magnetic Field: Level 4, criteria A
EN61000-4-11 Voltage Dips and interruptions: ＞95% dip 0.5 periods, 30% dip 25 periods,
                                                                           ＞95% interruptions 250 periods

MTBF: 968.1K hrs min.      MIL-HDBK-217F (25℃)
DIMENSIONS: (WxHxD) 35 x 90 x 54.5 mm
