HGO 433-868-05CO sirio antenne uhf base

 Description

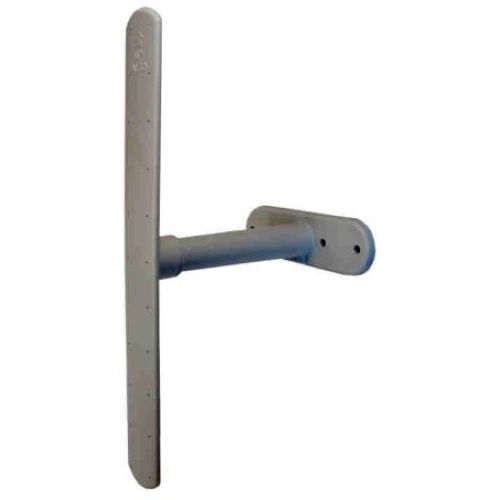

Dual-band omnidirectional base station antenna conceived to work on 433MHz and 868MHz ISM systems. lt is protected by thermoplastic UV stabilized material for the best robustness and long life for outdoor and indoor installations. It is supplied with plastic bracket and fixing hardware for an easy installation on the mast or on the wall and it comes with 50 cm or 5m low loss cable /SMA-m

Specifications

Electrical Data

Type: Multi Band Dipole / Array
Frequency Range @ SWR ≤ 2:  415-465 MHZ & 815—89O MHZ for ISM433 & ISM868
impedance: 50 Ω
Radiation (H-plane): 360° Omnidirectional
Radiation (E-plane):
Beamwidth @ -3dB = 55° @ 433 MHZ
Beamwidth @ -3dB = 45° @ 868 MHZ
Radiation angle deg.: 0°
Polarization: Linear Vertical
Gain:
2 dBi for 433 MHZ
4 dBi for 868 MHZ
Max Power: 20 Watts (CW) @ 30°C ambient
Cable Type / Length: White Low Loss / 50cm
Connector: SMA-male (other type on request, acc min q.ty)

Mechanical Data

Materials: Thermoplastic UV Stabilized Grey RAL 7035, galvanized steel hardware
Wind Load @150 km/h: 36N
Wind Resistance: 200 Km/h
Wind Surface: 0.02 m2
Operating temperature: -20°C to + 80°C
Dimensions (approx.): 335 x 166 x 144 mm with bracket
Weight (approx.): 350 gr
