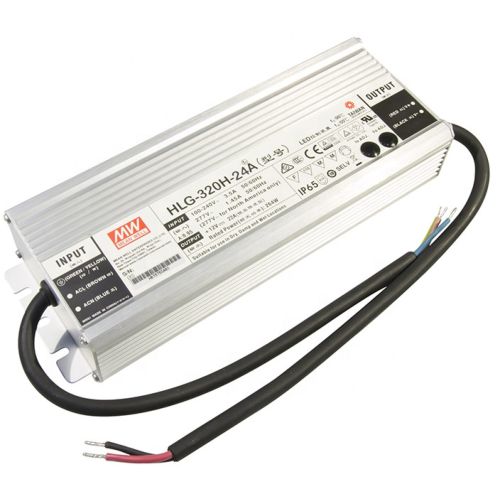

HLG-320H-24A Mean Well AC DC Driver Led

Features

• Constant Voltage + Constant Current mode output
• Metal housing with class I design
• Built-in active PFC function
• IP67 / IP65 rating for indoor or outdoor installations
• Function options: output adjustable via potentiometer; 3 in 1 dimming
• Typical lifetime > 62000 hours
• 7 years warranty

Applications

1. LED street lighting
2. LED high-bay lighting
3. Parking space lighting
4. LED fishing lamp
5. LED greenhouse lighting
6. Type “HL” for use in Class I , Division 2 hazardous (Classified) location.

Description

HLG-320H series is a 320W AC/DC LED driver featuring the dual mode constant voltage and constant
current output. HLG-320H operates from 90 ~ 305VAC and offers models with different rated voltage ranging
between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is
able to operate for -40°C ~ +90°C case temperature underfree air convection. The design of metal housing
and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H
is equipped with various function options, such as dimming methodologies, so as to provide the optimal design
flexibility for LED lighting system.

Specifications

OUTPUT

DC VOLTAGE 24V
CONSTANT CURRENT REGION: 12 ~ 24V
RATED CURRENT: 13.34A
RATED POWER: 320.16W
RIPPLE & NOISE (maX.): 150mVp-p

INPUT

VOLTAGE RANGE: 90 ~ 305VAC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.) (230Vac): 94%
EFFICIENCY (Typ.) (277Vac): 94.5%
AC CURRENT (Typ.): 3.5A/115VAC   1.65A/230VAC   1.45A/277VAC
