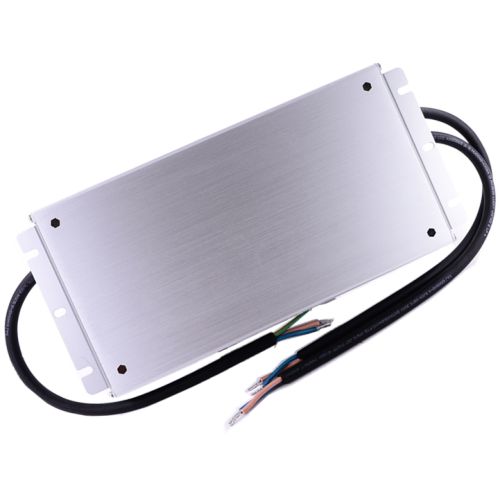

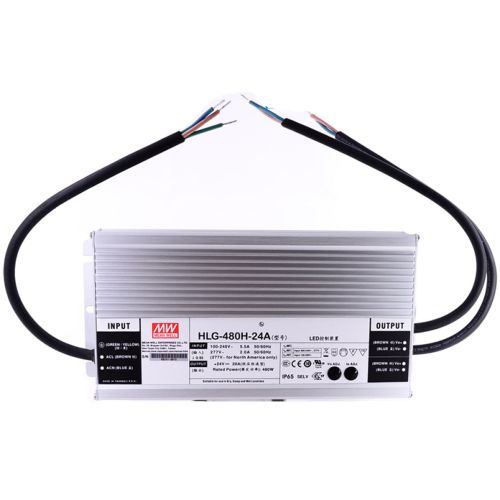

HLG-480H-24A
AC/DC Driver LED Metal case constant voltage 480W 90-305Vac 24Vdc 20A IP65 PFC Function Io adjustable with built-in potentiometer
Features
- Constant Voltage + Constant Current mode output
- Metal housing with class I design
- Built-in active PFC function
- lP67/ IP65 design for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off, isolated design) ; smart timer dimming; junction box
- Typical lifetime > 62000 hours
- 7 years warranty
Applications
- LED Harbour
- LED greenhouse lighting
- LED statium lighting
- LED mining lighting
- Type “HL” for use in Class I ,Division 2 hazardous(Classified) location
Description
HLG-48OH series is a 480W AC/DC LED driver featuring the dual mode constant voltage and constant
current output. HLG-48OH operates from 90 ~ 305VAC and offers models with different rated voltage ranging
between 24V and 54V. Thanks to the high efficiency up to 95.5%, with the fanless design, the entire series is
able to operate for -40°C ~ +90°C case temperature under free air convection. The design of metal housing and
IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications.HLG-48OH
is equipped with various function options, such as dimming methodologies, so as to provide the optimal design
flexibility for LED lighting system.
Specifications
OUTPUT
DC VOLTAGE 24V
CONSTANT CURRENT REGION Note.4 12~24V
RATED CURRENT 20A
RATED POWER 480W
RIPPLE & NOISE (max.) Note.2 200mVp-p
INPUT
VOLTAGE RANGE: 90 ~ 305VAC
FREQUENCY RANGE 47 ~ 63HZ
EFFICIENCY (Typ.): 230VAC: 94%
EFFICIENCY (Typ.): 277VAC: 94.5%
AC CURRENT (Typ.): 5A/115VAC 2.45A/ 230VAC 2A/ 277VAC
