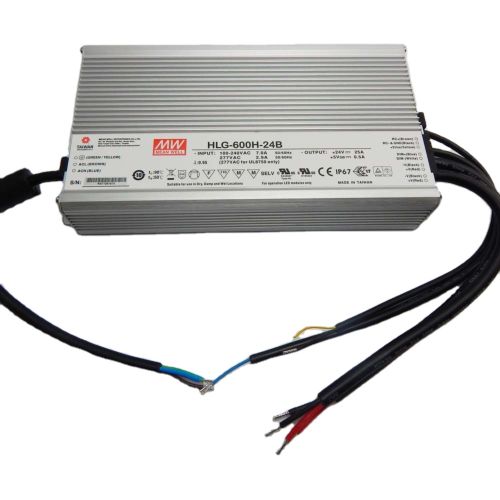

HLG-600H-24B Mean Well AC DC Driver Led

Features

• Constant Voltage + Constant Current mode output
• Metal housing with class I design
• Standby power consumption <0.5W at remote off
• lP67/ IP65 rating forindoororoutdoorinstallations
• Function options: output adjustable via potentiometer; 3 in 1 dimmi"9 (dim-T0-Off)
• Typical lifetime > 62000 hours
• 7 years warranty

Applications

1. LED high-bay lighting
2. Parking space lighting
3. LED fishing lamp
4. LED greenhouse lighting
5. Type "HL" for use in Class I , Division 2 hazardous (Classified) location.

 Description

HLG-600H series is a 600W AC/DC LED driver featuring the dual mode constant voltage and constant
current output. HLG-600H operates from 90 ~ 305VAC and offers models with different rated voltage ranging
between 12V and 54V. Thanks to the high efficiency up to 96%, with the faniess design, the entire series is
able to operate for -40°C ~ +90°C case temperature underfree air convection. The design of metal housing
and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-600H
is equipped with various function options, such as dimming methodologies, so as to provide the optimal design
flexibility for LED lighting system.

Specifications

OUTPUT

DC VOLTAGE: 24V
CONSTANT CURRENT REGION: 12~24V
RATED CURRENT: 25A
RATED POWER: 600W
RIPPLE & NOISE (max.): 150mVp-p

INPUT

VOLTAGE RANGE: 90 ~ 305VAC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 230VAC: 95%
EFFICIENCY (Typ.): 277VAC: 95%
AC CURRENT (Typ.): 7A/115VAC 3.3A/ 230VAC 2.9A / 277VAC
