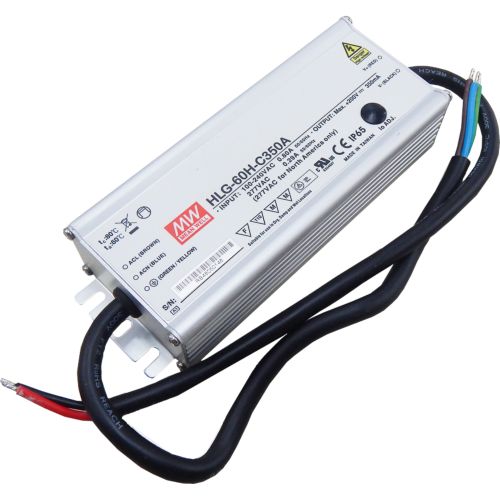

HLG-60H-C350A Mean Well AC DC Driver Led

 Features

• Constant Current mode output
• Metal housing with Class I design
• Built-in active PFC function
• IP67 / IP65 design for indoor or outdoor installations
• Function options: output adjustable via potentiometer; 3 in 1 dimming; Timer dimming
• Typical lifetime>62000 hours
• 7 years warranty

Applications

• LED street lighting
• LED fishing lamp
• LED harbor lighting
• LED building architectural lighting
• LED greenhouse lighting
• LED bay lighting

Description

HLG-60H-C series is a 70W AC/DC LED driver featuring the constant current mode and high voltage output.
HLG-60H-C operates from 90~305VAC and offers models with different rated current ranging between 350mA
and 700mA. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate
for -40°C ~ +80°C case temperature under free air convection. The design of metal housing and IP67/IP65
ingress protection level allows this series to fit both indoor and outdoor applications. HLG-60H-C is
equipped with various function options, such as dimming methodologies, so as to provide the optimal design
flexibility for LED lighting system.

Specifications

OUTPUT

RATED CURRENT: 350mA
RATED POWER: 70W
CONSTANT CURRENT REGION: 100 ~ 200V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer): 210 ~ 350mA
CURRENT RIPPLE: 5.0% max. @rated current

INPUT

VOLTAGE RANGE: 90 ~ 305VAC
FREQUENCY RANGE: 47 ~ 63HZ
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 0.69A/115VAC   0.35A/230VAC   0.29A/277VAC
