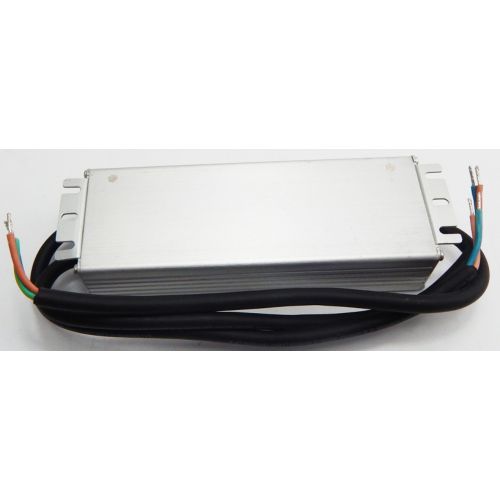

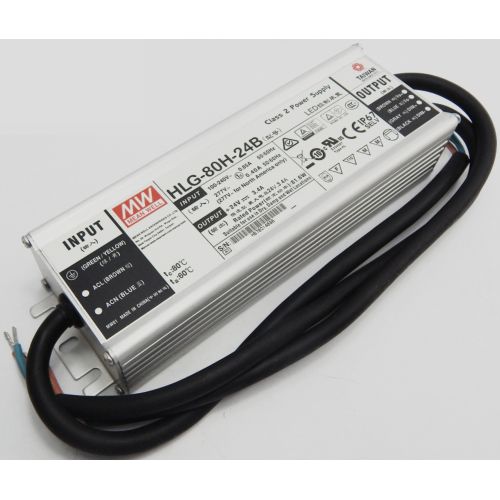

HLG-80H-24B
AC/DC Enclosed LED Single output 80W 24Vdc 3.4A with PFC IP67 Dimmer 3in1
Bisogno di aiuto?
Features
- Constant Voltage + Constant Current mode output
- Metal housing with class I design
- Built-in active PFC function
- Class 2 power unit
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer
- 3 in 1 dimming; Timer dimming
- Typical lifetime > 62000 hours
- 7 years warranty
Applications
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
- LED greenhouse lighting
- Type “HL” for use in Class I , Division 2 hazardous (Classified) location.
Description
HLG-80H series is a 80W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-80H operates from 90 ~ 305VAC and offers models with different rated voltage rangingbetween 12V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40°C ~ +80°C case temperature underfree air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-80H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Specifications
Output
DC VOLTAGE: 24V
CONSTANT CURRENT REGION: 14.4 ~ 24V
RATED CURRENT: 3.4A
RATED POWER: 81.6W
RIPPLE & N0lSE(max.): 150mVp-p
VOLTAGE ADJ. RANGE: Adjustable forA-Type only (via built-in potentiometer) 22~27V
CURRENT ADJ. RANGE: Adjustable forA/AB-Type only (via built-in potentiometer) 2.04 ~ 3.4A
VOLTAGE TOLERANCE: 1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1200ms,200ms/115VAC 500ms,200ms/230VAC
HOLD UP TIME (Typ.): 16ms at full load 230VAC /115VAC
Input
VOLTAGE RANGE: 90 ~ 305VAC 127 ~ 431VDC
FREQUENCY RANGE: 47 ~ 63HZ
POWER FACTOR (Typ.): PF ≥ O.96/115VAC, PF ≥ 0.96/230VAC, PF ≥ 0.94/277VAC @ full load
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≥60% / 115VAC,230VAC; @ load≥75%/277VAC)
EFFICIENCY (Typ.): 90.5%
AC CURRENT (Typ.): 0.85A/115VAC
