ICA-4280 Planet Ip cameras

 Excellently Efficient Surveillance Video

PLANET ICA-4280 PoE IP Camera delivers excellent picture quality in H.264(+)/H.265 2 mega-pixel resolutions. Users will benefit from reduced 50% bandwidth and data storage through more efficient video compression.
Incorporating the Full HD CMOS Sensor and 25-meter Smart IR illuminators, which are specially designed for surveillance applications, the ICA-4280 provides sharp images under all lighting conditions. Being able to operate under the temperature range from -20 to 60 degrees C, the ICA-4280, equipped with a tough IP67-rated metal housing and its outdoor and handy features, enables you to easily install the camera in any public areas, such as buildings, gardens, parking areas, markets, railway stations and hospitals. It ensures the highest level of reliability for mission-critical applications in any difficult environment.

Applications

High Scalability for Various Industrial IP Surveillance Solutions

PLANET high-resolution ICA-4280 can offer various surveillance applications as it can capture clear images and is perfect for identifying objects and persons. Moreover, the ICA-4280 supports 802.3af PoE PD interface, and facilitates the outdoor surveillance applications without worrying the electric source. Besides, Planet VMS, NVR, HDVR, Web UI and App management make you easy to do the configuration and live viewing. With powerful features offered, the ICA-4280 no doubt is your best choice for outdoor surveillance solution.

Features and Benefits

Camera

• 1/2.9" Full HD CMOS Sensor
• 3.6mm lens with 3MP lens
• 0.01 lux minimum illumination at F1.2

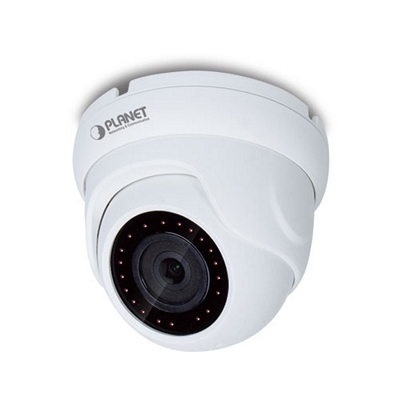

• Built-in smart IR illuminators, effective up to 25 meters
• Removable IR-cut filter for Day & Night function

Specifications

Camera

Image Sensor: 1/2.9" Full HD CMOS Sensor
Lens: Focus Length: 3.6mm
Focus Control: Fixed
Lens Type: Fixed
Pixels: 3MP
Angle of view:
- Horizontal: 75 degrees
- Vertical: 58 degrees
Min. Illumination: 0.01 lux (color) @ F1.2
2lux (B/W) @ IR on
IR Illuminations: Built-in smart IR illuminators, effective up to 25 meters
*The IR distance is based on the environment
Effective Pixels (H x V): 1920 x 1080

Power over Ethernet

PoE Standard: IEEE 802.3af PoE PD


Video Compression: H.264(+)/H.265/JPEG/MJPEG
Bitrate: 32~16384kbps
Frame Rate: Up to 30fps for all resolutions
Bitrate: 128~10240bps
Shutter Time: Auto: PAL 1/25-1/10000 sec; NTSC 1/25-1/10000 sec
Image Setting: Day and night mode
Image Adjustment
Exposure Settings
BackLight Settings
Day and night switch
White Balance
Video Adjustment
Image Enhancement
Defog Model
OSD Settings (Text, time and date overlay and overlay image on video)
Motion detection, video tampering
3 configurable regions of privacy mask to protect personal privacy
Streaming: Streaming over UDP, TCP, HTTP, or HTTPS
Controllable frame rate
M-JPEG streaming over HTTP (server push)
Constant and variable bit rate
ROI (Region of Interest)

Audio

Audio Streaming: One-way audio
Audio Compression: G.711A/G.711U
Audio Input: External microphone input

Networking & Configuration

Standards Compliance: IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3af Power over Ethernet
Protocol: IPv4 DHCP Client and IPv4 Static IP Address management
PLANET DDNS and Easy DDNS, FTP, SMTP, P2P, Cloud, RTSP Encryption and IPEYE
Security: User Management options for various authority
- Admin
- Operator
- Guest
Users: On-line monitoring of 16 clients at the same time
Web Brower: IE8~11, Google Chrome, Firefox, Mac Safari
APP: YES (Android, IOS with P2P QR code)
Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Nederlands, Czech, Vietnamese

System Integration

Application Programming Interface: ONVIF compliant
Alarm Triggering: Motion detection/ video tampering
Alarm Events: Event snapshot upload via FTP
Notification via email, and HTTP

Hardware Specification

Power Requirements: 12V DC, 0.75A
IEEE 802.3af
Power Consumption: 8W (IR on)
Dimensions (Φ x L): 93 x 74mm
Weight: 400g
Reset Button: YES
LED: 14μ x 18pcs

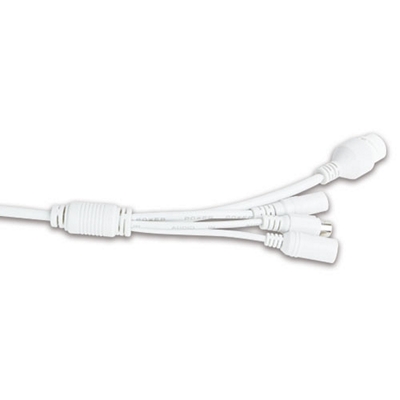

Connector: 10/100Mbps Ethernet, waterproof/dustproof RJ45 connector
DC power jack
RCA audio in (white)
Enclosure: IP67 metal case

Standards Conformance

Regulatory Compliance: FCC Part 15 Class B, CE

Environment

Operating: Temperature: -20 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage: Temperature: -20 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
