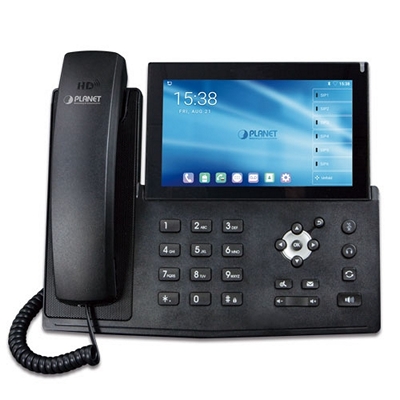

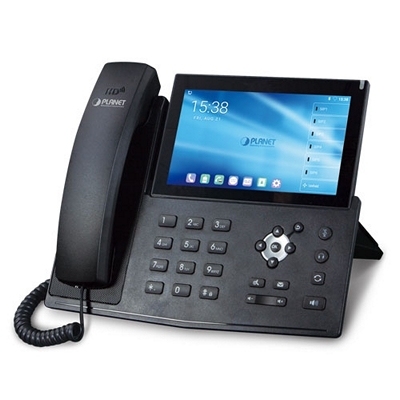

ICF-1900 Planet VoIP Phone

 Video Conference Phone with 7-inch Touch Screen

As a high-end enterprise SIP conference phone with Android 9.0 OS, PLANET ICF-1900 provides a more intelligent and smoother touch operation experience for the users.
The ICF-1900 is a 7-inch high definition touch color screen SIP conference phone with optional 1080p USB camera. This latest innovative advanced color IP multimedia phone creates an immersive, face-to-face experience over the network. Through the powerful combination of  Android 9.0 OS technologies and design, it supports a greater compatibility and more powerful functions. Its large display and movable icons on interface provide the direct access to frequently-used functions and intelligent touch full keypad with ease of use. Its high resolution makes video conferencing very practical, comfortable and high-quality.

Applications

Enterprise Conference Telephony Deployment of ICF-1900
The ICF-1900 comes with exceptional audio quality and user-friendly features and provides 7-inch color touch screen, built-in PoE, Bluetooth 4.2 and 2.4G/5G wireless that make daily communication smarter and simpler. Matching an optional 1080p USB camera , the ICF-1900 can deliver a superb audio and video for group conferencing.

Features and Benefits

Highlights

• 7-inch color touch screen with Android 9.0 OS
• Plug and Play optional 1080p USB camera with 720p 30fps H.264 video call
• IETE SIP compliant with Transport Layer Security
• Up to 20 SIP lines with 112 one-touch DSS keys
• Dual Gigabit and IEEE 802.3af/at PoE compliant
• Built-in Bluetooth 4.2 and 2.4G/5G Wi-Fi
• Wideband G.722 HD and Opus audio codec with handset and hands-free function

Audio and Video Features

• 720p@30fps HD H.264 video call
• Audio codec: Opus, G.722, G.722.1, G.722.1C,G.711 (A/µ), G.729AB, iLBC
• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
• Full-duplex hands-free speakerphone with AEC
• Noise Reduction (NR) and Packet Loss Concealment (PLC)

Specifications

Interface

Lines (Direct Numbers): 20 SIP Lines
Display and Indicator: 112 one-touch DSS keys on 7-inch (1024 x 600) color touch screen
5 points multi-touch surface
Screensaver and wallpaper
LED for call and message waiting indication
Intuitive user interface with icons and soft keys
Multilingual user interface
Caller ID with name, number and photo
Feature Keys: 26 keys, including
5 x Function keys (Hold, MWI, Mute, Headset, Redial)
4 x Navigation keys
1 x OK key
1 x Return key 
12 x Standard Phone Digits keys
2 x Volume Control keys – Up and Down
1 x Hands-free key

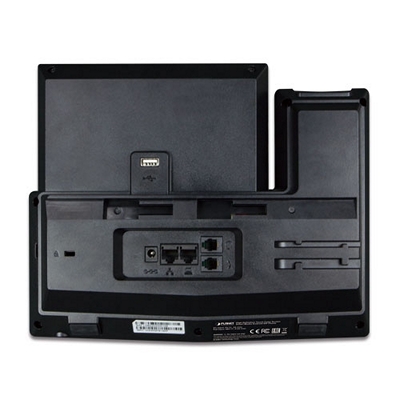

Network Interfaces: Dual-port Gigabit Ethernet:
Network x 1 (802.3af/at PoE enabled)
PC x 1 (Bridged Network)
Built-in Wi-Fi (2.4GHz/5Gz)
Built-in Bluetooth 4.2
Connectors: RJ9 Port x 2: Handset x 1, Headset x 1
USB2.0 Port x 1: Standard A, Connect with camera
Safety keyhole x 1

Android bundled Applications

Operating System: Android 9.0 OS with higher security and better compatibility
Files, Calendar, Gallery, Browser, Email, Calculator, Notepad,
Sound Recorder, Clock, Video, Music
Third-party Android application support

Network and Provisioning

Network: IP Mode:IPv4
IP Configuration: Static / DHCP
Network Access Control: 802.1x
VPN: OpenVPN (Requires third-party app support)
VLAN, LLDP, CDP, QoS
Protocols: SIP2.0 over UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, CDP, LLDP, PPPoE, 802.1x, OpenVPN (Requires third-party app support), SNTP, FTP/TFTP, HTTP/HTTPS, TR-069
Deployment & Maintenance: Auto-provisioning via FTP, TFTP, HTTP/HTTPS, DHCP OPT66, SIP
PNP, TR-069
Web management portal, Telnet
Encrypted configuration files download with AES
Web upgrade, factory reset data
The third-party communication App

Features

Audio Features: HD voice microphone/speaker (handset/hands-free, 0 ~ 7KHz
frequency response)
HAC handset
Wideband ADC/DAC 16KHz sampling
Narrowband codec: G.711a/u, G.729AB, iLBC
Wideband codec: G.722, Opus
Full-duplex acoustic echo canceller (AEC)
Noise reduction (NR)
Packet loss concealment (PLC)
Dynamic adaptive jitter buffer
DTMF: In-band, out-of-band, DTMF-relay (RFC2833), SIP Info
Video Features: Video decoding: H.264
Video call resolution: CIF/VGA/4CIF/720P/1080P
Image format: JPEG/PNG/BMP
Video format: MP4
Bandwidth selection: 64kbps~4Mbps
Frame rate selection: 5~30fps
Video from remote site can be displayed in full screen
3-way video conferencing
Self-view (local video preview)
Phone Features: Local Phonebook (2000 entries)
Remote Phonebook (XML/LDAP, 2000 entries)
Intelligent Search for Contacts and Call Log
Call logs (In/out/missed, 1000 entries)
Black/White List Call Filter
Screen saver
Voice Message Waiting Indication (VMWI)
Programmable DSS/Soft keys
Network Time Synchronization
Built-in Bluetooth 4.2: Supports Bluetooth headset/ Bluetooth of Mobile Device
Built-in Wi-Fi: 2.4GHz, 802.11 b/g/n, 5GHz, 802.11 a/n/ac
Support Recording
Action URL / Active URI
UaCSTA
Audio/Video Recording
SIP Hotspot
Group Broadcasting
Action Plan
Group listening
Call Features: Call out / Answer / Reject
Mute / Unmute (Microphone)
Call Hold / Resume
Call Waiting
Intercom
Caller ID Display
Speed Dial
Anonymous Call (Hide Caller ID)
Call Forwarding (Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Call Parking/Pick-up (Depending on server)
Redial
Do-Not-Disturb
Auto-Answering
Voice Message (On IP PBX or SIP server)
5-way Audio Conferencing
Hot Line
Hot desking
BLF (Busy Lamp Field)

Environment

Power Requirements: IEEE 802.3af/at (Network port)
5V DC, 2000mA (optional external power supply)
Power Consumption: PoE: 1.596~11.86W
Adapter: 0.907~9.38W
Operating Temperature: 0 ~ 45 degrees C
Operating Humidity: 10 ~ 95% (non-condensing)
Weight: 770g
Dimensions (W x D x H): Desktop Stand (Angle 1): 268 x 185 x 189 mm
Desktop Stand (Angles 2): 268 x 201 x 168 mm
Emission: CE, FCC, RoHS
