ICS5556-48GT8XS 3ONEDATA Rackmount Ethernet Switches



10 Gigabit Modular Layer 3 Industrial Ethernet Switch, 48 port 10/100/1000Base-T(X)+8 port 1G/10G SFP(SFP slot) , dual power supply 100~240VAC/DC, 2U Rack-mount


Prezzo per pezzo

€ 14.386,24

(IVA esclusa)

€ 17.551,21 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 17.551,21

Disponibilità: 10 gg lav


SKU: 119356

Model: ICS5556-48GT8XS

Bisogno di aiuto?

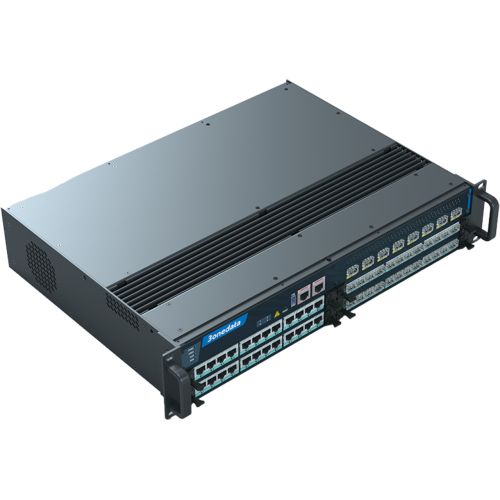

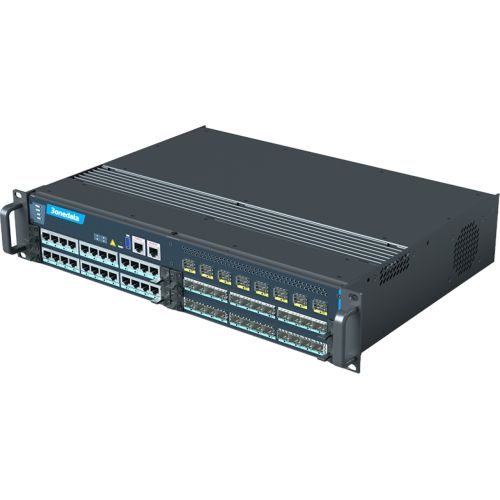

lCS5556 series are 56-port Gigabit/10Gigabit layer 3 Ethernet switches, which adopts modular structure design and supports multiple combinations of frame and board card. The frame supports 8 10Gigabit SFP + slots, the board cards support 12 Gigabit SFP slots or RJ45(optional), and the whole machine adopts 2U rack installation. Abundant numbers of interfaces, bandwidth of Gigabit/10Gigabit combination and ability to transmit large amounts of video, voice and data with high performance and high speed meet the application requirements of large-scale industrial network.

Features and Benefits

  • SNMPv1/v2c/v3 is used for network management of various levels
  • RMON can be used for efficient and flexible network monitoring
  • Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
  • QoS supports real-time traffic classification and priority setting
  • LLDP can achieve automatic topology discovery, which is convenient for visual management
  • DHCP server can be used for distributing IP address with different strategies
  • DHCP Snooping can ensure DHCP client gets IP address from legal DHCP server
  • DHCP relay function can realize IP address, gateway, DNS configuration cross network segment
  • File management is convenient for the device rapid configuration and online upgrading



SNMP v1/v2c/v3 Centralized Management Devices, RMON, Port Mirroring, QoS, LLDP, DHCP Server/Relay, File Management, Log Management, Port Statistics, ARP


User permission rating, ACL, NAT, port alarm, power alarm, storm suppression, Telnet/SSH configuration, DHCP Snooping, link flapping protection, aggregation protection, loop detection

Switch Function

802.1Q VLAN, Port Trunking, Bandwidth Management, Flow Control, Port Isolation

Unicast / Multicas

Static Multicast, Multicast Routing, IGMP-Snooping, PIM-SM, PIM-DM

Redundancy Technology



Ping, Traceroute, Port Loopback, SFP Digital Diagnosis

Routing Technique


Time Management



10Gigabit SFP+: 1000/1 OGBase-X self-adaptive SFP+ slot
Gigabit SFP: 100/1000Base-X self-adaptive SFP slot
Gigabit copper port: 10/100/1000Base-T(X) self-adaptive RJ45, automatic flow control, support full/half duplex mode, MDI/MDI-X self-adaption
USB interface: Type-A USB 2.0 Female, support system debugging and configuration file management
CONSOLE port: CLI command line management port(RS-232), RJ45
MANAGER port: 10/100/1000Base-T(X) self-adaptive RJ45, automatic flow control, support full/half duplex mode, MDI/MDI-X self- adaption for device network management
