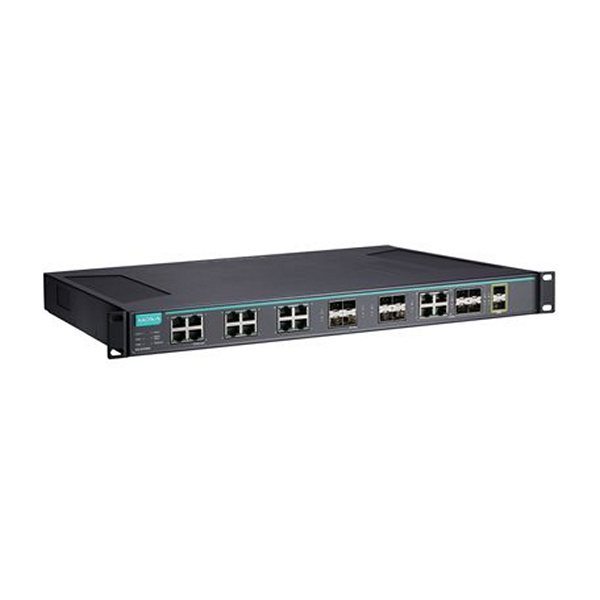

ICS-G7526A-8GSFP-2XG-HV-HV-T
Layer 2 full Gigabit managed Ethernet switch with 12 10/100/1000BaseT(X) ports, 8 100/1000BaseSFP slots, 4 10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports, and 2 10GbE SFP+ slots, 2 isolated power supplies (85 to 264 VAC), -40 to 75°C operating te
Certificati
Features and Benefits
- 24 Gigabit Ethernet ports plus up to 2 10G Ethernet ports
- Up to 26 optical fiber connections (SFP slots)
- Fanless, -40 to 75°C operating temperature range (T models)
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
- Isolated redundant power inputs with universal 110/220 VAC power supply range
- Supports MXstudio for easy, visualized industrial network management
- V-ON™ ensures millisecond-level multicast data and video network recovery
Introduction
Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The ICS-G7526A Series full Gigabit backbone switches are equipped with 24 Gigabit Ethernet ports plus up to 2 10G Ethernet ports, making them ideal for large-scale industrial networks.
The ICS-G7526A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The fanless switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.
Specifications
Ethernet Interface
10/100/1000BaseT(X) Ports (RJ45 connector): 12
100/1000BaseSFP Ports: 8
10GbE SFP+ Slots: 2
Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+): 4
Standards:
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1X for authentication
IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3ae for 10 Gigabit Ethernet
Ethernet Software Features
Management: ARP, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, IPv4/IPv6, LLDP, Port Mirror, RMON, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, SMTP, RARP, Flow control
Filter: 802.1Q, GMRP, GVRP, IGMP v1/v2/v3
Redundancy Protocols: Link Aggregation, MSTP, RSTP, Turbo Chain, Turbo Ring v1/v2, V-ON
Security: Access control list, Broadcast storm protection, HTTPS/SSL, MAB authentication, Sticky MAC, NTP authentication, Port Lock, RADIUS, SSH, TACACS+
Time Management: NTP Server/Client, SNTP
Industrial Protocols: EtherNet/IP, Modbus TCP, PROFINET
MIB: Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Switch Properties
DRAM: 128 MB
Flash: 16 MB
IGMP Groups: 4096
Jumbo Frame Size: 9.6 KB
MAC Table Size: 16 K
Max. No. of VLANs: 256
Packet Buffer Size: 12 Mbits
VLAN ID Range: VID 1 to 4094
Priority Queues: 8
USB Interface
Storage Port: USB Type A
Serial Interface
Console Port: USB-serial console (Type B connector)
Input/Output Interface
Alarm Contact Channels: Relay output with current carrying capacity of 2 A @ 30 VDC
Digital Inputs:
+13 to +30 V for state 1
-30 to +1 V for state 0
Max. input current: 8 mA
Power Parameters
Input Voltage: 110 to 220 VAC, Redundant dual inputs
Operating Voltage: 85 to 264 VAC
Overload Current Protection: Supported
Reverse Polarity Protection: Supported
Input Current: 1/0.5 A @ 110/220 VAC
Physical Characteristics
IP Rating: IP30
Dimensions: 440 x 44 x 386.9 mm (17.32 x 1.73 x 15.23 in)
Weight: 6470 g(14.26 lb)
Installation: Rack mounting
Environmental Limits
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
Safety: UL 61010-2-201, EN 61010-2-201
EMC: EN 55032/24
EMI: CISPR 32, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Railway: EN 50121-4
Freefall: IEC 60068-2-32
Shock: IEC 60068-2-27
Vibration: IEC 60068-2-6
MTBF
Time: 314,093 hrs
Standards: Telcordia (Bellcore), GB
Warranty
Warranty Period: 5 years
