IEC-G102-BP-SA-T
Industrial Intrusion Prevention System (IPS) device with 2 10/100/1000BaseT(X) ports, 5 years of pattern updates, individually managed via web GUI, -40 to 75°C operating temperature
Certificati
Introduction
The Moxa IEC-G102-BP Series industrial next-generation IPS devices protect mission-critical assets with industrial-grade IPS and whitelisting.
Meanwhile, the Security Dashboard Console (SDC) software, when used together with the IEC-G102-BP Series, offers another layer of protection through centralized critical asset visibility, network analysis, and auto pattern updating.
Features and Benefits
- Ultra-compact industrial security box with IPS/IDS
- Granular policy enforcement with whitelisting control
- LAN Bypass design to prevent a single point of failure and traffic overloading
- Bump-in-the-wire installation without impacting the network
- 5 years of pattern updates
Specifications
Input/Output Interface: Buttons Reset button
Ethernet Interface: 2 port 10/100/1000BaseT(X) Ports (RJ45 connector)
Standards:
IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3u for 100BaseT(X)
LED Interface
LED Indicators PWR1, PWR2, MANAGED, IPS/IDS, USB/F, BYPASS, 10/100/1000M
DoS and DDoS Protection Technology
ICMP Flood, IGMP Flood, UDP Flood, UDP port scan, TCP SYN Flood, TCP Port SYN Scan, TCP Port FIN Scan, TCP Port NULL Scan, TCP Port Xmas Scan
Firewall
IPS Throughput > 200 Mbps
Latency < 500 microseconds
Concurrent Connection (TCP) 10,000
Deep Packet Inspection Modbus TCP Modbus UDP EtherNet/IP Profinet-DCP CIP Omron FINS Mitsubishi SLMP Siemens S7 Comm. Siemens S7 Comm. Plus With more availabe through firmware update
Policy Enforcement Rules 64 rules
ICS Protocol Filter Profiles 32 profiles
Real-Time Firewall / VPN Event Log
Event Type Cybersecurity, Policy enforcement, Protocol Filter, Assets detection, System event
Media, Local storage, Syslog server
Serial Interface
Console Port USB Type-C
Power Parameters
Connection Removable terminal block
Input Current 0.605 A @ 12 VDC, 0.297 A @ 24 VDC, 0.143 A @ 48 VDC
Physical Characteristics
Housing, Metal

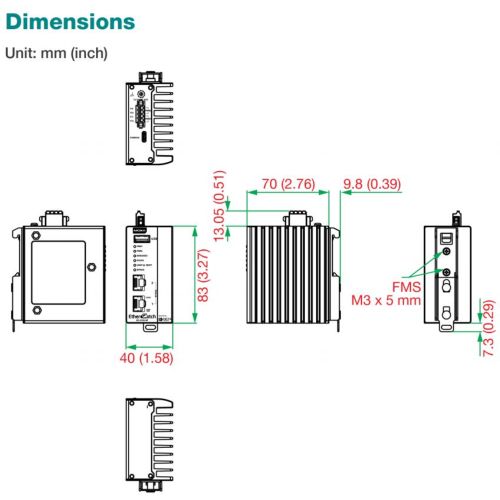

Dimensions 40 x 70 x 83 mm (1.58 x 2.76 x 3.27 in)
Weight 322 g (0.71 lb)
Installation DIN-rail mounting,
Wall mounting (with optional kit)
