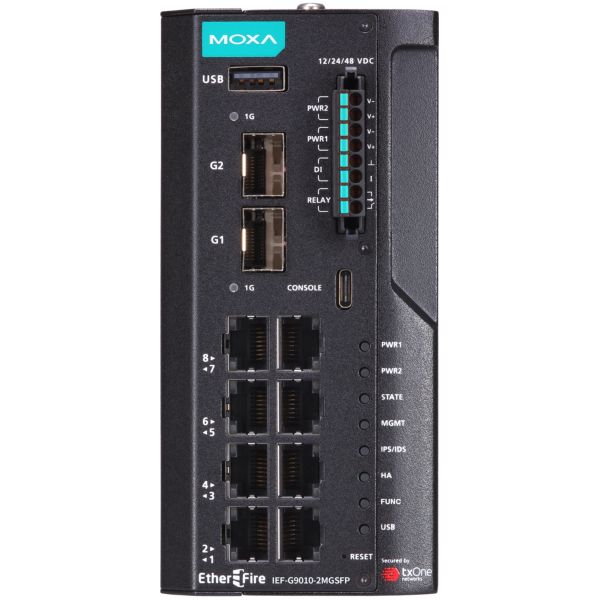

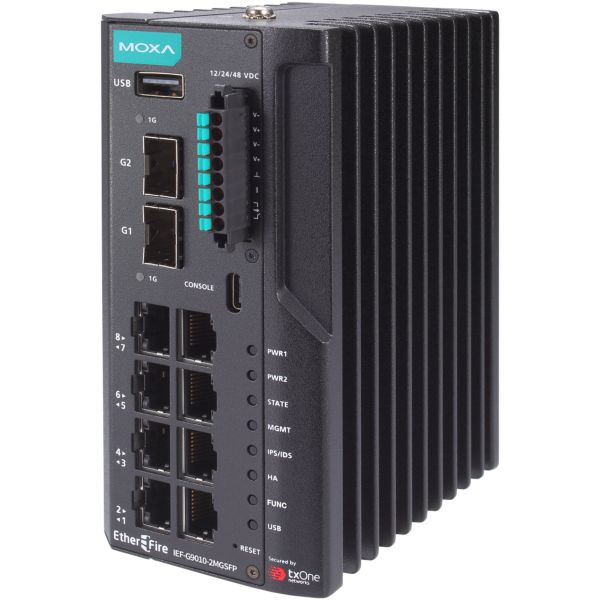

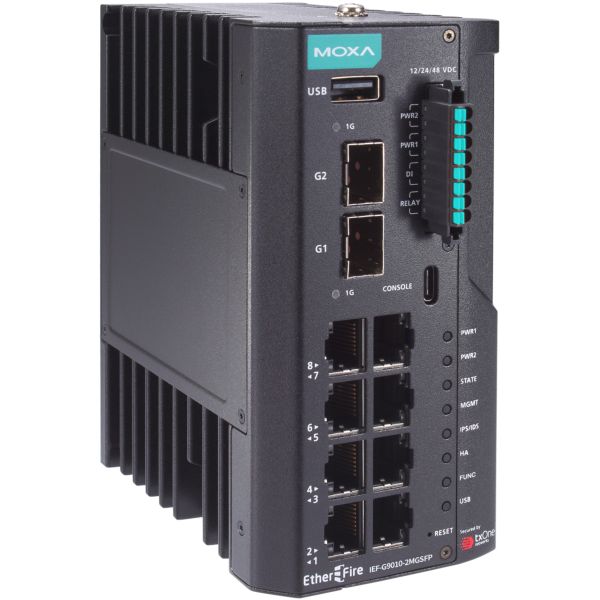

IEF-G9010-2MGSFP-Pro-H-T
Industrial next-generation firewall with 8 10/100/1000BaseT(X) ports and 2 Multi-Gigabit SFP ports, centralized management via Security Dashboard Console, -40 to 75°C operating temperature
Certificati
Features and Benefits
- Compact industrial IPS firewall for network segmentation
- Industrial-grade Intrusion Prevention/Detection System (IPS/IDS)
- Object-based policy enforcement rules for protocol filtering and traffic control
- Easy network setup with Network Address Translation (NAT)
- Full OT network visibility when used with Security Dashboard Console (SDC)
- -40 to 75°C wide operating temperature range (-T models)
Introduction
The Moxa IEF-G9010 Series industrial IPS firewall can segment and hide your network and protect mission-critical assets with industrial-grade IPS and granular access control. Meanwhile, the Security Dashboard Console (SDC) software, when used together with the IEF-G9010 Series, offers another layer of protection through centralized critical asset visibility, network analysis, and auto pattern updating.
Specifications
Input/Output Interface
Buttons: Reset button
Digital Input Channels:
+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA
Alarm Contact Channels: Resistive load: 1 A @ 24 VDC
Ethernet Interface
10/100/1000BaseT(X) Ports (RJ45 connector): 8
1000BaseSFP Slots: 2
Standards:
IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3u for 100BaseT(X)
LED Interface
LED Indicators: PWR1, PWR2, STATE, MGMT, IPS/IDS, HA, FUNC, USB, 10/100 Mbps copper port, 1000 Mbps copper port, 1000 Mbps SFP port
NAT
Features: N-to-1, 1-to-1, Port forwarding, NAT loopback
Application Layer Gateway (ALG):
SIP
H.323
FTP
Ethernet Software Features
Unicast Routing: Static Route
Management: SSH, Telnet, NTP Client, DHCP Server/Client, DNS
Authentication: Local Account Accessibility
DoS and DDoS Protection
Technology: ICMP Flood, IGMP Flood, UDP Flood, UDP Port Scan, TCP SYN Flood, TCP Port SYN Scan, TCP Port FIN Scan, TCP Port NULL Scan, TCP Port Xmas Scan
Firewall
Throughput: Max. 360,000 packets per second (max. 1,000 Mbps)
IPS Throughput: > 450 Mbps when the packet size is greater than 128 bytes
Latency: < 500 microseconds
Concurrent Connections (TCP): 60,000
Deep Packet Inspection:
Modbus TCP
Modbus UDP
EtherNet/IP
PROFINET-DCP
CIP
Omron FINS
SLMP
Siemens S7 Comm.
Siemens S7 Comm. Plus
Additional protocols will be supported through future firmware updates.
Policy Enforcement Rules: 64 rules
ICS Protocol Filter Profiles: 32 profiles
Automatic Pattern Updates via SDC: Supported (1 year of updates included)
Manual Pattern Updates: Supported (requires IEF pattern update license)
