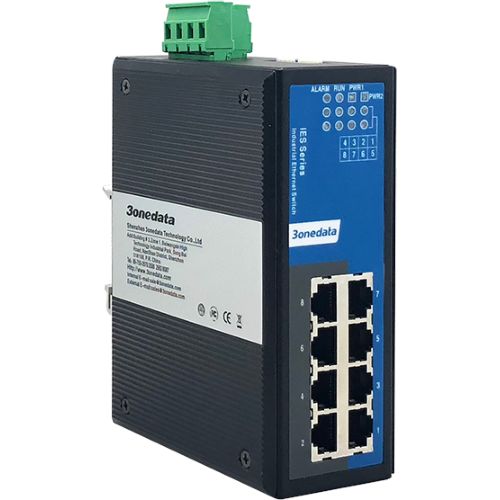

IES318, Unmanaged Industrial Ethernet Switch, 8 ports 10/100Base-T(X) (RJ45), dual power supply 12~48VDC, -40~75°
IES318
Unmanaged Industrial Ethernet Switch, 8 ports 10/100Base-T(X) (RJ45), dual power supply 12~48VDC, -40~75°
SPEDIZIONE GRATUITA
Bisogno di aiuto?
Overview
IES318 series are 8-port 100M layer 2 unmanaged industrial Ethernet switches. This series include 3 types of products and provide 100M fiber and copper ports. They also support DIN-Rail mounting and wall mounting, which can meet the requirements of different application scenes.
The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. DIP switch can implement port alarm and power supply alarm. When power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.
Features
- Support 6 100M copper ports and 2 100M Ethernet copper or fiber ports optional
- Support relay alarm output
- Support 12~48VDC dual power supply input with anti-reverse protection and non-polarity
- Support -40~75℃ wide operating temperature range
Specifications
Standard & Protocol
IEEE 802.3 for10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
Interface
Copper port: 10/100Base-T(X)RJ45, Automatic Flow Control, Full/Half Duplex Mode Self-adaption, MDI/MDI-X Autotunning
Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output, current carrying capacity 1A@24VDC or 0.5A@120VAC
LED Indicator
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
Switch Property
Transmission mode: store and forward
MAC address: 2K
Packet buffer size: 1Mbit
Backplane bandwidth: 1.6G
Switch time delay: <10μs
Power Requirement
12~48VDC, 4-pin 7.62mm pitch terminal blocks
Dual power supply redundancy, non-polarity, reverse connection protectionv
Power Consumption
No-load (@24VDC): 1.51W
Full-load (@24VDC): 2.23W
Environmental Limit
Operating temperature: -40~75℃
Storage temperature: -40~85℃
Relative humidity: 5%～95%（no condensation）
Physical Characteristic
Housing: IP30 protection, high-intensity corrugated metal
Installation: DIN-Rail mounting or wall mounting
Dimension (W x H x D): 53mm×136mm×105mm
Weight: 900g
Industrial Standard
IEC 61000-4-2 (ESD), Level 4
Air discharge: ±15kV
Contact discharge: ±8kV
IEC 61000-4-3 (RS), Level 3
Test level: 10V/m
Frequency range: 80MHz-1GHz
IEC 61000-4-4 (EFT), Level 4
Power supply; ±4kV
Ethernet port: ±2kV
Relay: ±4kV
IEC 61000-4-5 (Surge), Level 4
Power supply: common mode±4kV, differential mode±2kV
Ethernet port: ±4kV
Relay：common mode±4kV, differential mode±2kV
IEC 61000-4-6 (CS), Level 3
Test level: 10V
Frequency range: 150kHz-80MHz
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS, UL61010
Warranty
5 years
