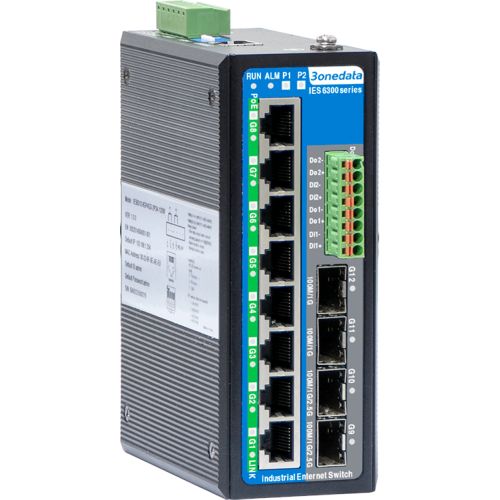

IES6300-8GT2GS2HS-2P48
Layer 2 Managed Industrial Switch, 2 port 100M/1G/2.5G SFP(SFP slot)+2 port 100M/1G SFP(SFP slot) + 8 port 10/100/1000Baes-T(X) (RJ45), dual power supply 12 ~ 48VDC
SPEDIZIONE GRATUITA
Introduction
IES6300 Series are 12-port layer 2+ managed industrial Gigabit Ethernet switcheswithoptional PoE. PoE power supply conforms to IEEE 802.3af/at protocol standard. Thisseriesprovide 6 products and support a variety of interfaces including Gigabit copper ports,Gigabit PoE copper ports, 100M SFP slots, Gigabit SFP slots, 2.5G SFP slots andI/Oports.They adopt DIN-Rail mounting or wall mounting to meet the requirements of differentapplication scenes.
Features and Benefits
- RMON can be used for efficient and flexible network monitoring
- QoS supports real-time traffic classification and priority setting
- LLDP can achieve automatic topology discovery, which is convenient for visual management
- DHCP server and DHCP client could be used for allocating IP address of different strategies
- DHCP snooping can ensure DHCP client gets IP address fromlegal DHCPserver
- DHCP relay function can realize IP address, gateway, DNS configuration cross network segment
- File management is convenient for the device rapid configuration and onlineupgradingUser privilege classification configuration can set user privilege level
- SSH configuration and HTTPS configuration can improve device’s management security and guarantee data access security
Specifications
Standard & Protocol
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
ITU-T G.8032 for ERPS
IEEE 1588 for PTP
IEEE 802.1Q for VLAN
IEEE 802.1p for CoS
IEEE 802.1AB for LLDP
IEEE 802.3ad for LACP
IEEE 802.3af for PoE
IEEE 802.3at for PoE+
Management
SNMP v1/v2c/v3 Centralized Management of Equipment, QoS, PoE, DHCP Server, DHCP Snooping, DHCP Relay, Static MACAddress, LLDP, Storm Suppression, User Password, Login Method, FileManagement, Log Management, Port Statistics
Security
User Privilege Classification, Authentication Method Configuration, SSHConfiguration, HTTPS Configuration, Access Control, SNMP, RMON, Port Limit Control, Port Security, NAS, ACL, Ethernet Services, RADIUSServer Authentication, TACACS + Server Authentication, Port Alarm, DCPower Supply Alarm, IO Alarm, Loop Protection
Switch Function
802.1Q VLAN, Static Aggregation, LACP
Unicast / Multicast
IGMP Snooping, Unicast MAC
Redundancy Technology
SW-Ring, STP/RSTP/MSTP, ERPS
Troubleshooting
Ping, Cable Detection, DDM, Port Mirroring
Layer 3 function
Static routing(IPv4/IPv6)
Max. 8 IP interfaces
Max. 32 routing entries
Time Management
NTP, Time Zone Configuration, PTP
PoE (optional)
The maximum power of PoE port: 30W
The power supply pin of PoE: V+, V+, V-, V- correspond to Pin1, 2, 3, 6
Interface
Gigabit copper port: 10/100/1000Base-T(X), RJ45, Automatic FlowControl, Full/Half Duplex Mode, MDI/MDI-XAutotunning, optional PoE
Gigabit SFP Slot: 100/1000Base-X self-adaption or forced mode, SFPslot
2.5G SFP Slot: 100/1000/2.5GBase-X self-adaption or forced mode, SFP slot
I/O port (optional): Support 2 inputs and 2 outputs, 8-pin 3.81mmpitchterminal blocks, support dry contact input, relay-typeoutput
Console port: CLI command line management port(RS-232), RJ45Alarm Port: 6-pin 5.08mm pitch terminal blocks, relay occupies 2pinsand 1 relay alarm information output is supported, thecurrent load capability is 1A@30VDC or 0.3A@125VAC
