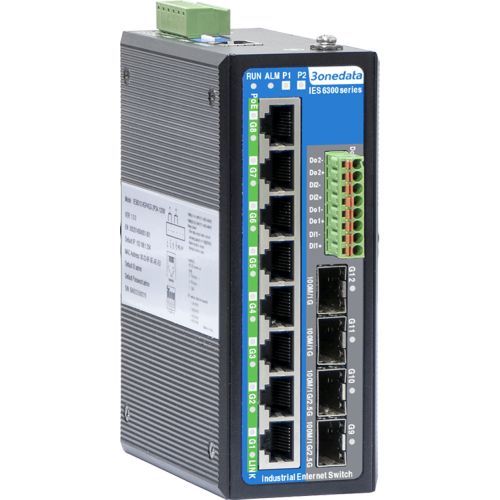

IES6300-8GT2GS2HS-P220 3onedata Gigabit Managed Switches

IES6300-8GT2GS2HS-P220 3onedata


Industrial managed layer 2+, 8 port 10/100/1000Baes-T(X) (RJ45) + 2 port 1000M SFP(SFP slot) + 2 port 1G/2.5G SFP (SFP slot), single power supply, 220VAC/DC


Prezzo per pezzo

€ 598,79

(IVA esclusa)

€ 730,52 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 730,52

Disponibilità: 15 gg lav


SKU: 130629

Model: IES6300-8GT2GS2HS-P220

Bisogno di aiuto?


IES6300 Series are 10/12-port layer 2 managed industrial Gigabit Ethernet switches with optional PoE. PoE power supply conforms to IEEE 802.3af/at protocol standard. This series provide 10 products and support a variety of interfaces including Gigabit copper ports, Gigabit PoE copper ports, Gigabit SFP slots, 2.5G SFP slots and I/O ports and support four power supplies including 24VDC PoE, 48VDC PoE, 12~48VDC and 220VAC/DC. They adopt DIN-Rail mounting or wall mounting to meet the requirements of different application scenes.
The DC power supply has two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. The design of DIP switch could implement device factory setting recovery. When DC power supply or port has link failure, ALM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The hardware adopts fanless, low power consumption and wide temperature design, which has passed rigorous industrial standard tests, and suits for the industrial scene environment with harsh requirements for EMC. It can be widely used in AP coverage, railway transportation, smart city, safe city, new energy, smart grid, intelligent manufacturing and other industrial fields.


  • Support 2 2.5G SFP slots, 2 Gigabit SFP slots (optional), 8 Gigabit copper ports (optional PoE), 2 DI and 2 DO (optional)
  • Adopt patented Ring technology, support single ring, coupling ring, chain, Dual-homing, automatic recovery time of network failure < 20ms
  • Support 4 optional power supplies: 24VDC PoE, 48VDC PoE, 12~48VDC and 220VAC/DC
  • The maximum PoE power consumption of 24VDC products is 120W, and the maximum PoE power consumption of 48VDC products is 240W
  • Support -40~75℃ wide operating temperature range


Standard & Protocol

IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
ITU-T G.8032 for ERPS
IEEE 802.1Q for VLAN
IEEE 802.1p for CoS
IEEE 802.1AB for LLDP
IEEE 802.3ad for LACP
IEEE 802.3af for PoE
IEEE 802.3at for PoE+


SNMP v1/v2c/v3 Centralized Management of Equipment, QoS, PoE, DHCP Server, DHCP Snooping, DHCP Relay, Static MAC Address, LLDP, Storm Suppression, User Password, Login Method, File Management, Log Management, Port Statistics


User Privilege Classification, Authentication Method Configuration, SSH Configuration, HTTPS Configuration, Access Control, SNMP, RMON, Port Limit Control, Port Security, NAS, ACL, Ethernet Services, RADIUS Server Authentication, TACACS + Server Authentication, Port Alarm, DC Power Supply Alarm, IO Alarm, Loop Protection

Switch Function

802.1Q VLAN, Static Aggregation, LACP

Unicast / Multicast

IGMP Snooping, Unicast MAC

Redundancy Technology



Ping, Cable Detection, DDMI, Port Mirroring

Time Management

NTP, Time Zone Configuration

PoE (optional)

The maximum power of PoE port: 30W
The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6


Gigabit Copper Port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning, optional PoE
Gigabit SFP Slot : 100/1000Base-X self-adaption or forced mode, SFP slot
2.5G SFP Slot: 100/1000/2.5GBase-X self-adaption or forced mode SFP slot
I/O port (optional): Support 2 inputs and 2 outputs, 8-pin 3.81mm pitch terminal blocks, support dry contact input, relay-type output
Console port: CLI command line management port(RS-232), RJ45
Alarm Port: 6-pin 5.08mm pitch terminal blocks, relay occupies 2 pins and 1 relay alarm information output is supported, the current load capability is 1A@30VDC or 0.3A@125VAC


Running indicator, alarm indicator, power supply indicator, interface indicator, PoE indicator (optional), I/O output indicator (optional), I/O input indicator (optional)

Switch Property

Transmission mode: store and forward
MAC address: 8K
Packet buffer size: 4Mbit
Backplane bandwidth: 30G
Switch time delay: <10μs

Power Supply

Power input: 220VAC/DC
Connection method: 6-pin 5.08mm pitch terminal blocks (includes 4-pin power supply)

Working Environment

Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%~95% (no condensation)

Physical Characteristic

Housing: IP40 protection, metal
Installation: DIN-Rail or wall mounting
Weight: ≤ 0.78kg
Dimension (W x H x D): 53mm×138mm×110mm

Industrial Standard

IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3
IEC 61000-4-5 (Surge), Level 3
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6




5 years
