IGS-4215-8T2S Planet Gigabit Managed Switches

Robustly Designed for Critical Business Applications

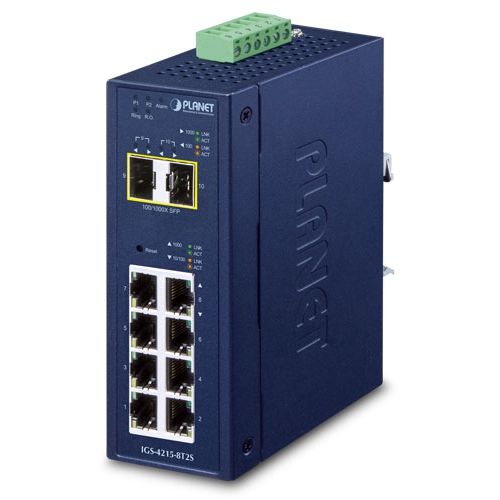

Designed to be installed in heavy industrial demanding environments, the IGS-4215-8T2S is the new member of PLANET Industrial-grade, DIN-rail type L2/L4 Managed Gigabit Switch family to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 8 10/100/1000BASE-T ports, and 2 extra 100/1000BASE-X SFP fiber ports for data and video uplink. The IGS-4215-8T2S is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing.

Applications

Industrial-grade Switch for Building Automation and Security

Suitable for buildings where security is strictly to be enforced, the IGS-4215-8T2S, with eight high-speed Gigabit Ethernet interfaces, can easily build a power centrally controlled for an IP phone system, IP surveillance system, and wireless AP group in the harsh Industrial environment.

Model that Withstands Harsh Operation and Extends Distance

The IGS-4215-8T2S is made to withstand any harsh operation in such environments as traffic control cabinets, factory floors, and indoor and outdoor locations where temperatures are extremely high or low. With a non-blocking design and compact size, the installation of the IGS-4215-8T2S is easy and helpful to build a Gigabit high-bandwidth switched network quickly.

Features and Benefits

Physical Port

• 8-port 10/100/1000BASE-T RJ45 with auto MDI/MDI-X function
• 2-port 100/1000BASE-X SFP transceiver type auto detection

Hardware Specifications

Copper Ports:    8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
Gigabit SFP Slots:   2 100/1000BASE-SX/LX/BX SFP interfaces
Reset Button:
        < 5 sec: System reboot
        > 5 sec: Factory default

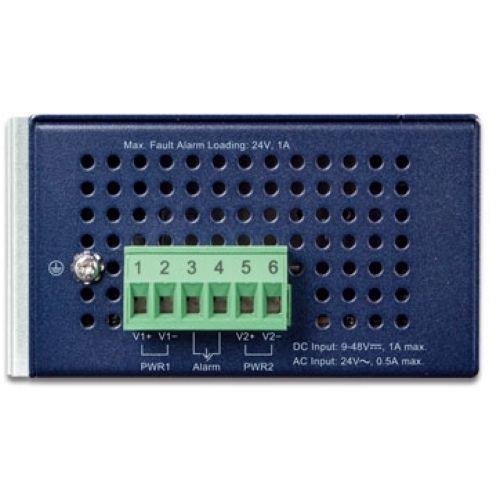

Connector:
Removable 6-pin terminal block for power input
　Pin 1/2 for Power 1
　Pin 3/4 for fault alarm
　Pin 5/6 for Power 2
Alarm:
        One relay output for power failure.
        Alarm relay current carry ability: 1A @ 24V DC
Power Requirements:
        Dual 9~48V DC
        24V AC
Power Consumption:
    DC input:
        Max. 1.98 watts/6.7BTU (System on)
        Max. 6.93 watts/23.6BTU (Full loading)
    AC input:
        Max. 1.4 watts/4.7BTU (System on)
        Max. 5.7 watts/19.4BTU (Full loading)
Enclosure:   IP30 metal case
Dimensions (W x D x H):  50 x 87.8 x 135 mm
Weight:  510g
Installation:    DIN-rail kit and wall-mount ear
ESD Protection:  6KV DC

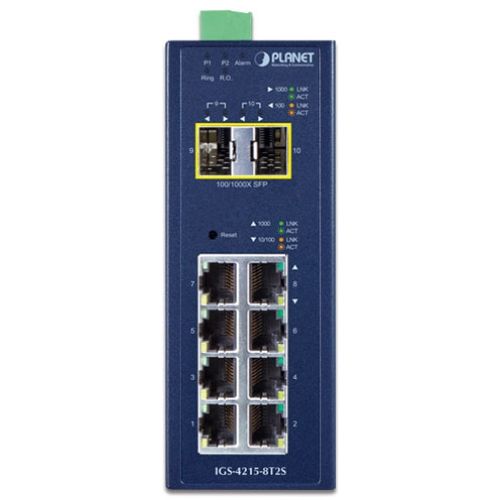

LED:
    System:
        Green: Power 1
        Green: Power 2
        Red: Alarm
        Green: Ring
        Green: R.O.
    Per 10/100/1000T RJ45 Ports:
        Green: 1000 LNK/ACT
        Amber: 10/100 LNK/ACT
    Per 100/1000X SFP Ports:
        Green: 1000 LNK/ACT
        Amber: 100 LNK/ACT
