IGS-5225-8T2S2X Planet Gigabit Managed Switches

IGS-5225-8T2S2X Planet

IGS-5225-8T2S2X

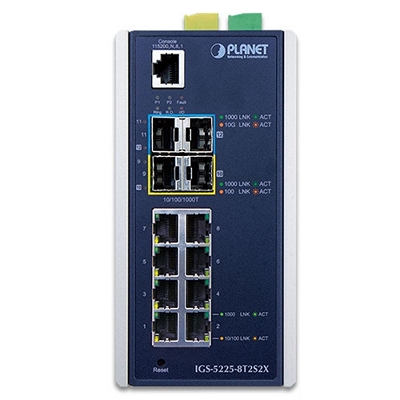

Industrial L3 8-Port 10/100/1000T + 2-Port 100/1000X SFP + 2-Port 10G SFP+ Managed Ethernet Switch (-40~75 degrees C)

Quantità':

Prezzo per pezzo

€ 607,35

(IVA esclusa)

€ 740,97 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 740,97

Disponibilità: 10 gg lav

Brand: PLANET

SKU: 115349

Model: IGS-5225-8T2S2X

Line: 1G

Bisogno di aiuto?


Prodotti Correlati

Planet

MFB-FX

Prezzo:  € 17,29

Planet

MGB-GT

Prezzo:  € 31,82

Planet

MGB-LB20

Prezzo:  € 22,14

Planet

MGB-SX2

Prezzo:  € 17,29

Planet

MGB-TSX

Prezzo:  € 19,37

Mean Well

HDR-30-12-MW

Prezzo:  € 22,00

Mean Well

HDR-30-15

Prezzo:  € 22,00

Mean Well

HDR-30-24

Prezzo:  € 22,80

Mean Well

HDR-30-48

Prezzo:  € 22,00

 Environmentally Hardened Design

PLANET IGS-5225-8T2S2X is an industrial Layer 2+ managed Gigabit Switch that features 8 10/100/1000Mbps copper ports, 2 additional 100/1000/2500BASE-X SFP ports and 2 10G SFP+ ports, and supports static Layer 3 routing in a rugged IP30 aluminum case for stable operation in heavy industrial demanding environments. With 10Gbps uplink, the IGS-5225-8T2S2X can handle extremely large amounts of data in a secure topology linking to an enterprise backbone or high capacity servers. The IGS-5225-8T2S2X is capable of providing non-blocking switch fabric and wire-speed throughput as high as 66Gbps without any packet loss and CRC error. It greatly simplifies the tasks of upgrading the enterprise LAN for catering to increasing bandwidth demands. Being able to operate under wide temperature range from -40 to 75 degrees C, the IGS-5225-8T2S2X can be placed in almost any difficult environment. The IGS-5225-8T2S2X also allows either DIN rail or wall mounting for efficient use of cabinet space.

Specifications

Hardware Specifications

Hardware Version: 3
Copper Ports: 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots: 2 1000BASE-SX/LX/BX SFP interfaces (Port-9 and Port-10)
Compatible with 100BASE-FX and 2500BASE-X SFP
SFP+ Slots: 2 10GbBASE-SR/LR SFP+ interfaces (Port-11 and Port-12)
Compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP transceiver
Console: 1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Switch Architecture: Store-and-Forward
Switch Fabric: 66Gbps/non-blocking
Throughput (packet per second): 44.642Mpps@ 64Bytes packet
Address Table: 32K entries, automatic source address learning and aging
Shared Data Buffer: 16Mbits
Flow Control: IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame: 10Kbytes
Reset Button: < 5 sec: System reboot
> 5 sec: Factory default
ESD Protection: 6KV DC
Enclosure: IP30 aluminum case
Installation: DIN rail kit and wall-mount kit

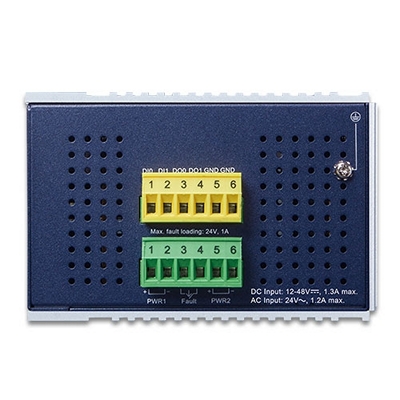

Connector: Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
Alarm: One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
DI/DO: 2 Digital Input (DI):
 Level 0: -24V~2.1V (±0.1V)
 Level 1: 2.1V~24V (±0.1V)
 Input load to 24V DC, 10mA max.
2 Digital Output (DO):
 Open collector to 24V DC, 100mA max.
LED Indicator: System:
 Power 1 (Green)
 Power 2 (Green)
 Fault Alarm (Red)
 Ring (Green)
 R.O. (Green)
 DIDO (Red)
Per 10/100/1000T RJ45 Ports:
 10/100 LNK/ACT (Orange)
 1000 LNK/ACT (Green)
Per SFP Interface:
 100 LNK/ACT (Orange)
 1000 LNK/ACT (Green)
Per SFP+ Interface:
 10G LNK/ACT (Orange)
 1000 LNK/ACT (Green)
Dimensions (W x D x H): 76.8 x 107.3 x 152 mm
Weight: 1070g
Power Requirements: Dual 12~48V DC
24V AC
Power Consumption: Max. 10.1 watts/34.51BTU (Power on without any connection)
Max. 16.36 watts/55.79BTU (Full loading )

Layer 2 Function

Basic Management Interfaces: Console; Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces: SSH, SSL, SNMP v3
Port Configuration: Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port Status: Display each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status
Port Mirroring: TX/RX/Both
Many-to-1 monitor
VLAN: 802.1Q tagged based VLAN, up to 4K VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 4K VLAN groups, out of 4095 VLAN IDs
Link Aggregation: IEEE 802.3ad LACP/static trunk
Supports 6 trunk groups with 8 ports per trunk group
QoS: Traffic classification based, strict priority and WRR
8-level priority for switching
 - Port number
 - 802.1p priority
 - 802.1Q VLAN tag
 - DSCP/TOS field in IP packet
IGMP Snooping: IGMP (v1/v2/v3) snooping, up to 255 multicast groups
IGMP querier mode support
MLD Snooping: MLD (v1/v2) snooping, up to 255 multicast groups
MLD querier mode support
Access Control List: IP-based ACL/MAC-based ACL
Up to 512 entries
Bandwidth Control: Per port bandwidth control
 Ingress: 500Kb~1000Mbps
 Egress: 500Kb~1000Mbps
SNMP MIBs: RFC-1213 MIB-II
IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB

Layer 3 Function

IP Interfaces: Max. 128 VLAN interfaces
Routing Table: Max. 128 routing entries
Routing Protocols: IPv4 hardware static routing
IPv6 hardware static routing

Standards Conformance

Regulatory Compliance: FCC Part 15 Class A, CE
Stability Testing: IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards Compliance: IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management(CFM)
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
ITU-T G.8032 ERPS Ring
ITU-T Y.1731 Performance Monitoring

Environment

Operating Temperature: -40 ~ 75 degrees C
Storage Temperature: -40 ~ 85 degrees C
Humidity: 5 ~ 95% (non-condensing)
