IGS-614HPT Planet Gigabit PoE Unmanaged Switches

 Cost-effective Full PoE+ Power Solution Ideal for Hardened Environment

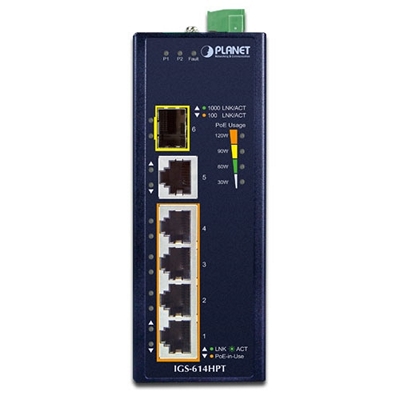

Featuring Plug and Play designed to be installed in heavy industrial demanding environments, the IGS-614HPT is a PLANET Industrial-grade, DIN-rail type Unmanaged Gigabit Ethernet PoE+ Switch with four 10/100/1000BASE-T ports featuring IEEE 802.3at PoE+, one extra 10/100/1000BASE-T RJ45 copper and one 100/1000BASE-X fiber optic interface for uplink connection.
The IGS-614HPT is designed with redundant power system and is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with a total power budget of up to 120 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP40 metal housing.

Specifications

Hardware Specifications

Copper Ports: 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
PoE Injector Ports: Four ports with 802.3at PoE+ injector function (Port-1 to Port-4)
SFP Slots: 1 1000BASE-SX/LX/BX SFP interface
Compatible with 100BASE-FX SFP

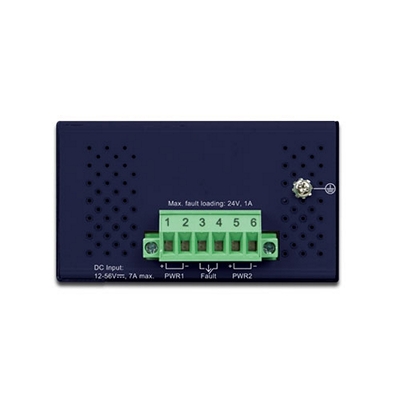

Connector: Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Power Requirements: 12~56V DC, 7A (max.)
Redundant power with reverse polarity protection function
Power Consumption: Max. 7.02 watts/24BTU
(Ethernet Full Loading)
Max. 132 watts/450BTU
(Ethernet + PoE Full Loading)
Dimensions (W x D x H): 50 x 87 x 135 mm
Weight: 605g
Enclosure: IP40 metal case
Installation: DIN-rail kit and wall-mount kit
ESD Protection: 6KV

Switch Specifications

Switch Architecture: Store-and-Forward
Switch Fabric: 12Gbps
Throughput (packet per second): 8.93Mpps@64bytes
Address Table: 4K entries
Buffer Memory: 1M bits on-chip buffer memory
Jumbo Frame: 9Kbytes
Flow Control: Back pressure for half duplex
IEEE 802.3x pause frame for full duplex

Power over Ethernet

PoE Standard: IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type: End-span
Power Pin Assignment: 1/2(+), 3/6(-)
PoE Power Output: Per port 54V DC, max. 36 watts
PoE Power Budget (max.): 60W@12V DC input
90W@24V DC input
120W@48V-56V DC input
Max. Number of Class 4 PDs: 4

Standards Conformance

Regulatory Compliance: FCC Part 15 Class A, CE
Stability Testing: IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Standards Compliance: IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3az Gigabit SX/LX
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3at Power over Ethernet Plus PSE
IEEE 802.3af Power over Ethernet Plus
IEEE 802.1p Class of Service

Environment

Temperature: Operating: -40~75 degrees C
Storage: -40~75 degrees C
Humidity: Operating: 5~90% (non-condensing)
Storage: 5~90% (non-condensing)
