Outstanding 802.3bt PoE++ Solution for Hardened Environment
With EN 61000-6-2 and 61000-6-4 Heavy Industrial EMC and railway EN 50121-4 certified design, and complying with the IEEE 802.3bt PoE++ technology, PLANET IGS-6329-8UP2S2X provides non-stop data communication and reliable PoE injection, even with noise interferences coming from the heavy industrial field applications.

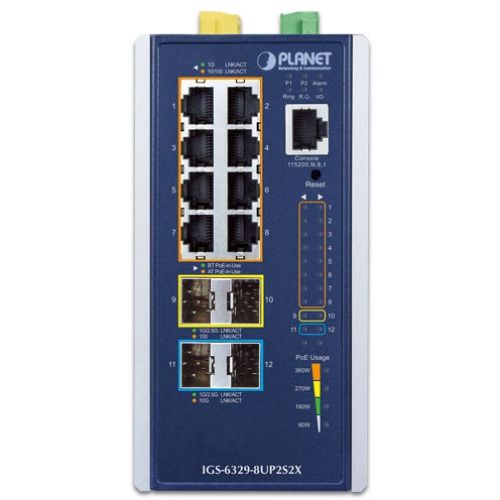

Complying with the IEEE 802.3bt Power over Ethernet Plus Plus technology, PLANET IGS-6329-8UP2S2X L3 Industrial Managed PoE++ Switch features eight 10/100/1000BASE-T 802.3bt PoE++ ports with each port powering up to 95 watts, two 100/1000/2500BASE-X SFP ports and two 10G SFP+ ports delivered in a rugged IP30 metal case for stable operation in heavy industrial demanding environments. It supports rich PoE operation modes including 90-watt 802.3bt type-4 PoE++ ports, 95-watt PoH (Power over HD-BASE-T) mode and 4-pair force mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.
Being able to operate under wide temperature range from -40 to 75 degrees C, the IGS-6329 PoE++ Switch series can be placed in almost any difficult environment. The IGS-6329 PoE++ Switch series also allows either DIN rail or wall mounting for efficient use of cabinet space.
Industrial Area Department/Workgroup PoE Switch
Providing up to 8 PoE++, in-line power interfaces, the IGS-6329-8UP2S2X can easily build a power centrally controlled for IP phone system, IP camera system, or wireless AP group for Industrial network. For instance, 8 PoE IP cameras or wireless access points can be easily installed around the corner in the industrial environment for surveillance demands or for a wireless roaming network. Without the power-socket limitation, the IGS-6329-8UP2S2X makes the installation of IP cameras or wireless AP easier and more efficient.
High Availability Mesh Networking Solution for Big Data System
The IGS-6329-8UP2S2X features strong, rapid, self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) into customer’s automation network to enhance system reliability and uptime. The IGS-6329-8UP2S2X is the ideal solution for data centers, service providers and telecoms to build redundant connection and establish high bandwidth for Big Data server farm.
Features and Benefits
- 8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with 802.3bt PoE++ Injector function
- 2 100/1000/2500BASE-X SFP slots for SFP type auto detection
- 2 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-X and 2500BASE-X SFP
- One RJ45-to-RS232 console interface for basic management and setup
Copper Ports: 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
2 1000BASE-SX/LX/BX SFP slot interfaces (Port-9 and Port-10)
Compatible with 100BASE-FX and 2500BASE-X SFP
2 10GBASE-SR/LR SFP+ slot interfaces (Port-11 to Port-12)
Compatible with 1000BASE-X and 2500BASE-X SFP
PoE Injector Ports: 8 ports with 802.3bt PoE++ injector function with Port-1 to Port-8
Console: 1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
< 5 sec: System reboot
> 5 sec: Factory default

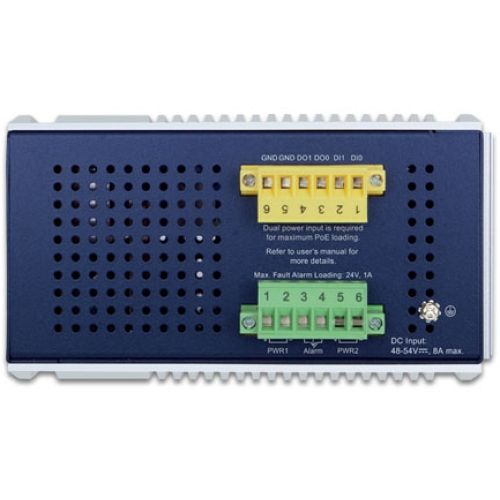

Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
Alarm: One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
Digital Input (DI): 2 digital inputs:
Level 0: -24~2.1V (±0.1V)
Level 1: 2.1~24V (±0.1V)
Input load to 24V DC, 10mA max.
Digital Output (DO): 2 digital outputs: Open collector to 24VDC, 100mA
Enclosure: IP30 aluminum case
Installation: DIN-rail or wall mounting
Dimensions (W x D x H): 76 x 135 x 152 mm
Power Requirements: Dual DC 48~54V, 8A max. (>52V DC for 802.3bt PoE++ output recommended)
Max. 29 watts/98.96BTU@54V DC input (System on)
Max. 401 watts/1,368.27BTU@54V DC input (Full loading with 802.3bt PoE++ function)
Air 8KV DC
Contact 6KV DC
Surge Protection: 4KV DC
