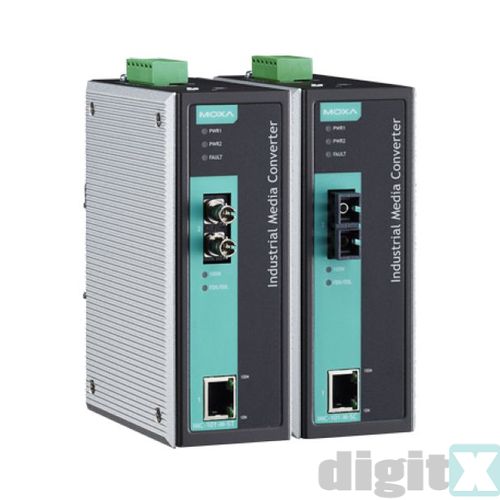

IMC-101-S-SC-T-IEX MOXA ethernet to Fiber Converters

IMC-101-S-SC-T-IEX MOXA

IMC-101-S-SC-T-IEX

Industrial Media Converter, single mode, SC, 40 km, -40 to 75°C, IECEx Certification Approval

Clicca per maggiori dettagli

Q.tà':

Articoli Prezzo (IVA esc.)
1+ pz.€ 524,21
3+ pz.€ 508,48
5+ pz.€ 498,00

Prezzo di 1 pz. iva (22%) inclusa: € 639,54

Disponibilità: 10 gg lav

  >> I tempi protrebbero essere piĆ¹ lunghi da quelli indicati <<

Brand: MOXA

SKU: 93976

Model: IMC-101-S-SC-T-IEX

Prodotti Correlati

MOXA

19 Rack mount kit for EDS-series

1+ pezzi:  € 151,20

Features and Benefits

  • 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
  • Link Fault Pass-Through (LFP)
  • Power failure, port break alarm by relay output
  • Redundant power inputs
  • -40 to 75°C operating temperature range (T models)
  • Designed for hazardous locations (Class 1 Div. 2/Zone 2, IECEx)

Introduction

The IMC-101 industrial media converters provide industrial-grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors). The IMC-101 converters’ reliable industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101 converter comes with a relay output warning alarm to help prevent damage and loss. The IMC-101 media converters are  designed for harsh industrial environments, such as in hazardous locations (Class 1,  Division 2/Zone 2, IECEx, DNV, and GL Certification), and comply with FCC, UL, and CE standards. The IMC-101 series is available in models that support an operating temperature from 0 to 60°C, and an extended operating temperature from -40 to 75°C. All IMC-101 series converters are subjected to a 100% burn-in test.

Technology

Standards:
     IEEE 802.3 for 10BaseT
     IEEE 802.3u for 100BaseT(X) and 100BaseFX

Interface

Fiber Ports: 100BaseFX (SC/ST connectors)
LED Indicators: PWR1, PWR2, FAULT, 10/100M (TP port), 100M (Fiber port), FDX/COL (Fiber port)
DIP Switches: 100BaseFX Full/Half duplex selection, port break alarm mask
Alarm Contact: One relay output with current carrying capacity of 1 A @ 24 VDC
RJ45 Ports: 10/100BaseT(X)

Optical Fiber

1000BaseFX:
     Multi-mode:
          Wavelength: 1300 nm
          Max. TX: -14 dBm
          Min. TX: -20 dBm
          RX Sensitivity: -32 dBm
          Link Budget: 12 dB
          Typical Distance: 4-5 km
          Saturation: -6 dBm

     Single-mode:
          Wavelength: 1310 nm
          Max. TX: 0 dBm
          Min. TX: -5 dBm
          RX Sensitivity: -34 dBm
          Link Budget: 29 dB
          Typical Distance: 40 km
          Saturation: -3 dBm

Physical Characteristics

Housing: Metal, IP30 protection
Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight: 630 g
Installation: DIN-Rail mounting, wall mounting (with optional kit)

Environmental Limits

Operating Temperature:
     Standard Models: 0 to 60°C (32 to 140°F)
     Wide Temp. Models: -40 to 75°C (-40 to 167°F)
     Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

Power Requirements

Input Voltage: 12 to 45 VDC redundant inputs
Input Current: 160 mA @ 24 VDC
Connection: Removable terminal block
Overload Current Protection: 1.1 A
Reverse Polarity Protection: Present

Standards and Certifications

Safety: UL 508, UL 60950-1
Hazardous Location: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nC nL IIC T4, IECEx
EMC: CE, FCC
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:
     EN 61000-4-2 (ESD) Level 3,
     EN 61000-4-3 (RS) Level 3,
     EN 61000-4-4 (EFT) Level 3,
     EN 61000-4-5 (Surge) Level 3,
     EN 61000-4-6 (CS) Level 2,
     EN 61000-4-8,
     EN 61000-4-11
Marine: DNV, GL
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Green Product: RoHS, CRoHS, WEEE

MTBF (mean time between failures)

Time: 401,000 hrs
Database: MIL-HDBK-217F, GB 25°C

Warranty

Warranty Period: 5 years
