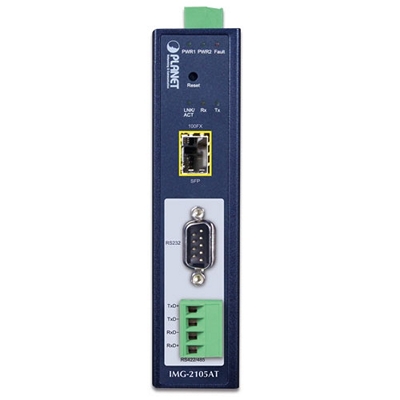

IP30 Industrial 1-Port RS232/RS422/RS485 Modbus Gateway with 1-Port 100BASE-FX SFP

Quantità':

Prezzo per pezzo

€ 165,32

(IVA esclusa)

€ 201,69 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 201,69

Disponibilità: 10 gg lav

Brand: PLANET

SKU: 116095

Model: IMG-2105AT

Bisogno di aiuto?


Protocols

 Standard Industrial Modbus TCP/RTU/ASCII Network Integration

PLANET has added the Industrial Modbus TCP/IP Protocol to its easily-integrated industrial management level products that come with SCADA/HMI system and other data acquisition systems on factory floors. Moreover, the industrial IT SNMP network is upgraded to the Industrial automation Modbus TCP/IP network. PLANET industrial management level products with the Modbus TCP/IP Protocol offer flexible network connectivity solutions for the industrial automation environment.
To complete the industrial automation environment application solution, PLANET has announced a first industrial level 1-port RS232/422/485 Modbus Gateway, IMG-210xT Series, a bridge that converts between Modbus TCP/IP Protocol and Modbus RTU/ASCII Protocol. It features a wide operating temperature range from -40 to 75 degrees C and a compact but rugged IP30 metal housing.

Applications

RTU/ASCII Master to Multi Modbus TCP/IP Slaves

The IMG-210xT series can act as a bridge between the industrial RTU/ASCII master equipment and the multi-industrial TCP/IP slave equipment in a Modbus TCP/IP networking environment to control multi-industrial TCP/IP slave equipment via the industrial RTU/ASCII master equipment.

Multi Modbus TCP/IP Master to RTU/ASCII Slaves

The IMG-210xT series can operate as a bridge between the multi-industrial TCP/IP master equipment and the industrial RTU/ASCII slave equipment in a Modbus TCP/IP networking environment to control the industrial RTU/ASCII slave equipment via the multi-industrial TCP/IP master equipment.

Features and Benefits

Serial Interface

  • One DB9 interface that supports RS232
  • One terminal block interface that supports 2-wire RS485 and 4-wire RS422/RS485 operation
  • Asynchronous serial data rates up to 921600bps

Ethernet Interface

  • Choice of fiber connectors: SC/LC fiber connector or multi-mode/single mode fiber connector

Management Function

  • Built-in IP-based Web interface and telnet interface for remote management
  • Software Protocol supports Modbus TCP, Modbus RTU, Modbus ASCII, IP, ARP, DHCP and DNS
  • Supports RTU Master, RTU Slave, ASCII Master, and ASCII Slave four serial operation modes via management interface
  • Master mode supports 32 TCP slave connection requests
  • Slave mode supports 32 TCP master connections
  • PLANET Modbus Gateway utility for finding client device on the network
  • PLANET Smart Discovery utility automatically finds the client devices on the network
  • Firmware upgrade/configuration backup and restore via HTTP protocol

Industrial Case and Installation

  • IP30 metal case
  • DIN-rail and wall-mount designs
  • Redundant power design
  • - 9 to 48V DC / 24V AC, redundant power with reverse polarity protection
  • Supports 6000 VDC Ethernet ESD protection
  • Free fall, shock-proof and vibration-proof for industries
  • Supports extensive LED indicators for network diagnosis
  • -40 to 75 degrees C operating temperature
  • Reset button for resetting to factory default

Specifications

Serial Interface

Serial Ports:

1 x DB9 male for RS232
1 x 4-Pin Terminal block for RS422 / RS485



Serial Standards: RS232 / 4-wire RS422 or RS485 / 2-wire RS485
Baud Rate (Data Rate): 50bps to 921Kbps
Data Bits: 5, 6, 7, 8
Stop Bit: 1, 1.5, 2
Parity Type: Odd, Even, None, Space, Mark
Flow Control: RTS/CTS and DTR/DSR (RS232 only)
XON/XOFF
Signals: RS232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS422: Tx+, Tx-, Rx+, Rx-, GND
4-wire RS485: Tx+, Tx-, Rx+, Rx-, GND
2-wire RS485: Data A (+), Data B (-), GND
Operation Mode: RTU Master/RTU Slave/ASCII Master/ASCII Slave
Master mode: Supports up to 32 TCP slave connection requests
Slave mode: Supports up to 32 TCP master connection requests

Ethernet Interface

Ethernet Port: 1 x SFP
Standard: 100BASE-FX
Connector: LC
Fiber Mode: Single mode or multi-mode (may vary on SFP module)
Transmission Mode: Full duplex
Distance: 2km to 120km (may vary on SFP module)
Cable:

50 or 62.5/125μm multi-mode fiber cable
9/125μm single-mode cable


ESD Protection: 6KV
Surge Protection: 2KV

Hardware

Installation: DIN-rail kit and wall-mount ear
Enclosure: IP 30 metal
Dimensions (W x D x H): 32 x 87.8 x 135 mm
Weight: 390g
LED Indicators: System: Power 1, Power 2, Fault, SYS
SFP: Link/Active
Serial Port: Tx and Rx
Power Requirements: 9~48V DC / 24V AC, redundant power with reverse polarity protection
Power Consumption:

Full Loading
9VDC: 0.44A (3.96 watts)
12VDC: 0.33A (4 watts)
24VDC: 0.17A (4.08 watts)
48VDC: 0.1A (4.8 watts)

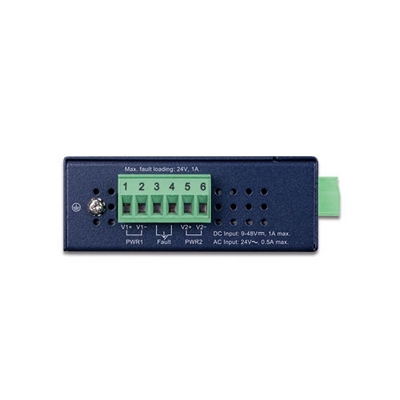

Connector: Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Alarm: Provides one relay output for power failure
Alarm relay current carry ability: 1A @ DC 24V
Reset Button: < 5 sec: System reboot
> 5 sec: Factory default

Management

Management Interfaces: Web management
Telnet Console management
Windows-based MB VCOM Utility management
SNMPv1, v2c / SNMP Trap
UNI-NMS monitoring
PLANET Smart Discovery Utility
IP Version: IPv4 and IPv6
Operation Mode: RTU Master
RTU Slave
ASCII Master
ASCII Slave
Virtual COM Utility Platform Supports: Windows-based only:
 Windows XP
 Windows Server 2003
 Windows 7
 Windows Server 2008
 Windows 8 (Must install the latest version of WinPcap)
 Windows Server 2012 (Must install the latest version of WinPcap)
 Windows 10
Fault Alarm: Record: System log / SNMP trap
Time: NTP
Security: Allow maximum 4 accessible IP address hosts/ranges
SNMP MIBs: RFC1213 MIB-II
RFC1317 RS232-like MIB

Standards Conformances

Regulatory Compliance: FCC Part 15 Class A,
CE Certification Class A
RoHS
Stability Testing: IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Standards: IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-FX
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 854 Telnet
RFC 958 NTP
RFC 1591 DNS (client only)
RFC 1908 SNMPv2c
RFC 2068 HTTP
RFC 2131 DHCP Client
RFC 2732 Format for Literal IPv6 Addresses in URL's
RFC 3315 DHCPv6 Client
RFC 3513 IPv6 Addressing Architecture
RFC 3596 DNSv6
RFC 4443 ICMPv6
EIA/TIA RS232/422/485

Environment

Operating Temperature: -40 ~ 75 degrees C
Storage Temperature: -40 ~ 85 degrees C
Humidity: 5 ~ 95% (non-condensing)
