Introduction

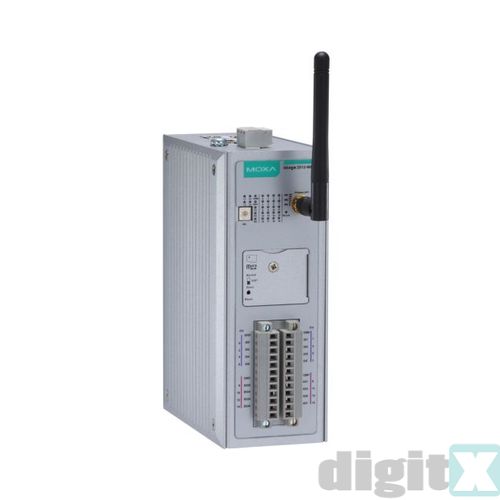

ioLogik 2500 smart Ethernet remote I/O devices feature unique hardware and software designs, making them ideal solutions for a variety of industrial data acquisition applications. The ioLogik 2500’s hardware design includes a 4-port unmanaged Ethernet switch and 2 serial ports, enabling it to seamlessly connect to a variety of field devices.
One of the Ethernet ports can be used to link to 8 daisy-chained ioLogik E1200 expansion modules to provide more than 100 channels. The ioLogik 2500 acts as the “head” unit, with Click&Go Plus logic used to control the entire I/O array. Most importantly, a single IP is all that is required to connect the entire I/O array to your network, providing the perfect solution for industrial field sites that have an insufficient number of IP addresses.
Features and Benefits
- Front-end intelligence with Click&Go Plus control logic, up to 48 rules
- Active communication with MX-AOPC UA Server
- Automatically complement disconnection period data with MX-AOPC UA Logger software
- 4-port unmanaged switch built in for linking to Ethernet devices
- I/O expansion port for daisy chaining up to 8 ioLogik E1200 units
- 3-in-1 serial port: RS-232, RS-422, or RS-485
- Supports SNMP v1/v2c/v3
- Simplifies I/O management with MXIO library for Windows or Linux
- Wide operating temperature models available for -40 to 75°C (-40 to 167°F) environments
Specifications
Memory
microSD Slot: Up to 32 GB (SD 2.0 compatible)
Note: For units operating in extreme temperatures, industrial-grade, wide-temperature microSD cards are required.
Control Logic
Language: Click&Go Plus
Input/Output Interface
Digital Input Channels: 8
Configurable DIO Channels (by software): 8
Buttons: Reset button
Isolation: 3k VDC or 2k Vrms
Digital Inputs
Connector: Screw-fastened Euroblock terminal
I/O Mode: DI or event counter
Sensor Type:
Dry contact
Wet contact (NPN or PNP)
Dry Contact:
On: short to GND
Off: open
Wet Contact (DI to COM):
On: 10 to 30 VDC
Off: 0 to 3 VDC
Points per COM: 8 channels
Counter Frequency: 2.5 kHz
Digital Filtering Time Interval: Software configurable
Digital Outputs
Connector: Screw-fastened Euroblock terminal
I/O Mode: DO or pulse output
I/O Type: Sink
Current Rating: 500 mA per channel
Pulse Output Frequency: 5 kHz (max.)
DIO Output Leakage Current: < 1 mA @ 30 VDC
Over-Current Protection: 1.5 A per channel @ 25°C
Over-Temperature Shutdown: 175°C (typical), 150°C (min.)
Over-Voltage Protection: 45 VDC (typical)
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): 4, 1 MAC address (Ethernet bypass)
Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
Configuration Options: Web Console (HTTP/HTTPS), Windows Utility (IOxpress)
Industrial Protocols: CGI commands, Modbus TCP Client (Master), Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library, RESTful API, SNMPv1/v2c/v3, SNMPv1/v2c Trap
Management: BOOTP, IPv4, SMTP, TCP/IP
MIB: Device Settings MIB
Security: HTTPS/SSL
Time Management: SNTP
LED Interface
LED Indicators:
PWR, RDY, Serial port (P1, P2), Ethernet port (L1 to L4), I/O Channel Status (0 to 15), Wireless connection, Signal Status
Serial Interface
Baudrate: 300 bps to 115.2 kbps
Connector: 8-pin RJ45
Data Bits: 5, 6, 7, 8
Flow Control: None, RTS/CTS, XON/XOFF
No. of Ports: 2
Parity: None, Even, Odd
Serial Standards: RS-232, RS-422, RS-485
Stop Bits: 1, 2
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features
Industrial Protocols: Modbus RTU Client (Master)
WLAN Interface
WLAN Standards:
802.11b/g
802.11i Wireless Security
Modulation Type:
DSSS
OFDM
Frequency Band for EU (20 MHz operating channels): 2.412 to 2.472 GHz (13 channels)
Wireless Security:
WEP encryption (64-bit and 128-bit)
WPA/WPA2-Personal
Transmission Rate:
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Transmitter Power for 802.11b: 18±1.5 dBm @ 1 to 11 Mbps
Transmitter Power for 802.11g:
18±1.5 dBm @ 6 to 24 Mbps
17±1.5 dBm @ 36 Mbps
16±1.5 dBm @ 48 Mbps
16±1.5 dBm @ 54 Mbps
Receiver Sensitivity for 802.11b (measured at 2.437 GHz):
Typ. -97 dBm @ 1 Mbps
Typ. -94 dBm @ 2 Mbps
Typ. -92 dBm @ 5.5 Mbps
Typ. -90 dBm @ 11 Mbps
Receiver Sensitivity for 802.11g (measured at 2.437 GHz):
Typ. -88 dBm @ 6 to 24 Mbps
Typ. -85 dBm @ 36 Mbps
Typ. -75 dBm @ 48 Mbps
Typ. -70 dBm @ 54 Mbps
WLAN Antenna Connector: QMA
Power Parameters
Power Connector: Screw-fastened Euroblock terminal
No. of Power Inputs: 1
Input Voltage: 12 to 48 VDC
Power Consumption:
354 mA @ 24 VDC
735 mA @ 12 VDC
189 mA @ 48 VDC
Physical Characteristics
Housing: Metal
IP Rating: IP30
Dimensions: 61 x 157 x 115 mm (2.4 x 6.18 x 4.53 in)
Weight: 1,265 g (2.79 lb)
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Wiring:
I/O cable, 16 to 26 AWG
Power cable, 12 to 24 AWG
Environmental Limits
Operating Temperature: -10 to 60°C (14 to 140°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: 2000 m
Standards and Certifications
EMC: EN 61000-6-2/-6-4
EMI: CISPR 32, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-5 Surge: Power: 2 kV
Vibration: IEC 60068-2-6
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Hazardous Locations: ATEX, Class I Division 2
Safety: UL 508
Radio: EN 301 489-1/17, NCC
WLAN Standards:
EN 300328
EN 301893
Declaration
Green Product: RoHS, CRoHS, WEEE
MTBF
Time: 400,469 hrs
Standards: Telcordia SR332
Warranty
Warranty Period: 5 years
