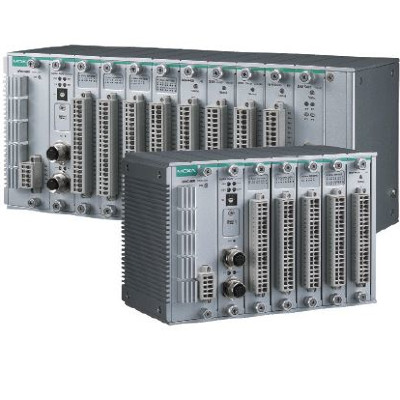

ioPAC 8600-BM005-T MOXA Modular RTU Controllers

ioPAC 8600-BM005-T MOXA

ioPAC 8600-BM005-T

Backplane module with 5 slots, -40 to 75°C operating temperature

Quantità':

Prezzo per pezzo

€ 1.053,92

(IVA esclusa)

€ 1.285,78 (IVA inclusa)

Articoli Prezzo (IVA esc.)
1+ pz.€ 1.053,92
5+ pz. € 1.022,30
10+ pz. € 1.001,22

Prezzo di 1 pz. iva (22%) inclusa: € 1.285,78

Disponibilità: 20 gg lav

Brand: MOXA

SKU: 110337

Model: ioPAC 8600-BM005-T

Bisogno di aiuto?


Certificati

CE Certificato
FCC Certificato
UL Certificato
EN 50121-4 Certificato
EN 50155 Certificato
IEC Certificato
RoHS Certificato

Features and Benefits

  • Modular CPU/Power/Backplane design that supports 85M/86M modules
  • Tag-centric design with ready-to-run services
  • Supports C/C++ and IEC 61131-3 programming languages
  • Compact, lightweight design
  • Supports a redundant power module with dual-power inputs
  • 24 to 110 V DI/O module and universal power input range module
  • Complies with EN 50121-4
  • Complies with all EN 50155 mandatory test items*

*This product is suitable for rolling stock railway applications, as defined by the
 EN 50155 standard.

Introduction

The ioPAC 8600 modular programmable controllers are 100%
modular, giving you the freedom to choose the CPU, power, backplane,
communication, and I/O modules you need for your application. In
addition, the ioPAC 8600 enhances the hardware system architecture
and key features of the ioPAC 8020 and ioPAC 8500 combined, and has
an Ethernet bus on the backplane to support Ethernet switch modules.
The ioPAC 8600 supports the C/C++ and IEC 61131-3 programming
languages and ready-to-run services, including Modbus TCP/RTU,
SNMP, data logging, and email alarms to fulfill different customer
requirements. With active tag and MX-AOPC UA Suite data integration
software, the ioPAC 8600 Series provides a comprehensive solution
for data acquisition and control applications in harsh environments.

Physical Characteristics

Housing: Aluminum
Dimensions:
• 5-slot version: 205.65 x 133.35 x 100 mm (8.1 x 5.25 x 3.94 in)
• 9-slot version: 324.8 x 133.35 x 100 mm (12.79 x 5.25 x 3.94 in)
• 12-slot version: 401 x 132.2 x 100 mm (15.79 x 5.2 x 3.94 in)
Weight (system only):
• 5-slot version: 2560 g (5.64 lb)
• 9-slot version: 3690 g (8.14 lb)
• 12-slot version: 3090 g (6.81 lb)
Mounting: Wall-mounting kit

Environmental Limits

Operating Temperature: -40 to 75°C (-40 to 176°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Shock: IEC 60068-2-27
Vibration: IEC 60068-2-6
Altitude: Up to 2000 m
Note: Please contact Moxa if you require products guaranteed to function
properly at higher altitudes.

Standards and Certifications

Safety: UL 508 (Pending)
EMC: EN 55032/24
EMI: FCC Part 15 Subpart B Class A, CISPR 32
EMS:
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS:
 80 MHz to 1000 MHz: 20 V/m
 1400 MHz to 2000 MHz: 10 V/m
 2000 MHz to 2700 MHz: 5 V/m
 5100 MHz to 6000 MHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge:
 Power: 2 kV (L-PE), 1 kV (L-L);
 Signal: 2 kV (L-PE), 1 kV (L-L)
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF: 100 A/m
Rail Traffic: EN 50155*, EN 50121-4
*This product is suitable for rolling stock railway applications, as defined
 by the EN 50155 standard

Warranty

Warranty Period: 5 years

Disclaimer
