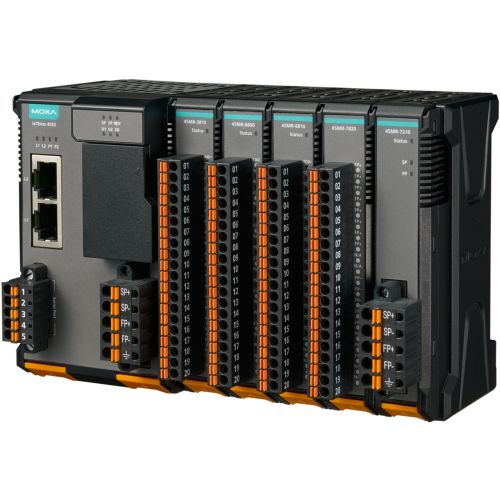

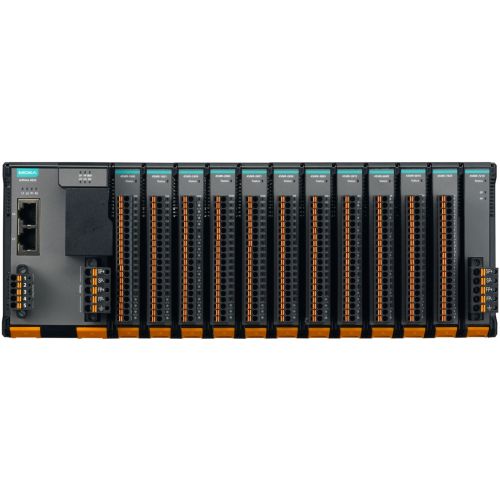

ioThinx 4533-LX
Controller with Cortex-A7 1GHz dual-core CPU, 512MB RAM, 3-in-1 serial port(s), Linux version, -20 to 60°C operating temperature
Introduction
The ioThinx 4530 Series is an advanced modular controller product with a unique hardware design, making it an ideal solution for a variety of industrial data acquisition applications. The ioThinx 4530 Series has a unique mechanical design that reduces the amount of time required for installation and removal, simplifying deployment and maintenance. In addition, the ioThinx 4530 Series supports Moxa Industrial Linux and a built-in Azure/AWS/Alibaba cloud SDK so that users can easily save field data to different cloud accounts.
Specifications
Computer
CPU NXP i.MX7D 1 GHz
OS Linux kernel 4.4 (CIP, PREEMPT_RT), Debian 9
Clock Real-time clock with capacitor backup
DRAM 512 MB DDR3
MRAM 128 kB
Storage Pre-installed 8 GB eMMC (6 GB reserved for the user)
Storage Slot microSD Slots x 1 (up to 32 GB)
Expansion Slots Up to 64
Control Logic
Language C/C++, Python
Computer Interface
Buttons Reset button
Input/Output Interface
Rotary Switch 0 to 9
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) Auto negotiation speed
Magnetic Isolation Protection 1.5 kV (built-in)
Serial Interface
Console Port RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)
No. of Ports 1 x RS-232/422 or 2 x RS-485-2w
Connector Spring-type Euroblock terminal
Serial Standards RS-232/422/485 (software selectable)
Baudrate 1200 bps to 115.2 kbps
Flow Control RTS/CTS
Parity None, Even, Odd
Stop Bits 1, 2
Data Bits 7, 8
Serial Signals
RS-232 TxD, RxD, RTS, CTS, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
System Power Parameters
Power Connector Spring-type Euroblock terminal
No. of Power Inputs 1
Input Voltage 12 to 48 VDC
Power Consumption 1940 mA @ 12 VDC
Over-Current Protection 1 A @ 25°C
Over-Voltage Protection 55 VDC
Output Current 1 A (max.)
Field Power Parameters
Power Connector Spring-type Euroblock terminal
No. of Power Inputs 1
Input Voltage 12/24 VDC
Over-Current Protection 2.5 A @ 25°C
Over-Voltage Protection 33 VDC
Output Current 2 A (max.)
Physical Characteristics
Wiring Serial cable, 16 to 28 AWG
Power cable, 12 to 26 AWG
Strip Length Serial cable, 9 to 10 mm
Power cable, 12 to 13 mm
Housing Plastic
Dimensions 60.3 x 99 x 75 mm (2.37 x 3.9 x 2.96 in)Weight 207.7 g (0.457 lb)
Installation DIN-rail mounting
Standards and Certifications
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Shock IEC 60068-2-27
Vibration IEC 60068-2-6
MTBF
Standards Telcordia SR332
Time 856,064 hrs
Environmental Limits
Operating Temperature ioThinx 4533-LX: -20 to 60°C (-4 to 140°F)
ioThinx 4533-LX-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Altitude Up to 4000 m
Declaration
Green Product RoHS, CRoHS, WEEE
Warranty
Details See www.moxa.com/warranty
Warranty Period 5 years
Package Contents
Device 1 x ioThinx 4530 Series Controller
Cable 1 x 4-pin header to DB9 console port
Installation Kit 1 x terminal block, 5-pin, 5.00 mm
1 x terminal block, 5-pin, 3.81 mm
Documentation 1 x warranty card
1 x quick installation guide
