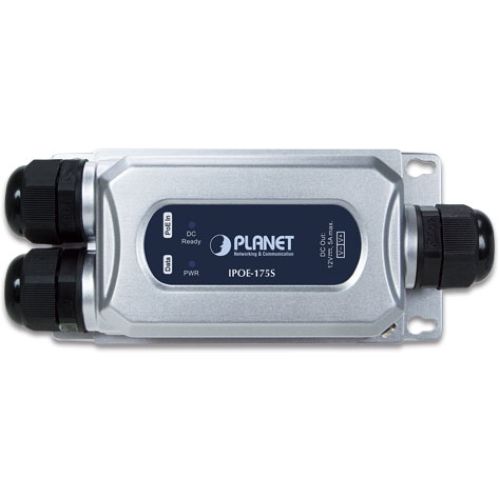

IPOE-175S

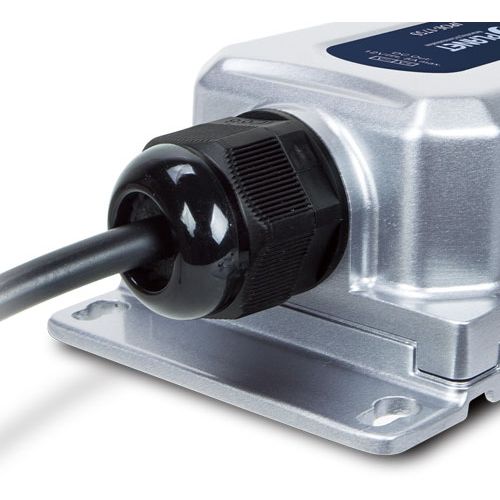

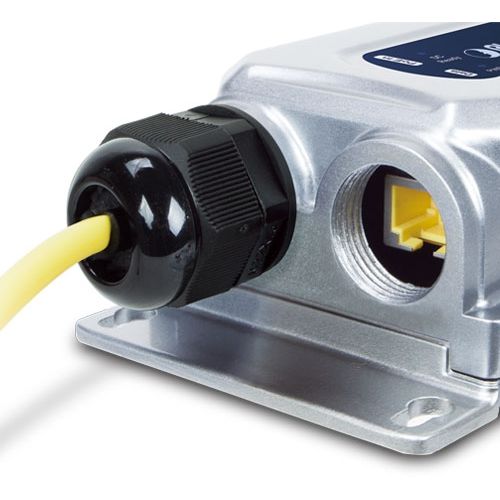

IP67-rated Industrial Single port 10/100/1000T 802.3bt PoE++ Splitter – 12VDC (-40~75 degrees C, IK10 impact protection, 802.3bt type 3 PD, PoH compatible), 3 x waterproof cable glands included
Bisogno di aiuto?
Highly Convenient and Robust Industrial PoE++ Splitter
To fulfill the growing outdoor PoE applications, PLANET IPOE-175S is an Industrial-grade, IP67-rated 802.3bt Power over Ethernet Splitter which delivers the Ethernet digital data and PoE power from an 802.3bt PoE++ PSE (power source equipment) over a UTP cable. It enables to deliver of a maximum of 60-watt 12V DC power output to a non-PoE powered Ethernet device. Also, supports passive 10/100/1000Mbps Ethernet connection and distance up to 100 meters.
The IPOE-175S is designed to work under the operating temperature range from -40 to 75 degrees C. It's an ideal solution to transfer power to a traditional network device with high power demand directly without the need to install additional power outlets, and electrical cabling in the industrial environment.
Applications
802.3bt PoE++ Switch and Splitter Installation
For a place which is hard to find the power inlet, the IPOE-175S separates digital data and power into outputs (12V DC) to non-PoE devices such as laptops, PTZ (pan, tilt & zoom) IP cameras, color touch-screen IP phones, multi-channel wireless LAN access points and other network devices at distance up to 100 meters.
IEEE 802.3bt Injector and Splitter Installation
For a place which is hard to find the power inlet, the IPOE-175 and IPOE-175S can operate as a pair to provide the easiest way to power the above-mentioned Ethernet devices that need high power consumption for any applications designed for large industries, enterprises and communities.
Features and Benefits
Physical Port

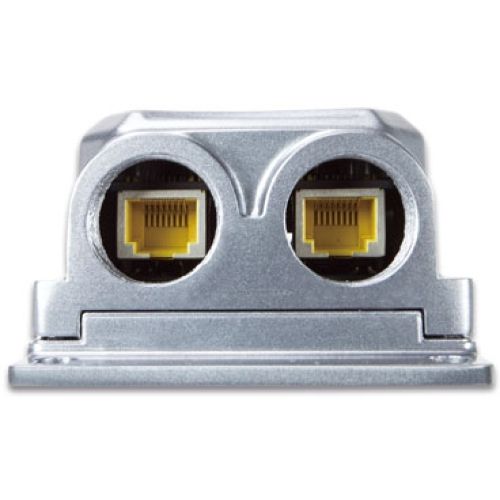

Two 10/100/1000BASE-T Gigabit RJ45 ports
1-port Data + Power input
1-port Data output
One 2-pin terminal block for power output. (12V DC, 5A)
Hardware Specifications
Input Port:
1 x 10/100/1000BASE-T Ethernet with IEEE 802.3bt PoE++
“PoE + Data” in RJ45 port
Output Port:
1 x 10/100/1000BASE-T
“Data” out RJ45 port
Output Power:
Terminal Block 1 x 2-pin terminal block “DC” out port
- Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-)
Data Rate: 10/100/1000Mbps
LED Indicators:
PWR (Green)
DC Ready x 1 (Green)
Input Voltage: 44~56V DC
Power Requirement:
4-pair 802.3at PoE+ and 802.3bt PoE++: 52~56V DC
802.3at PoE+: 48~56V DC
Power Consumption:
Ethernet full loading without DC output:
Full loading with maximum 12V DC, 5A output: 65.6watts
ESD Protection:
Air 8KV DC
Contact 6KV DC
Surge Protection: 6KV
Enclosure: IP67-rated and IK10 aluminum case
Installation: Wall-mount ear
Dimensions (W x D x H):
150 x 43.8 x 72.94 mm
169.85 x 43.8 x 72.94 mm, with cable gland
Weight: 424g
MTBF: >100,000 hours
Network Cable:
10BASE-T: UTP category 3,4, 5 cable (≤100m)
100BASE-TX: UTP category 5,5e cable (≤100m)
1000BASE-T: UTP category 5e,6 cable (≤100m)
