IPOE-176, IP30, Industrial Single-Port 10Gbps 802.3bt PoE++ Injector (95 Watts, UPoE, Legacy mode support, PoE Usage LED, 10/100/1G/2.5G/5G/10Gbps data rate, -40~75 degrees C, dual power input on 48-54VDC)
IPOE-176
IP30, Industrial Single-Port 10Gbps 802.3bt PoE++ Injector (95 Watts, UPoE, Legacy mode support, PoE Usage LED, 10/100/1G/2.5G/5G/10Gbps data rate, -40~75 degrees C, dual power input on 48-54VDC)
SPEDIZIONE GRATUITA
Bisogno di aiuto?
Features
Interface
- 2 Multi-Gigabit Speed RJ45 interfaces
- 1-port Data + Power output
- 1-port Data input
- 1 terminal block for dual DC power input
- Power range: 48-54V DC, supports redundant power input
- 1 PoE mode DIP switch
- Supports Standard / Legacy / Force PoE modes
Power over Ethernet
- Complies with IEEE 802.3af / 802.3at / 802.3bt PoE end-span and mid-span PSE
- Supports PoE++ power output up to 95 watts for the PoE port
- Auto-detection of IEEE 802.3af/at/bt powered devices to prevent damage from incorrect installation
- Real-time monitoring of total PoE power usage via LED indicators
- Supports remote power feeding up to 100 meters
Hardware
- IP30 slim-type metal enclosure suitable for industrial environments
- LED indicators for Power, PoE-in-Use, Legacy Mode, and PoE Power Usage
- Fanless design for silent and reliable operation
Industrial Case and Installation
- Supports DIN-rail and wall-mount installation
- Provides 6KV DC Ethernet ESD protection
- Designed for wide operating temperature range: -40 to 75°C
Applications
Powering Next-Generation Wi-Fi 7 Networks
Combines 10Gbps Ethernet performance with up to 95W PoE++ power, enabling Wi-Fi 7 and high-end wireless access points to unleash full throughput, support high user density, and deliver a truly future-ready wireless experience.
Supporting Industrial and Outdoor Deployments
Ideal for industrial wireless systems, edge computing devices, and outdoor network installations that demand high power, high bandwidth, and long-term reliability, especially in environments where stable operation is critical and AC power is difficult to deploy.
Enabling High-Power PoE for Video and Edge Applications
Perfect for PTZ cameras, high-resolution IP surveillance, and intelligent edge devices, delivering reliable PoE power and high-speed data transmission for smooth video streaming, real-time monitoring, and data-intensive applications.
| Interface | Input Port: 1 × RJ45 10/100/1000/2.5G/5G/10GBASE-T Data In Output Port: 1 × RJ45 10/100/1000/2.5G/5G/10GBASE-T PoE (Data + Power) Out PoE Mode Control: DIP switch for Standard / Legacy / Force modes |
|---|---|
| Data Rate | 10G/5G/2.5G/1G/100/10Mbps |

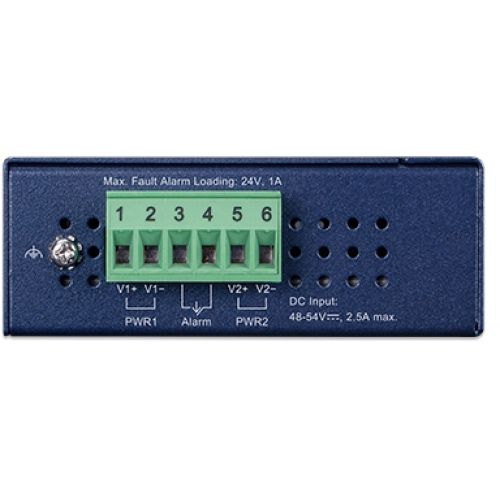

| Connector | Removable 6-pin terminal block Pin 1/2 for Power 1 Pin 3/4 for fault alarm Pin 5/6 for Power 2 |
| Power Requirements | DC 48-54V, 2.5A max |
| Power Consumption | Max. 1.62 watts/ 5.5 BTU (Power on without any connection) Max. 98 watts/ 334.2 BTU (54V DC input, full PoE load) |
| Dimensions (W x D x H) | 32 × 87 × 135 mm |
| Weight | 454g |
| Unit Output Voltage | DC 48-54V |

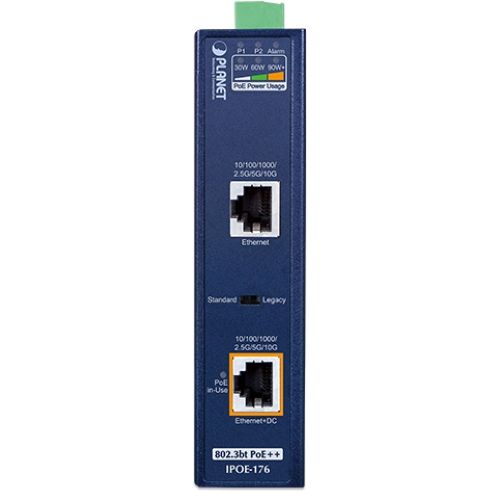

| LED Indicators | System: Power 1 (Green) Power 2 (Green) Alarm (Red) PoE Port: PoE-in-Use × 1 (Amber) PoE Usage: PoE Usage × 3 (Amber, 30W / 60W / 90W) |
| Network Cable | Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A 1G/2.5G: 4-pair UTP Cat 5e/Cat 6/Cat 6A/ Cat 7 5G: 4-pair UTP Cat 6/Cat 6A/Cat 7 10G:4-pair UTP Cat 6A/Cat 7 |
| PoE Standard | IEEE 802.3af/at/bt PSE |
|---|---|
| PoE Power Supply Type | End-span + Mid-span |
| Power Pin Assignment | Pair 1 End-span: 1/2 (-), 3/6 (+) Pair 2 Mid-span: 4/5 (+), 7/8 (-) |
| PoE Mode | Standard mode Legacy and Force modes |
| PoE Power Output Budget | 95W (IEEE 802.3bt Type 4) |
| PoE Power Output | DC 54V input: Max. 95W @1m cable Max. 71W @100m cable DC 48V input: Max. 94W @1m cable Max. 67W @100m cable Actual available power may vary depending on cable length and DC input voltage |
| No. of Devices that can be powered | 1 |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3an 10GBASE-T IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt 4-pair Power over Ethernet (Type 4) |
|---|---|
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Operating Temperature | -40 ~ 75 degrees C |
|---|---|
| Storage Temperature | -40 ~ 85 degrees C |
| Operating Humidity | 5 ~ 90%, relative humidity, non-condensing |
| Storage Humidity | 5 ~ 90%, relative humidity, non-condensing |
