ISW-621T
4+2 100FX Port Multi-mode Industrial Ethernet Switch - 2km (-40~75 degrees C operating temperature)
Bisogno di aiuto?

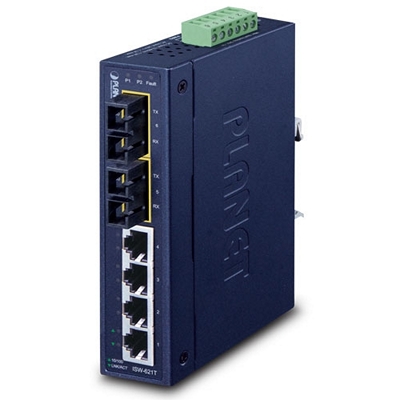

Highly Convenient and Feasible Industrial Robust Switch
PLANET has upgraded two models named ISW-621T and ISW-621TS15 for use in environments with wide operating temperature. The capital ‘T’ (ISW-621T and ISW-621TS15) shown in the model names means that they can support and operate under WIDE-TEMPERATURE environment ranging from -40 up to 75 degrees C. As we know the temperature in many places and countries of the world are lower than -10 degrees C, these two new models, ISW-621T and ISW-621TS15, will be the right products for Transportation, Manufacturing, Security and Surveillance network deployments in those harsh environments. The ISW-621T / ISW-621TS15 also provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets.
Flexibly Extendable Distance
They(the ISW-621T and ISW-621TS15) each include four 10/100Base-TX auto-negotiation ports and two 100Base-FX ports. The ISW-621T is equipped with 100Base-FX multi-mode SC interfaces for transmission distance up to 2km while the ISW-621TS15 is equipped with 100Base-FX single-mode SC interfaces for transmission distance up to 15km. The two 100Base-FX ports provide more flexibility for Transportation, Manufacturing, Security and Surveillance with distance extension without any limitation, making the ISW-621T / ISW-621TS15 suitable either for long distance (ISW-621TS15) or short distance (ISW-621T) network deployment.
Easy Installation and Wide Range of Power Usages

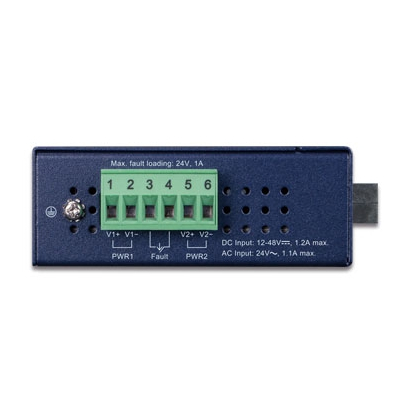

The ISW-621T and ISW-621TS15 are designed with a compact case that allows either DIN rail or panel mounting for the efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.
Applications
Industrial Switch for High Performance Data Collection and Forwarding
The ISW-621T and ISW-621TS15 are equipped with four 10/100Mbps ports offering auto MDI / MDIX feature, and two 100Base-FX optic-fiber SC interfaces providing 1.2Gps non-blocking switch fabric and the 2K MAC address table so that they can perform wire-speed packets transfer without risk of packet loss. The ISW-621T / ISW-621TS15, which come in the slim type IP30 metal case, is ideal for the most Heavy Industrial demanding environments.
Features and Benefits
Physical Port

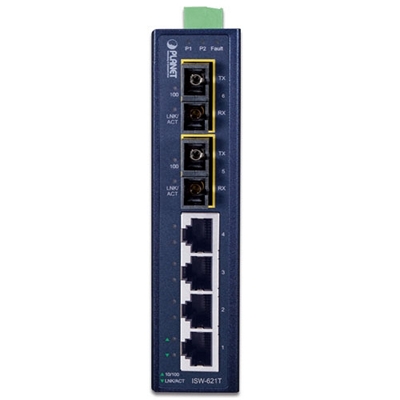

• 4-port 10/100Base-TX RJ-45 with auto MDI/MDI-X function for ISW-621T series
• 2-port 100Base-FX interface on ISW-621T for up to 2km (multi-mode fiber 62.5/125μm, 50/125µm) transmission distance
• 2-port 100Base-FX interface on ISW-621TS15 for up to 15km (single-mode fiber 9/125µm) transmission distance
Layer 2 Features
• Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Ethernet standard
• Supports auto negotiation and 10/100Mbps half / full duplex mode for each copper port
• High performance Store and Forward architecture
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• Backplane (Switching Fabric): 1.2Gbps
• Integrated address look-up engine, supporting 2K absolute MAC addresses
• 1Mbit on-chip frame buffer
• Automatic address learning and address aging
• CSMA/CD Protocol
Industrial Case / Installation
• IP30 metal case / protection
• DIN rail and wall mount design
• 12 to 48V DC, redundant power with polarity reverse protection and connective removable terminal block for master and slave power
• Supports EFT protection 6KV DC for power line
• Supports 6KV DC Ethernet ESD protection
• -40 to 75 degrees C wide operating temperature
Specifications
Hardware Specifications
Copper Interface:
Ports:
4 x 10/100Base-TX, auto negotiation, auto-MDI / MDI-X
Cable:
10Base-T: 2-pair UTP Cat. 3, 4, 5 cable (100meters, max.)
100Base-TX: 2-pair UTP Cat. 5 cable (100meters, max.)
Optical Interface:
Port: 2 x 100Base-FX
Cable: 50/125μm / 62.5/125μm fiber
Mode: Multi-mode
Distance: 2km
Wavelength: 1310nm
Launch Power: Max. -14dBm, Min. -20dBm
Receive Sensitivity: -32dBm
Max. Input Power: -14dBm
Dimensions (W x D x H): 135 x 97 x 32 mm
Weight: 442g
Power Requirements: 12~48V DC
Redundant power with polarity reverse protection function
Power Consumption / Dissipation: Max. 16 watts / 54 BTU
Installation: DIN rail kit and wall mount ear
Alarm: Provides one relay output for power failure
Alarm relay current carry ability: 1A @ DC 24V
Switch Specifications
Switch Processing Scheme: Store-and-Forward
Address Table: 2K entries
Buffer: 1Mbit
Flow Control: Back pressure for half duplex,
IEEE 802.3x pause frame for full duplex
Switch Fabric: 1.2Gbps
Throughput (Packet Per Second): 0.89Mpps @ 64Bytes
Standards Conformance
Standards Compliance: IEEE 802.3 Ethernet, 10Base-T
IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX
IEEE 802.3x full-duplex Flow Control
Temperature: Operating: -40~75 degrees C
Storage: -40~85 degrees C
Operating Humidity: Operating: 5~90%
Storage: 5~90% (non-condensing)
Regulation Compliance: FCC Part 15 Class A, CE
Stability Testing: IEC60068-2-32(Free fall)
IEC60068-2-27(Shock)
IEC60068-2-6(Vibration)
